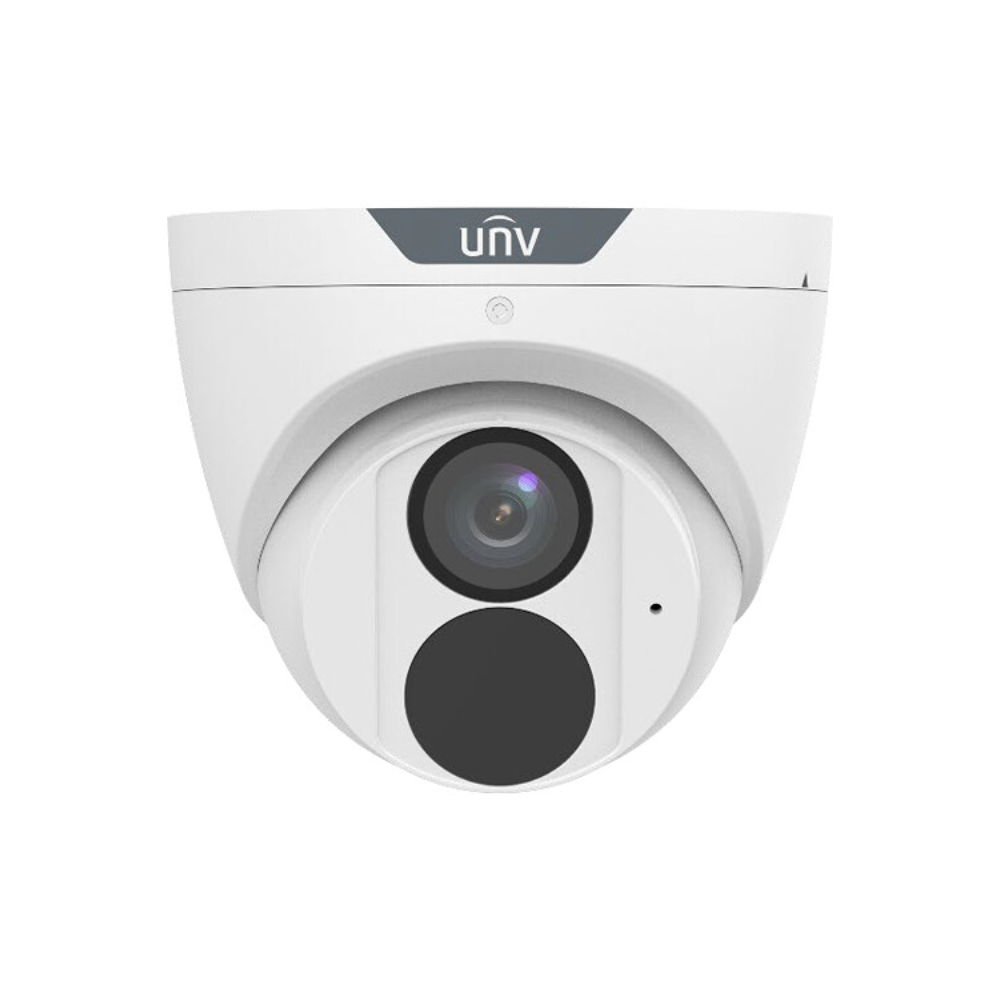

Uniview IPC3618SS-ADF28KM-I0
Uniview IPC3618SS-ADF28KM-I0 Prime Series AI H265 4K 8MP PoE IP EXIR (30m IR) 120dB True-WDR Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens – Built-in Audio Mic
Uniview IPC3618SS-ADF28KM-I0 Prime Series AI H265 4K 8MP PoE IP EXIR (30m IR) 120dB True-WDR Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens – Built-in Audio Mic
Key Features :-
- High quality image with 8 MP, 1/2.7″ CMOS sensor
- 8MP (3840 × 2160) @ 20 fps; 5MP (3072 × 1728) @ 30/25 fps; 4MP (2560 × 1440) @ 30/25 fps; 1080P (1920 × 1080) @ 30/25 fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
- Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
- Intelligent people flow counting and crowd density monitoring
- 120 dB true WDR technology enables clear image in strong light scene
- Supports 9:16 corridor mode
- Built-in mic
- Smart IR, up to 30m (98.4 ft) IR distance
- MicroSD, up to 512 GB
- IP67 protection
| IPC3618SS-ADF28KM-I0 | IPC3618SS-ADF40KM-I0 | |||||||
| Camera | ||||||||
| Sensor | 1/2.8″, 8.0 megapixel, progressive scan, CMOS | |||||||
| Lens | [email protected] | [email protected] | ||||||
| Iris | Fixed | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 86.9(285.1ft) | 34.8(114.0ft) | 17.4(57.0ft) | 8.7(28.5ft) | ||||
| 4.0 | 124.1(407.3ft) | 49.7(162.9ft) | 24.8(81.5ft) | 12.4(40.7ft) | ||||
| Field of View (H) | 96.6° | 86.5° | ||||||
| Field of View (V) | 50.8° | 48.2° | ||||||
| Field of View (D) | 125.6° | 106.4° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~75° | Rotate: 0°~360° | |||||
| Min. Illumination | Colour:0.0025lux (F1.6, AGC ON) 0 lux with IR |
|||||||
| WDR | 120dB | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| S/N | >56dB | |||||||
| IR Range | Up to 40m (131 ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream: 8MP(3840*2160),Max 20fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
|||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| ROI | Supported | |||||||
| Video stream | Triple streams | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas(8 blacks/8 mosaics) | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Intelligent | ||||||||
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | |||||||
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Audio detection, Tampering alarm | |||||||
| General Function | Watermark, IP Address Filtering , Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||||
| Exception Detection And Statistics | Object Removed, Object Left Behind | |||||||
| Audio | ||||||||
| Audio Compression | G.711U,G.711A | |||||||
| Two-way Audio | N/A | |||||||
| Suppression | Supported | |||||||
| Sampling Rate | 8KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 256 GB | |||||||
| Network Storage | ANR,NAS(NFS) | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
| Client | EZStation EZLive Ezview |
|||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||
| Interface | ||||||||
| Audio I/O | N/A | |||||||
| Alarm I/O | N/A | |||||||
| Built-in Mic | Supported | |||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
| General | ||||||||
| Power | DC12V(±25%), PoE(IEEE 802.3af) | |||||||
| Power consumption: Max 4W | ||||||||
| Dimensions (Ø x H) | Φ110.5 x 94.1mm(Φ4.35’’ x 3.7’’) | |||||||
| Weight | 0.43kg(0.95lb) | |||||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Storage Environment | -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge protection | 2KV | |||||||
