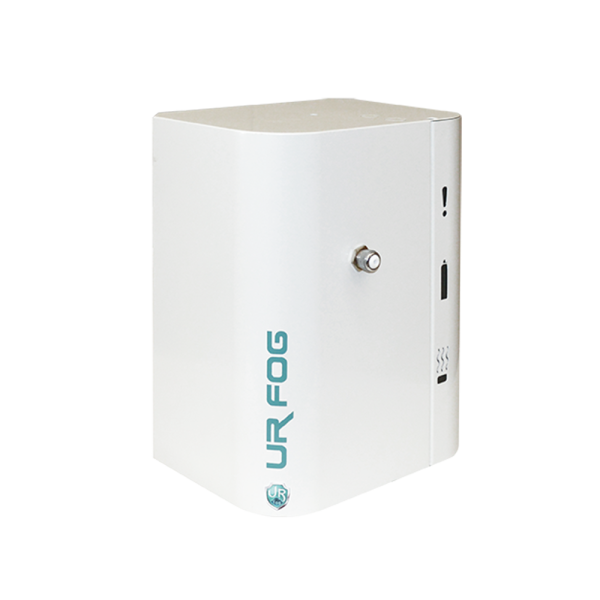

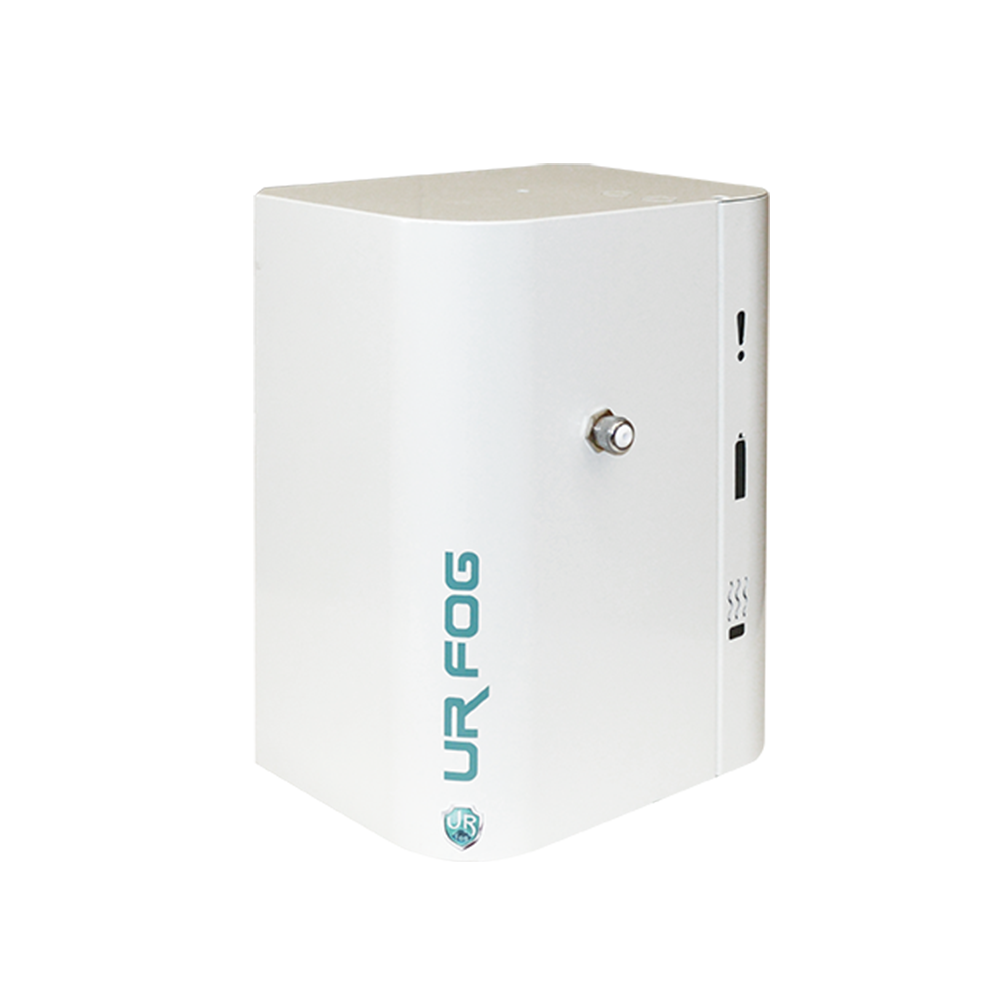

UrFog Fast 03 2C PRO PLUS

Please login for price

UrFog Fast 03 2C PRO PLUS Fog Machine – Up to 200m3 (Zero visibility)

Availability: Available on backorder SKU: Fast-03-2C-PRO-PLUS Category: Tags: , , ,

Description

Features :-

  • Up to 200m3 (Zero visibility)
  • Two 600ml cylinders included
  • Shot programmable in seconds
  • Vertical / Horizontal installation
  • Three inputs – arming, shooting and PIR sensor validation
  • Four outputs – empty cylinder, fault, tamper and shot confirmation
  • Adjustable nozzle
 GENERAL SPECIFICATIONS
WEIGHT OF THE FOG MACHINE About 11 kg
WEIGHT WITH PACKAGING About 13 kg
UNITS ON ONE PALLET 100X120 24
DIMENSION OF THE MACHINE 27,5×23,0xh44,0
DIMENSION OF THE PACKAGING 37,0×25,0xh47
COLORS White/optional colors
WORKING TIME WITHOUT MAINS POWER About 2 hours
HEAT UP TIME FROM COLD about 70 minutes
VERTICAL OR CORNER MOUNTING yes
SERIAL/USB PORT FOR MONITORING yes
NOZZLE TAMPER yes
SERIAL BUS FOR STANDARD PROTOCOL yes
ALARM KIT optional
 FOG GENERATOR
NEW HEATING SYSTEM PLUS yes
MAX FOG SINGLE SHOT 1,5 M VISIBILITY up to 300 m3
MAX FOG SINGLE SHOT ZERO VISIBILITY up to 200 m3
MAX SECONDS OF FOG 25 sec
MAX FOG EMISSION WITH FULL FOG TANK 1800 m3
NUMBER OF FLUID TANK 2
FLUID TANK CAPACITY 2 x 600 ml
SHOOTING SPECIFICATION programmable in seconds
CYLINDER MODEL A 01-AH01
CYLINDER INCLUDED 2
DOUBLE FOG TANK ADVANTAGE YES
 ELECTRICAL SPECIFICATIONS
POWER SUPPLY 220 OR 110V
AVERAGE POWER CONSUMPTION 37W
BACK UP BATTERY YES
OPTIONAL DEMO/ANTIROBBERY KIT YES
INPUTS WIRED ARMING AND SHOOTING OUTPUTS WIRED YES
STANDARD COMMUNICATION PROTOCOL PIR INPUT YES
REAL SHOOT CONFIRMATION OUTPUT YES
BATTERY CHARGER YES
POWER SUPPLY optional
2 Ah BATTERY optional
 STANDARDS
COMPLIES WITH EUROPEAN CE YES
FOG FLUID IS CERTIFIED YES
MEETS EUROPEAN STANDARD YES

UrFog Presentation Video
