Utepo UTP-PDA01-B13W

Please login for price

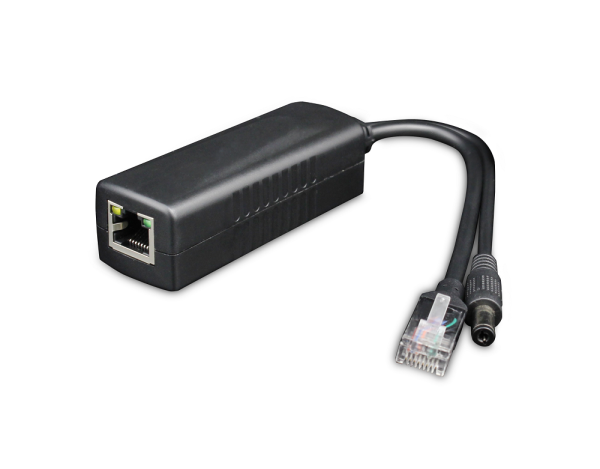

Utepo UTP-PDA01-B13W Compact Slimline PoE Splitter – Gets PoE Signal (From PoE Injector / Switch) and Splits it in to Standard Ethernet LAN Signal with a 12VDC Power Output.

SKU: UTP-PDA01-B13W Categories: , Tags: , ,

Description

Utepo UTP-PDA01-B13W Compact Slimline PoE Splitter – Gets PoE Signal (From PoE Injector / Switch) and Splits it in to Standard Ethernet LAN Signal with a 12VDC Power Output.

Utepo UTP-PDA01-B13W PoE Splitter is compliant with IEEE802.3af standard, which can split data and power from PoE signal. It perfect matches camera enclosure and can split Ethernet and power from Ethernet cable for these device which can not support PoE. It can work with standard PoE Switch or PSE device, compatible with mid-span and end-span, output 12V/1A power by DC terminal, It is widely used in security surveillance and network project.

Features :-

  • Excellent insulation circuit that gives increased protection from ESD and interference
  • Power PoE injectors or PoE switches
  • IEEE802.3af standard
  • Output 12V / 1A, terminal screws
  • Compact, easy to install, wall mounting support included
  • Plug and Play – no settings SPECIFICATIONS
  • Power POE: Injector Switch PoE
  • Power supply: 36V-57V PoE; Output voltage: 12V DC, 14,5W max.
  • Dimensions: 82mm × 61mm × 25mm
  • Weight: 123g

Item Description
PoE Protocol IEEE802.3af
Input PoE 48V-55V
Output DC 12V, ≤13W
Ethernet Port 1×RJ45
Transmission Speed 10/100Mbps
Transmission Medium Cat5/5e/6 Standard Network Cable
Status LED Indicator Yellow:PoE
Green:DC OUT
Mechanical Dimension(L×W×H) 124mm×28mm×25mm
Material Plastic
Color Black
Weight 47g

Utepo UTP-PDA01-B13W Data-sheet
