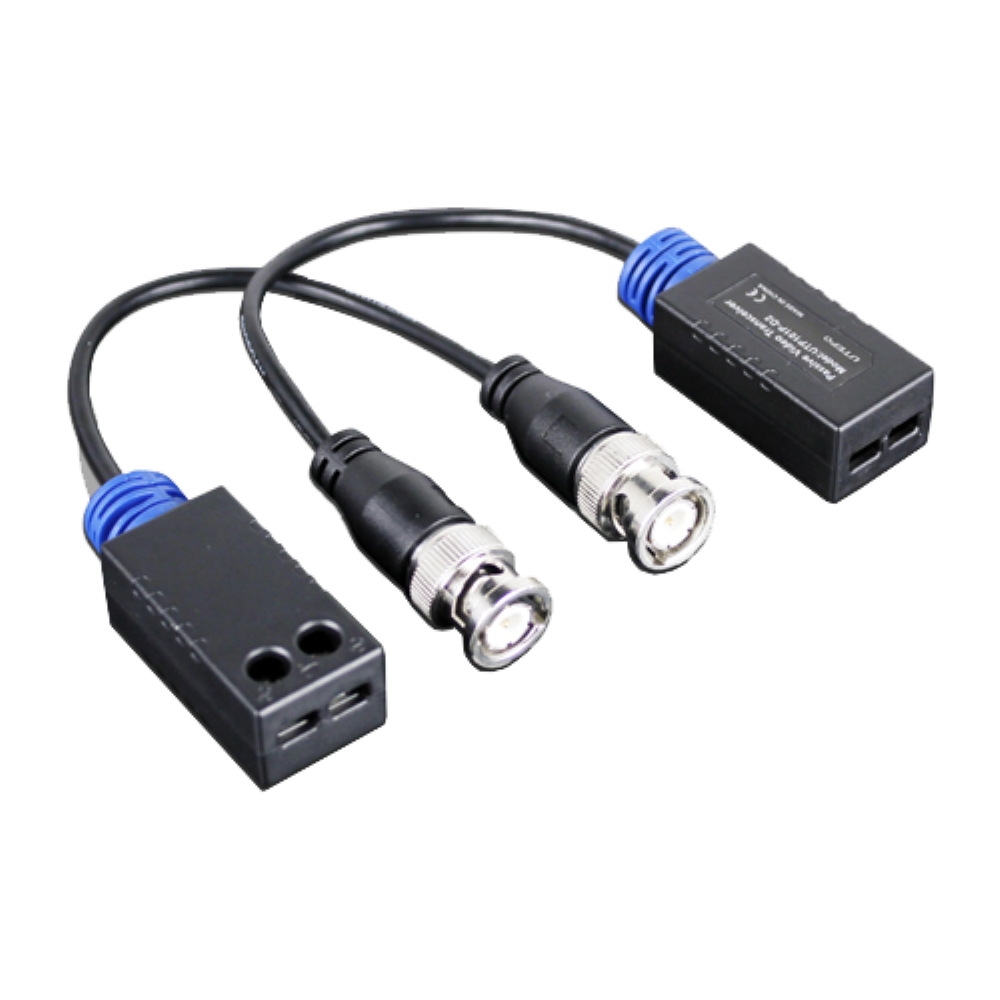

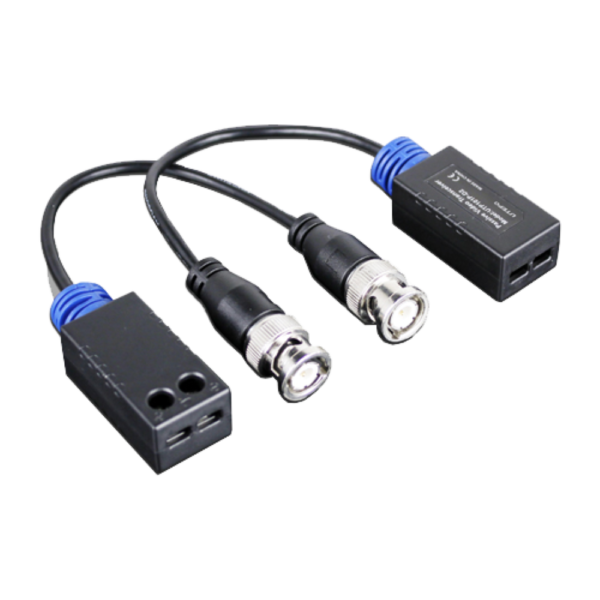

Utepo UTP101P-D2 Single Channel Passive Video Balun – Supplied as a Pair

SKU: UTP101P-D2 Categories: , Tags: ,

Description

Description :-

UTP101P-D2 is a single channel passive video transceiver. Use CAT5/5e/6 UTP cable as transmission medium,can realize real-time transmit 1 channel color or PAL, NTSC, SECAM composite video signals. In practical project , the device can work together as transmitter or receiver ,and it can also work together with UTP1XXP and UTP1XXAR series passive or active video UTP transmitters. It features long distance transmission , good transmission effect, strong anti-interference. Widely used in security, teaching industry and other complex system environment.

Features :-

  • Power: no power required, simplified project wiring
  • Transmission effect: plug n’ play, real-time transmit CCTV video signal, video is clear and stable
  • Transmission distance: working with passive transceiver is 300m; working with active transceiver is 1200m
  • Safety: anti-interference, super lighting protection, anti-static
  • Appearance design: ABS outer shell, compact volume convenient to use in outdoor water-intensive project
  • Installation: BNC-M connector , screw push-terminal wire, wired more stable and reliable

Item

Specification

Properties

Transmission signal

1 channel

Transmission distance

300m(working with passive product)
1500m(working with active product)

Video transmission properties and port

Coaxial video connector

BNC-M

Twisted-pair video connector

Screw Interface

Compatible Format

PAL、NTSC、SECAM

Signal transmission band

0-6MHz(-3db)

Anti-interference

>60db

Coaxial video interface protection

4KV(common-mode)
Per:IEC61000-4-5

Twisted-pair video transmission interface protection

2KV(different-mode),4KV(common-mode)
Per:IEC61000-4-5

Protection

ESD

1a contact discharge electricity level 3
1b air discharge electricity level 3
Per:IEC61000-4-2

Reliable

MTBF

>10000H

Physical Properties

Size(L*W*H)

39mm×20mm×15mm

Shell

ABS

Color

Black

N.W

28g

Environmental

Operating Temperature

-10-55℃

Storage Temperature

-20-70℃

Humidity

0-95% (non-condensing)

Package

Package materials

Carton

Package volume

80mm×35×23mm
