Utepo UTP101P-HD6
Please login for price

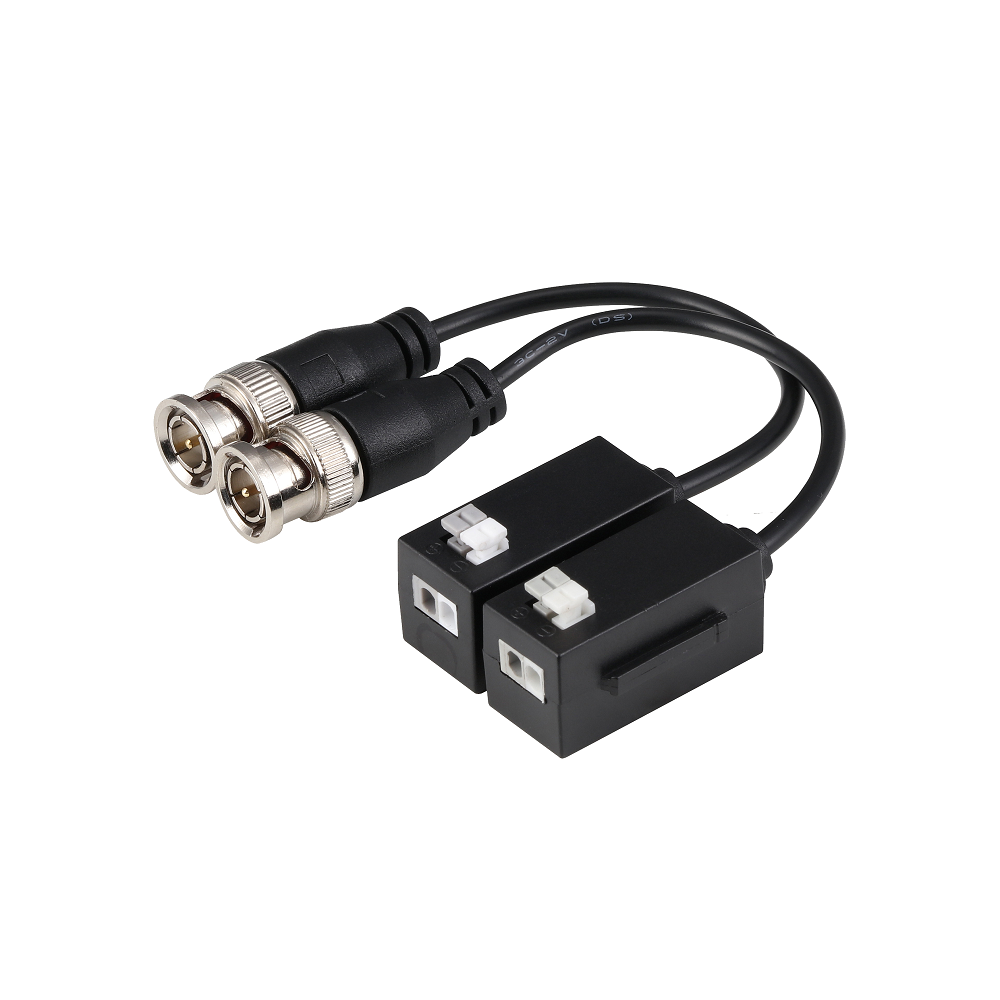

Utepo UTP101P-HD6 4K passive Analog HD Video UTP Transceiver (Balun) – Supplied as a Pair
- Description
- Specifications
- Product Enquiry
Description
Utepo UTP101P-HD6 4K passive Analog HD Video UTP Transceiver (Balun) – Supplied as a Pair
Features :-
- New design, support splicing, push-button
- Plug-and-play; Real-time and stable HDCVI / HDTVI / AHD / Analog transmission result
- 500m matches the passive transceiver; 650m matches active transceiver
- Excellent anti-interference，surge protection, ESD protection
- ABS (Acrylonitrile-Butadiene-Styrene) shell; built-in extended coaxial cable, convenient for intensive engineering projects
- Bayonet Nut Connector (BNC); pushing UTP terminal
| Item | UTP101P-HD6 |
| Video Port | 1 channel |
| Recommend Transmission Distance (with passive product) |
HDCVI-720P:300m;1080P:250m; |
| 4MP:200m;8MP:150m | |
| HDTVI-720P:200m;1080P:250m; | |
| 3MP:250m; | |
| AHD-720P/960P: 200m; 1080P:300m | |
| 4MP: 200m;5MP: 150m | |
| Analog Video:500m; | |
| Coaxial Video Port | Male BNC |
| Twisted-pair Video Port | 2-channel pushing terminal |
| Video Compatibility | HDCVI/HDTVI/AHD, PAL/NTSC/SECAM Video |
| Bandwidth | 0～75MHz |
| Surge Protection | 2KV Per: IEC61000-4-5 |
| ESD | Level 3,1a Contact Discharge, |
| Level 3,1b Air Discharge | |
| Working Temperature | -10～55℃ |
| Storage Temperature | -40℃~85℃ |
| Humidity（Non-condensing） | 0～95% |
| Out Shell | ABS |
| Weight | 20g |
