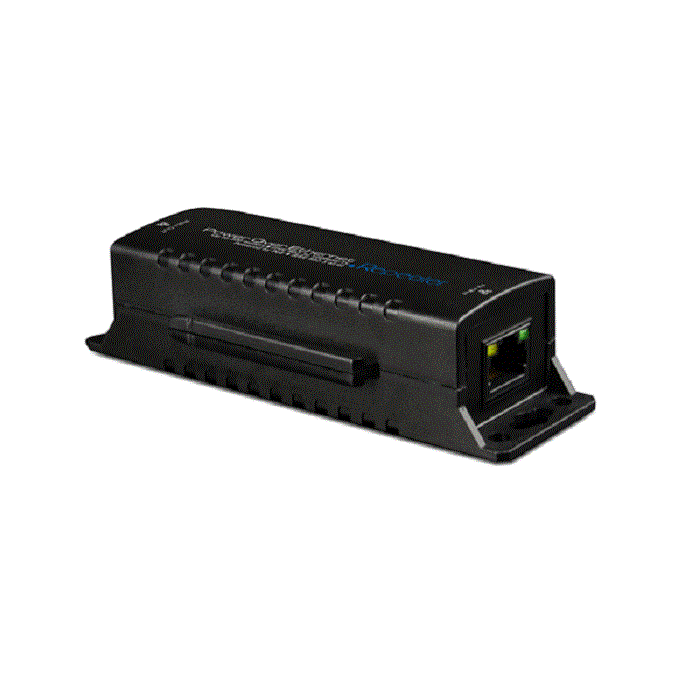

Utepo UTP3-VER01-POE Single-Channel Slimline PoE / Ethernet Repeater – Supplied as a Single Unit – Extends PoE Distance Up to 100m

SKU: UTP3-VER01-POE Categories: , Tags: , , , ,
Utepo UTP7201GE-PSE30 30W PoE+ 802.3at Gigabit Power over Ethernet (PoE) Injector; Output power up to 30W

Utepo UTP7201GE-PSE30

Utepo UTP7201GE-PSE30 30W PoE+ 802.3at Gigabit Power over Ethernet (PoE) Injector; Output power up to 30W

Temporarily unavailable

Utepo UTP7201GE-PSE30 30W PoE+ 802.3at Gigabit Power over Ethernet (PoE) Injector; Output power up to 30W

Utepo UTP7201GE-PSE60

Utepo UTP7201GE-PSE60 60W Hi-PoE Gigabit Power over Ethernet (PoE) Injector; Output power up to 60W

Temporarily unavailable

Warranty: 2 Years

Add to quote
Add to wishlist

Description

Features :-

  • Each piece can extend data and power signal for up to 100m and cascade connection (with up to 3 units) up to 400m in total
  • Comply with IEEE 802.3u, 100Base-TX and IEEE 802.3af/at
  • 1 x RJ45 input port (POE)
  • 1 x RJ45 output port (POE)
  • Power over Ethernet POE 802.3af / at (30W)
  • Over-voltage protection
  • low consumption
  • powered from POE (no external power supply required)
  • Real-time, 0 time-delay, no-store & forward technology
  • Good ESD and surge protection ability
  • Plug-and-play, no software and agreement transformation necessary
  • Built-in splicing slot on both sides, magnetic attraction and hanger on the bottom enables multiple installation methods: wall-mounting, splicing and adsorption

Item Description
Power Power Supply PoE
Consumption ＜ 3 Watt
Network Port Port PoE IN：100Mbps、PoE In port PoE OUT：100Mbps、PoE Output port
Transmission distance Max:  400m

(Please reference to the diagram I to distinguish the relation between power consumption and transmission distance)
Media Cat5e/6
PoE standard Supports IEEE802.3af、IEEE802.3at standards
PoE Power supply Media-span and End-span
Ethernet Exchange Standard IEEE802.3u 100BASE-TX
Delay ＜20us
Status Indicator LED PoE IN port and PoE OUT port：

RJ 45 Yellow LED indicate PoE status； Green LED indicate Ethernet status.
Protection ESD  Lever III  1a  Contact Discharge

Lever III   1b Air Discharge

Per：IEC61000-4-2
Surge Protection Lever III    Per：IEC61000-4-5
Environment Working Temperature -10℃~55℃
Storage Temperature -40℃~85℃
Humidity 0~95%
Mechanical Size(L×W×H) 113mm×45.5mm×29mm
Material ABS
Color Black
Weight(Gross) 58g

Additional information

Weight 0.6 kg
Dimensions 12 × 6 × 4 cm

Utepo UTP7201GE-PSE60

Weight 0.2 kg
Dimensions 17 × 6 × 7 cm
UTP3-VER01-POE

Utepo UTP3-VER01-POE Data-sheet
