Utepo UTP3-VMC01-POE

Please login for price

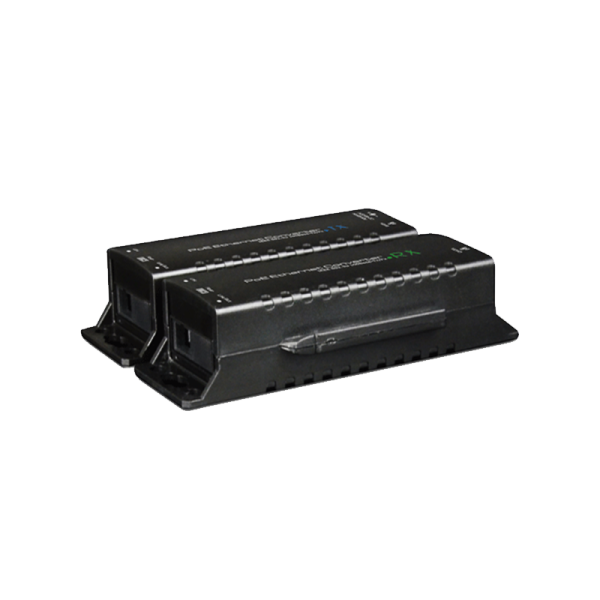

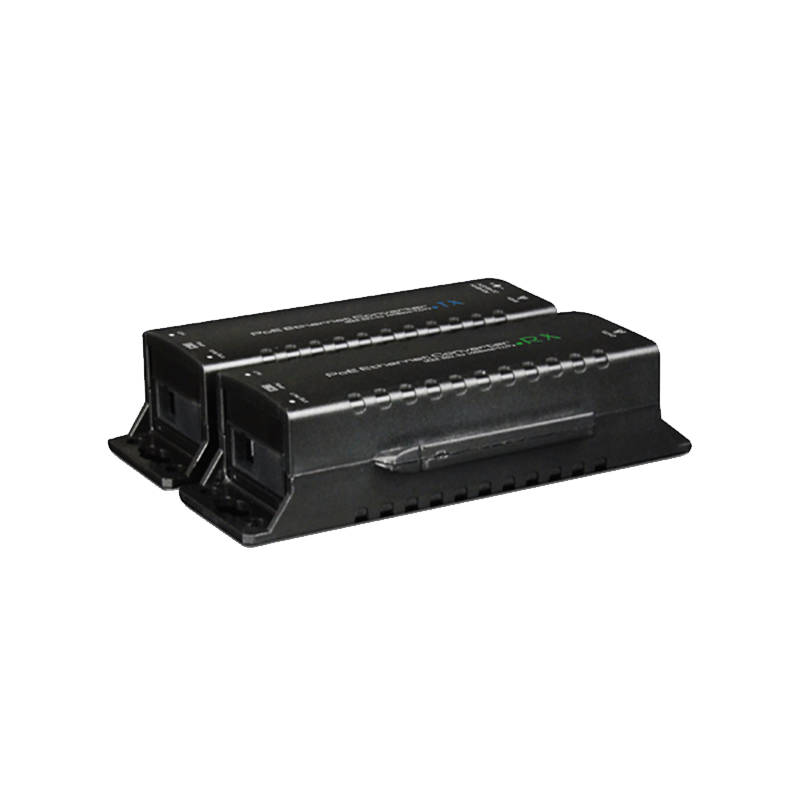

Utepo UTP3-VMC01-POE PoE Fiber Media Converter – Supplied as a pair

SKU: UTP3-VMC01-POE Categories: , Tags: ,

Description

Utepo UTP3-VMC01-POE PoE Fiber Media Converter – Supplied as a pair

Description :-

UTP3-VMC01-POE is a fast-speed media converter which consists of SC and IPC units. And it transforms signals between the Media of network cable and optic fiber cable, and the signal transmission distance up to 20km. It is particularly suitable for multimedia transmission without delay which can support IEEE802 3u 100Base-TX/FX and IEEE802.3 af/at standard. The structure designing of built-in splicing slot on both sides and magnetic attraction as well as hanger on the bottom enables multiple installation methods of wall-mounting,splicing and adsorption. So it is a cost-effective choice for the HD network surveillance system, transmission and application of the IOT, as well as upgrading and renovating projects.

Application :-

Model UTP3-VMC01-PoE(SV Unit) UTP3-VMC01-PoE(IPC Unit)
Network port 1* 10/100Base-Tx 1* 10/100Base-Tx
Fiber Port 1*9, SC 1*9, SC
wavelength T1550/R1310nm T1310/R1550nm
Transmission distance 20km
Network standard IEEE802.3 、IEEE802.3u
 Delay <20us
PoE Standard 802.3af/at (PD) 802.3af/at (PSE)
PsE  Type End-span
Power Pin Assignment 1/2( ),3/6(-)
PoE Power Output ≤30W
Lightning protection 2KV    Execute:IEC61000-4-5
ESD 6KV     Contact discharge

8KV       Air discharge

Execute:IEC61000-4-2

Power Supply PoE DC 48-57V
Power Dissipation <5W
Work temperature -10℃~55℃
Storage temperature -40℃~85℃
Humidity(Non-condensin) 5%-95%
Dimension(L×W×H) 113mm×45.5mm×29mm
Weight 58g
EMC/Safety CE、FCC、ROHS

Utepo UTP3-VMC01-POE Data-sheet

Utepo UTP3-VMC01-POE User Manual
