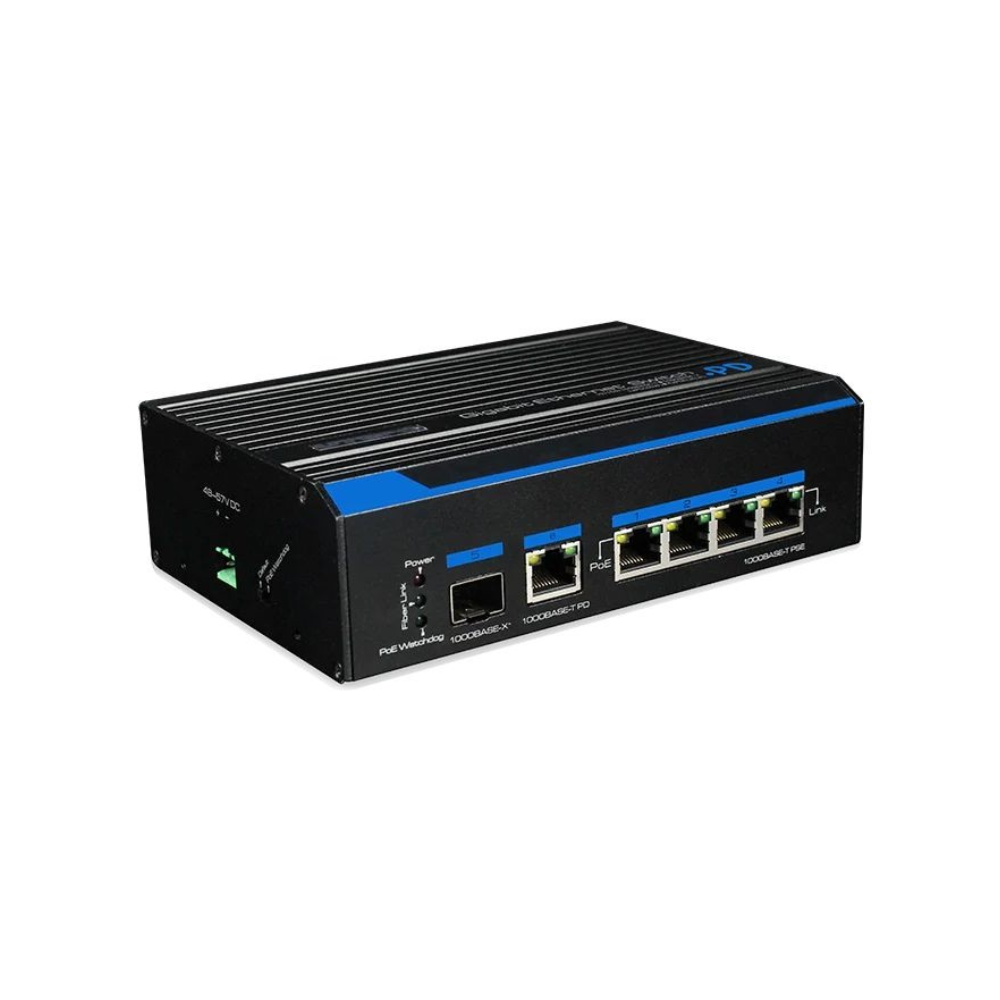

Utepo UTP7204GE-PD Industrial Full Gigabit PoE-Powered PoE Switch – 1* GbE PoE Input Port + 4* GbE PoE Output Ports + 1* Gb SFP Slot – 120w PoE Budget – PoE Watchdog

Features :-

  • Provides 1*10/100/1000Base-T PoE Input Port(60W PoE input)
  • Provides 4*10/100/1000Base-T PoE out Ports(30W PoE output, support IEEE802.3af/at)
  • Provides a 1000Base-X SFP port
  • Supports PoE watchdog (Detect POE device when it is frozen, reboot automatically)
  • Redundant power design, support power hot backup
  • Support -40 to +75°C working temperature
  • Support 6KV surge protection, 8KV/15KV ESD protection

Utepo Product-Link -> UTP7204GE-PD

Model UTP7204GE-PD
Downlink Ports 4* 10/100/1000Base-T 30W PoE output RJ45(IEEE802.3af/at PSE)
Uplink Ports 1*1000Base-X SFP slot
1*10/100/1000Base-T 60W PoE input RJ45(IEEE802.3 BT/at/at PD)
Standard and Protocols IEEE802.3 , IEEE802.3u, IIEEE802.3ab, IEEE802.3z
IEEE802.3af/at
Switching Capacity 12Gbps
Packet Forwarding Rate 8.9Mpps
Forwarding Modes Store and Forward
Packet Buffer 1Mbit
MAC Address Table 8K
Downlink PSE Ports(1 to 4) IEEE 802.3af/at,end-span, single port≦30W
Port 6 PoE input Compatible with af(15W), at(30W), 60W(maxim and microsemi solution)
DC Power Input 48~57V DC
PoE Budget If PD power input, PoE output ≦50W;
If Power adaptor DC input, PoE output:120W max.
Surge Immunity 6KV  Execute: IEC61000-4-5
ESD Immunity 8KV Contact discharge
15KV Air discharge
Execute: IEC61000-4-2
Power Consumption <5W
Operating Temperature -40℃~75℃
Storage temperature -40℃~85℃
Humidity(Non-condensing) 5%-95%
Dimension(L×W×H) 163mm×110mm×46mm
Weight 540g
Certification CE, FCC, ROHS
