Utepo UTP7301EPOC

Please login for price

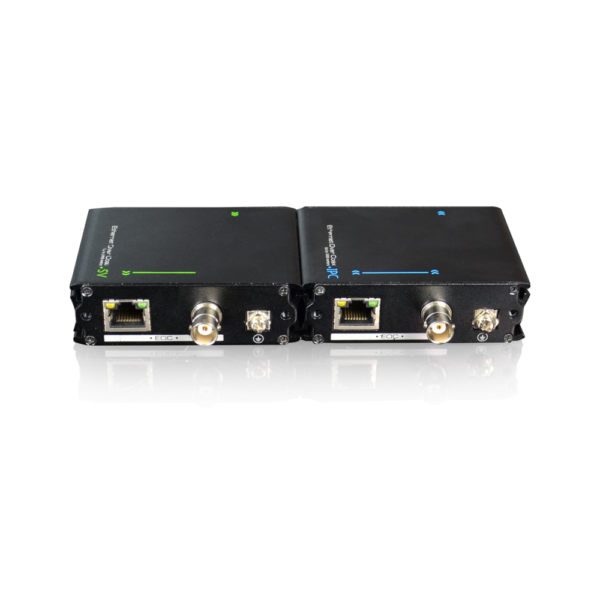

Utepo UTP7301EPOC PoE Extender / Converter over Coax / 2-wire – Supplied as a pair (1 x SV base unit + 1 x IPC end unit) – Supports Up To 400m Distance on Coax & Up To 500m Distance on Ethernet or 2-wire

Description

Utepo UTP7301EPOC PoE Extender / Converter over Coax / 2-wire – Supplied as a pair (1 x SV base unit + 1 x IPC end unit) – Supports Up To 400m Distance on Coax & Up To 500m Distance on Ethernet or 2-wire

Features :-

  • Supplied as a pair: 1 x SV-Unit and 1 x IPC-Unit
  • SV-Unit has 48-57V DC port, one PoE input port and two output ports: BNC and RJ45
  • IPC-Unit has two input ports: BNC and RJ45, one PoE output port
  • Adopt advanced transmission and power supply technology, can transmit Ethernet signal and power signal up to 500m through coaxial cable and transmit Ethernet signal and power signal up to 400m through network cable
  • Ethernet delay less than 1ms
  • Standard: IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3af/at
  • Protection: excellent circuit isolation protection, superior product anti-thunder, anti-static and anti-interference ability
  • Appearance: solid and delicate, meet MIT rack installation standard, working temperature: 0℃~55°C
  • Installation: Plug-and-play, no setting required
  • Dimensions: 63.2mm * 82mm * 25mm
  • Casing: Aluminium
  • Weight: IPC unit – 153g; SV unit – 154g;





Item Description
Power Power Supply PoE Power Supply or Power Adapter Supply
Voltage Range DC48V~57V
Power Consumption <2W
Ethernet PortPatameter Ethernet Port EPOC: 0–100Mbps Ethernet: 10/100Mbps
Transmission Bandwidth Changes with Transmission Distance, Please Refer to Table 1
Transmission Distance EPOC Coaxial Cable: 0-500m
EPOC Network Cable: 0-400m
Transmission Medium RG59 Coaxial Cable and Cat5e/6
PoE Agreement Support IEEE802.3af, IEEE802.3at
PoE Power Supply Support End-span and Mid-span
Ethernet
Exchange
Ethernet Standard IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX
Ethernet Delay <1ms
Status Indicator LED PoE IN/OUT Port:
One indicates PoE power supply or DC power status(RJ45 yellow), one indicates Ethernet signal transmission(RJ45 green);
EPOC Port: indicates signal transmissiont(RJ45 yellow/green)
Protection ESD 1a Contact Discharge level 3
1b Air Discharge level 3
Per: IEC61000-4-2
Communicating Port Anti-thunder Protection Per: IEC61000-4-5 level 3
Environmental Working temperature 0℃~55℃
Storage temperature -40℃-85℃
Humidity (non-condensing) 0-95%
Mechanical Dimension (L×W×H) 63.2mm×82mm×25mm
Material Aluminum
Color Black
Weight IPC:153g; SV:154g
Stability MTBF >30000h

Utepo UTP7301EPOC Data-sheet
