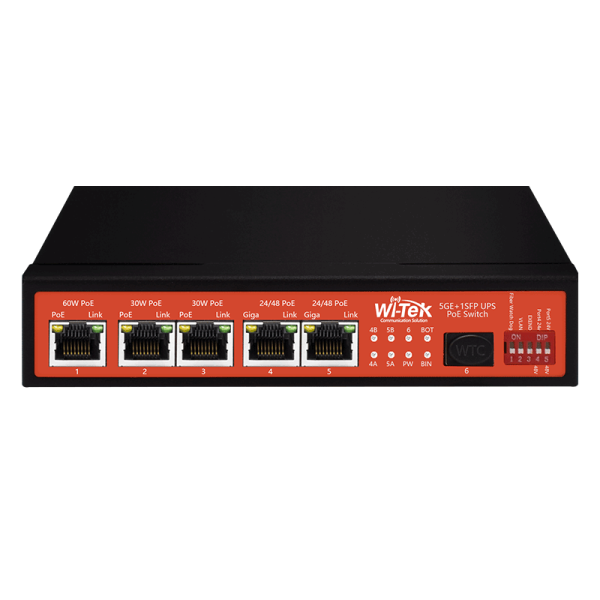

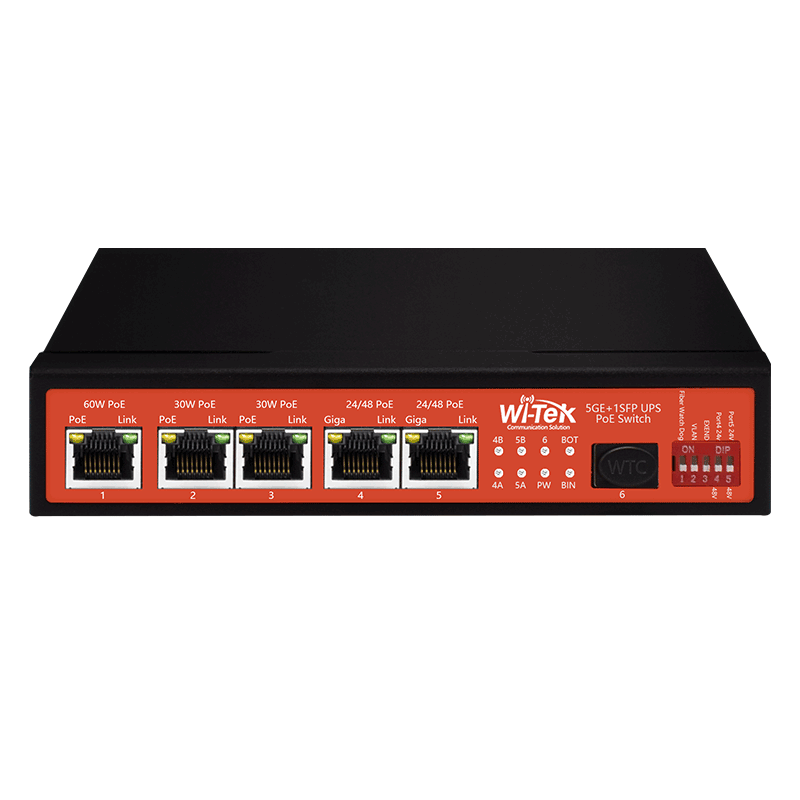

Wi-Tek WI-PS306GF-UPS-15A(V2)

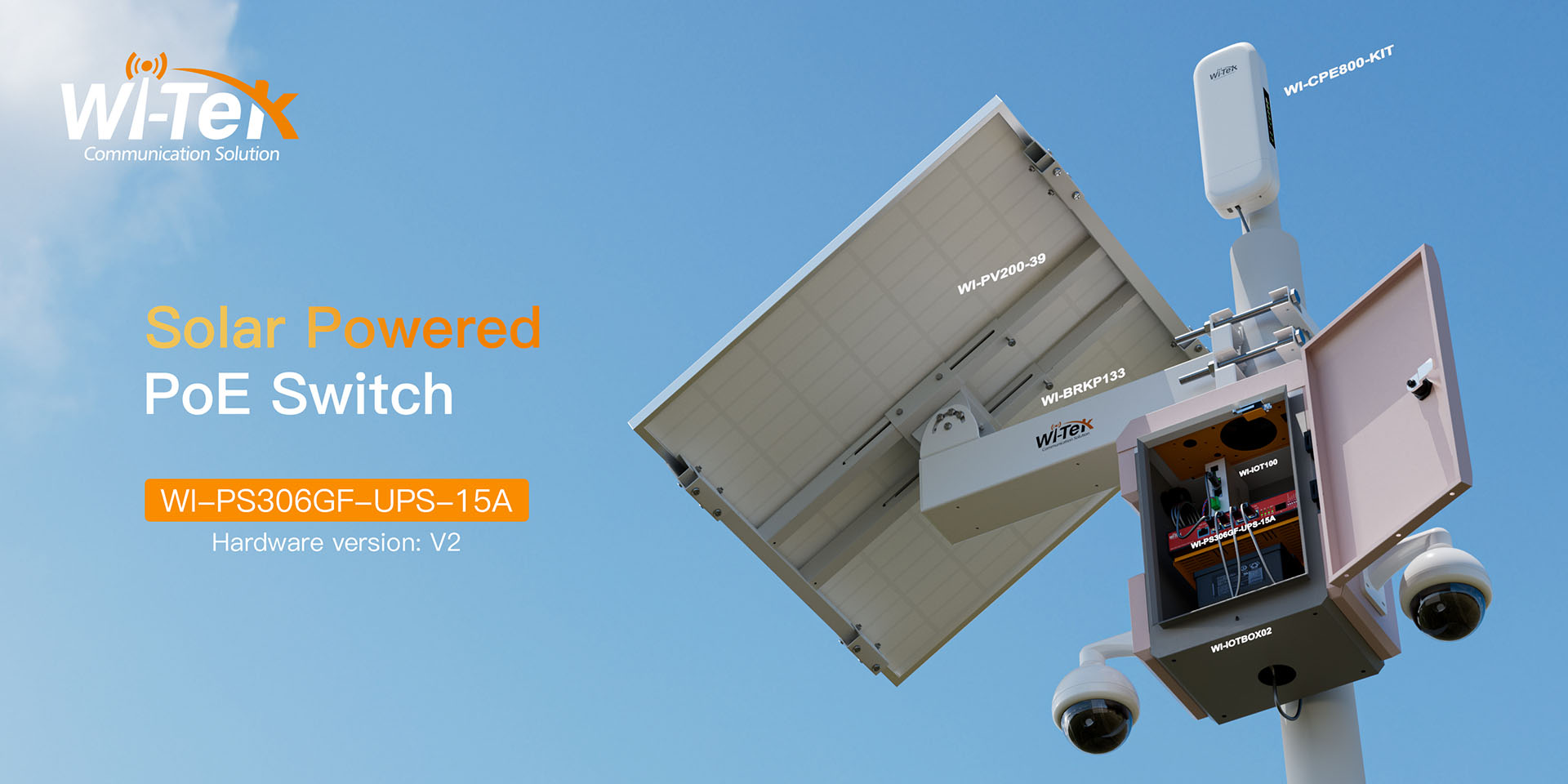

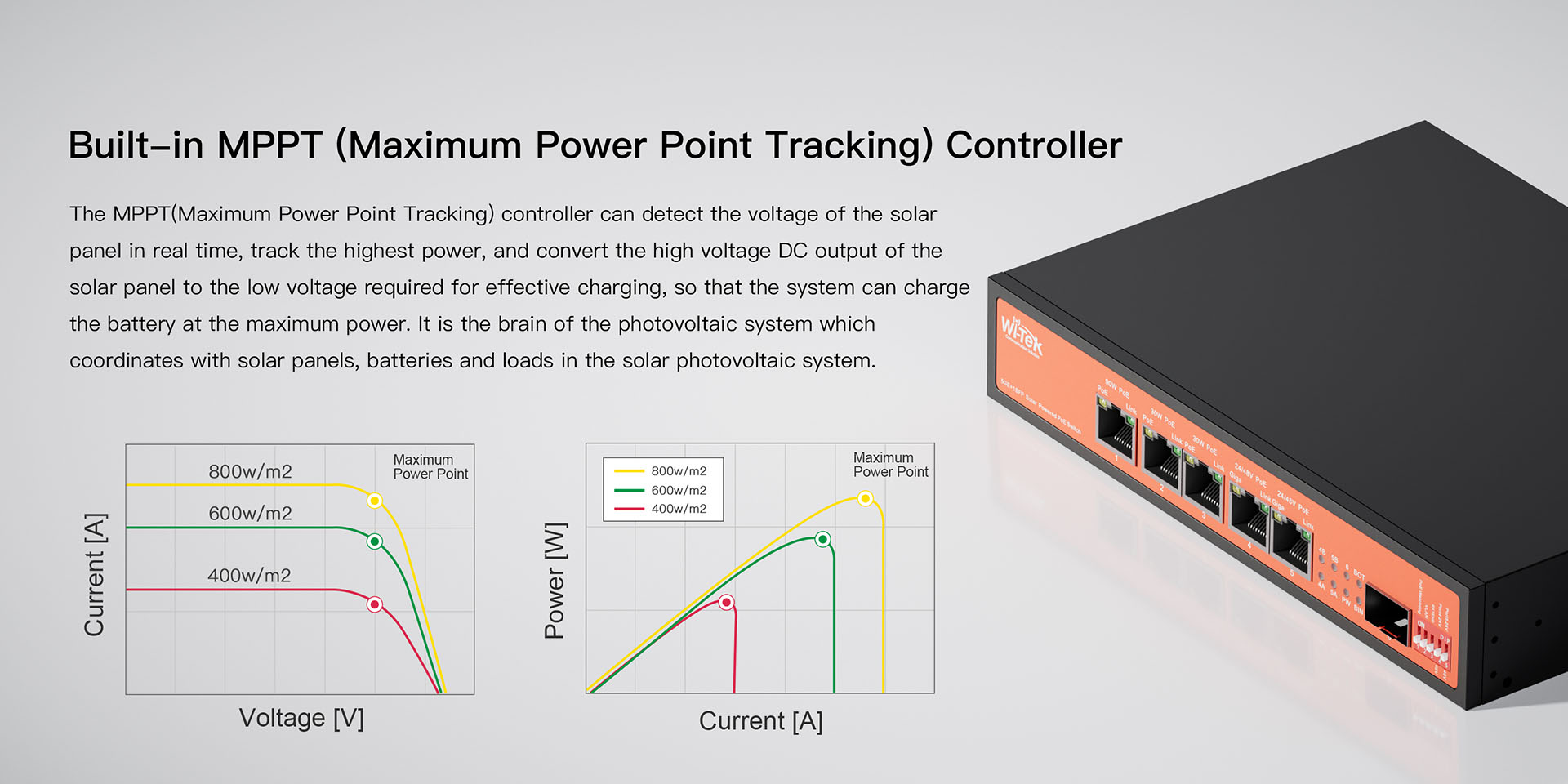

Wi-Tek WI-PS306GF-UPS-15A(V2) Unmanaged Gigabit Network PoE Switch with 5* GbE PoE Ports + 1* SFP Slot – 12VDC/24VDC Solar Powered – Built-in MPPT Controller – 120W PoE Output

Key Features :-

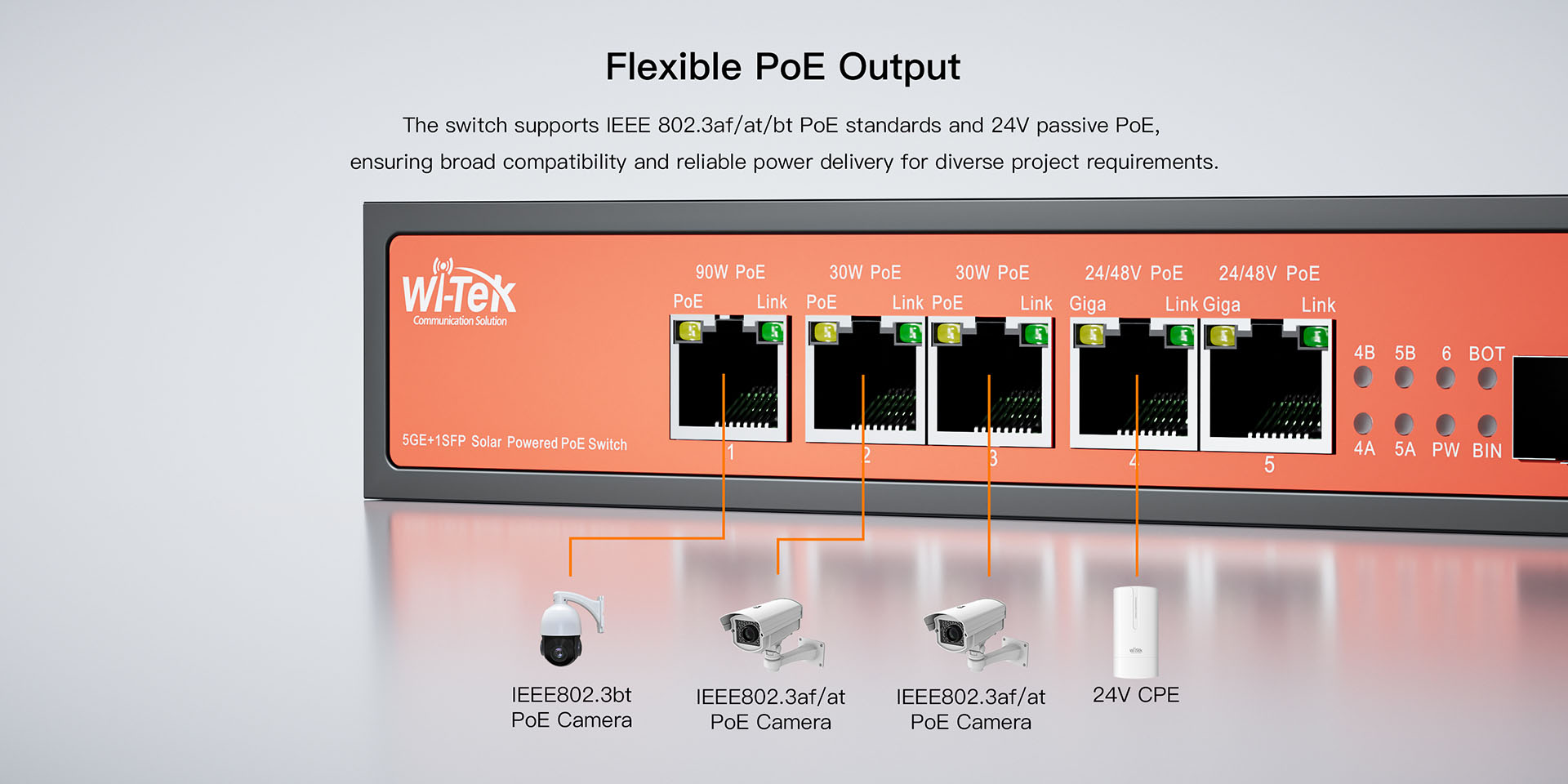

• 1 * 1000Mbps IEEE 802.3bt 90W PoE RJ45
• 2 * 1000Mbps IEEE 802.3af/at 30W PoE RJ45
• 2 * 1000Mbps IEEE 802.3af/at 30W PoE or 24V passive 24W PoE RJ45
• 1 * 1000Mbps SFP
• 1 * RS-485 for WI-IOT100 to cloud management

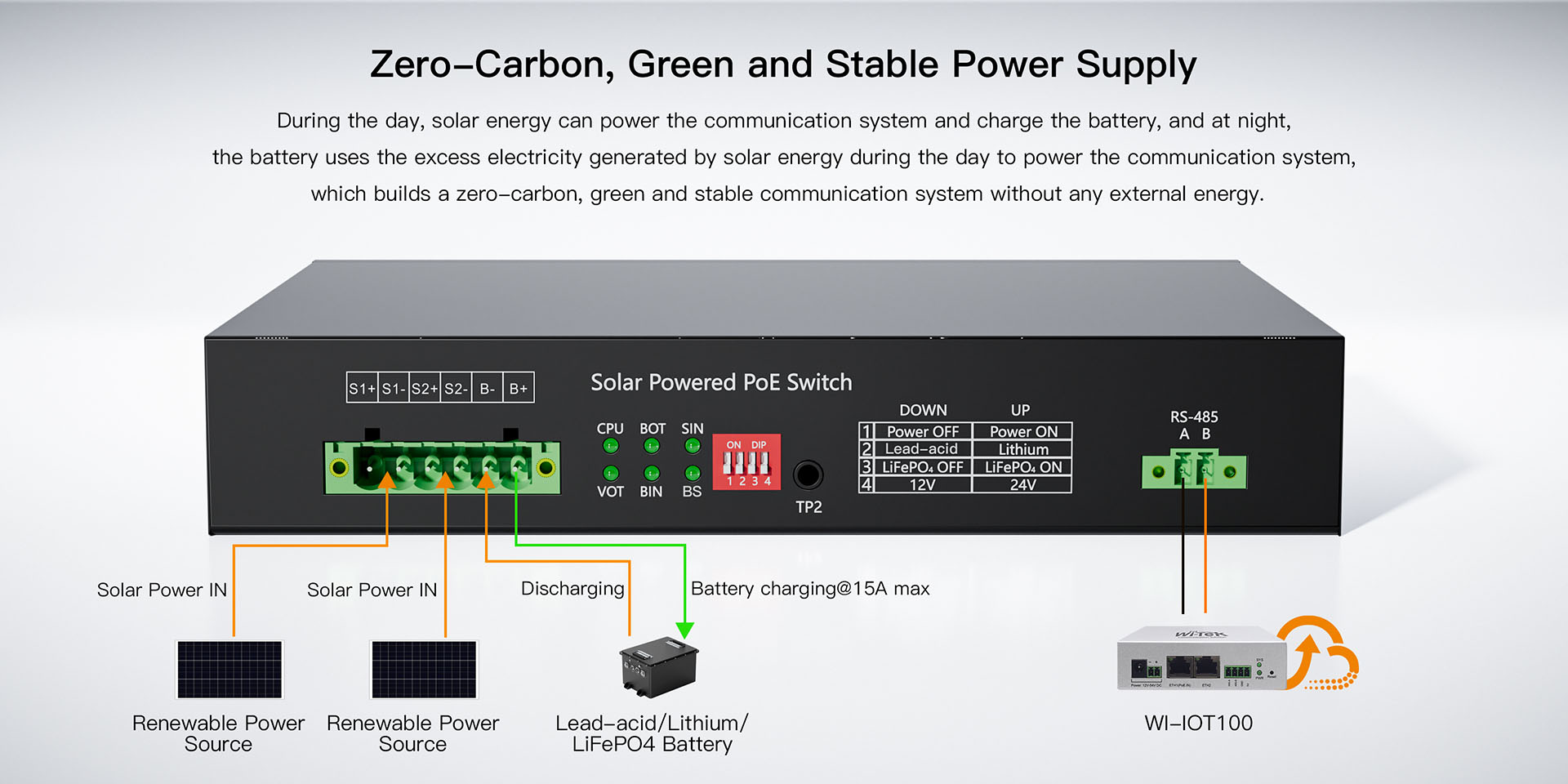

• 2 * Photovoltaic input, 1* Battery charging & discharging
• 120W max for whole switch PoE power budget
• 15A max for battery charging current
• Support PoE watchdog, Port VLAN, Extend function

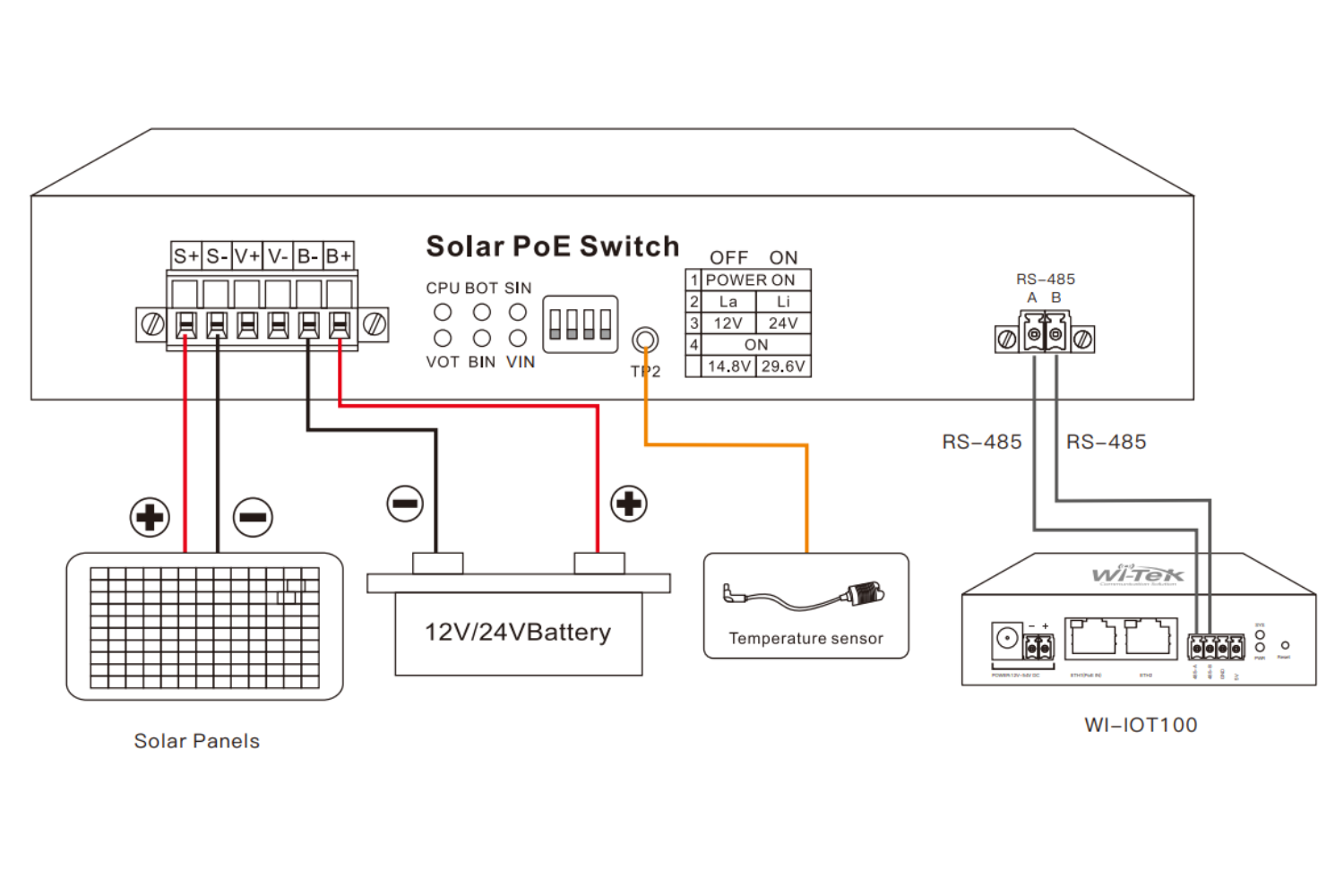

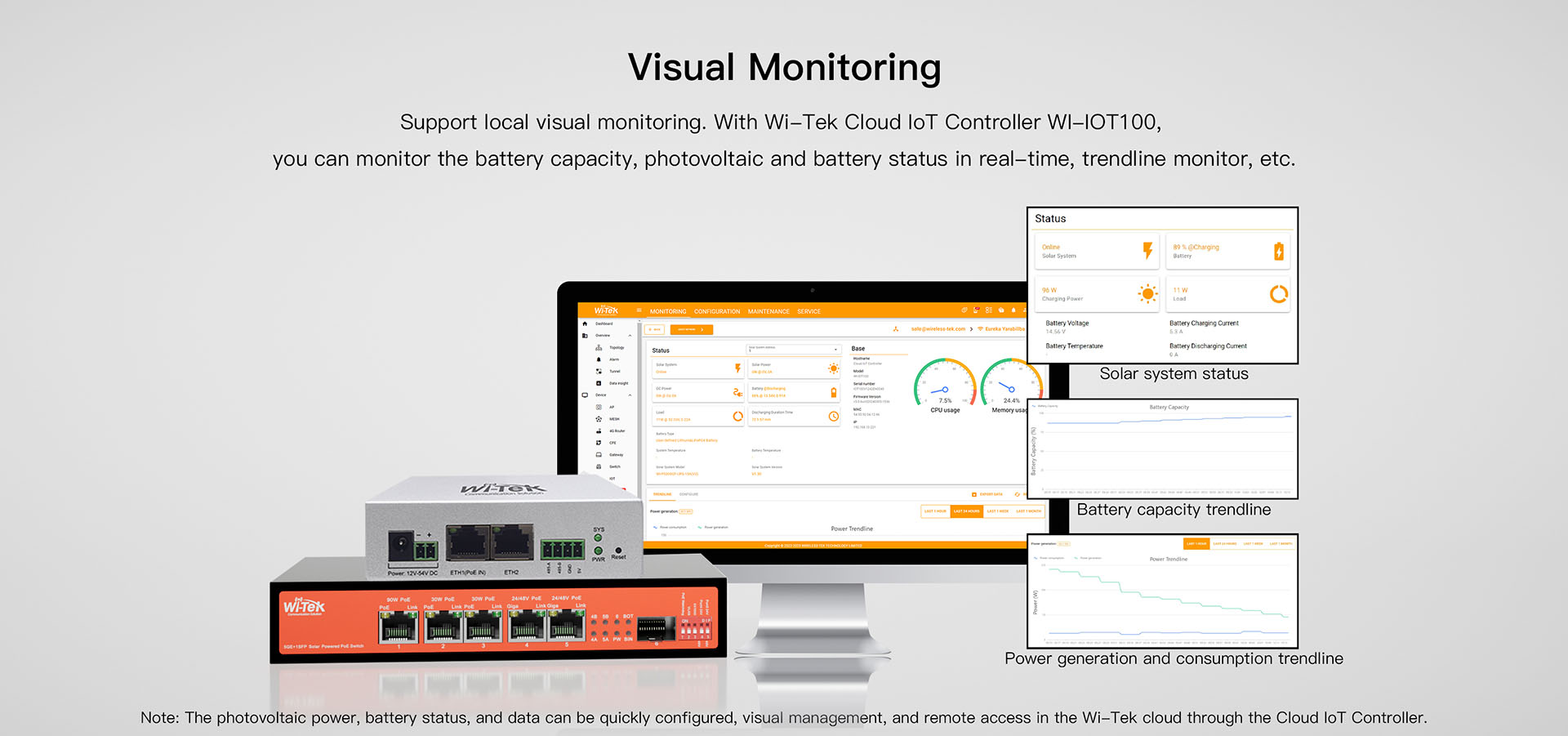

• Note – Use WI-IOT100 with this switch for battery & solar output monitoring

Wi-Tek Product-Link

Wi-Tek Product Guide 2026
