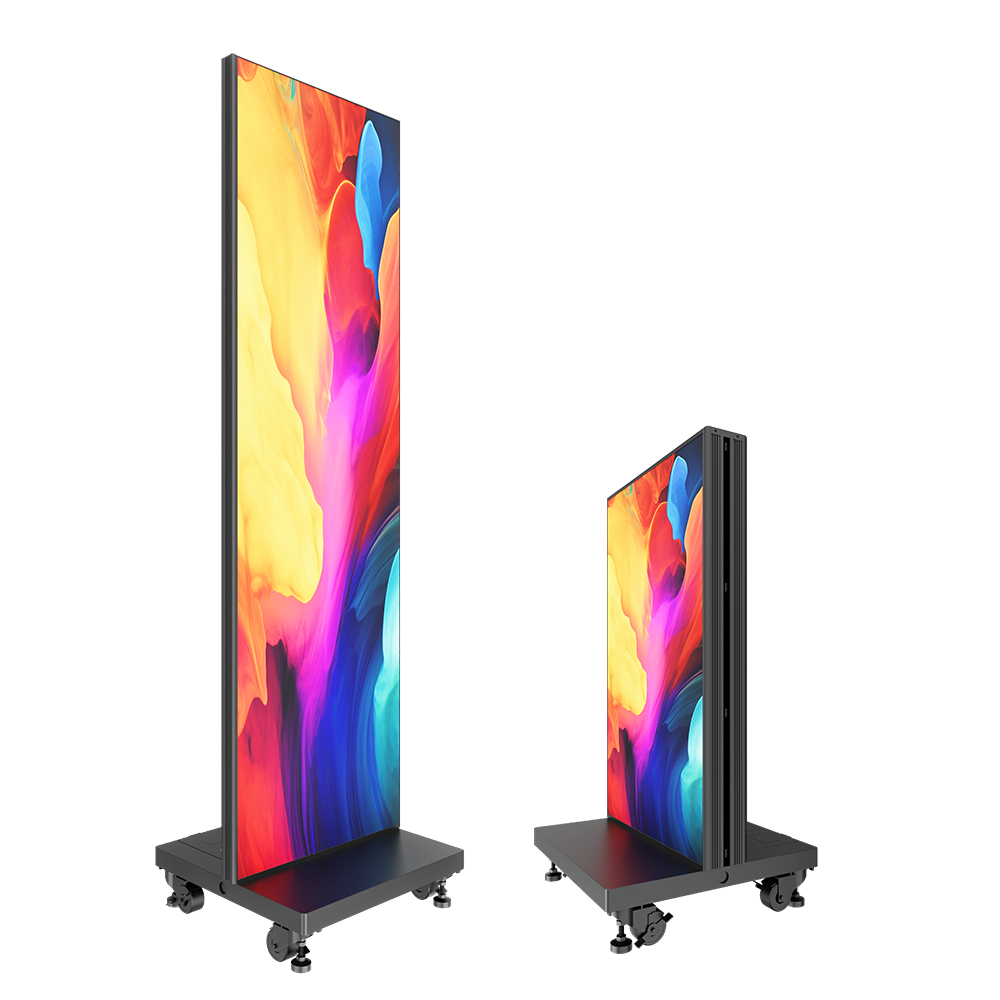

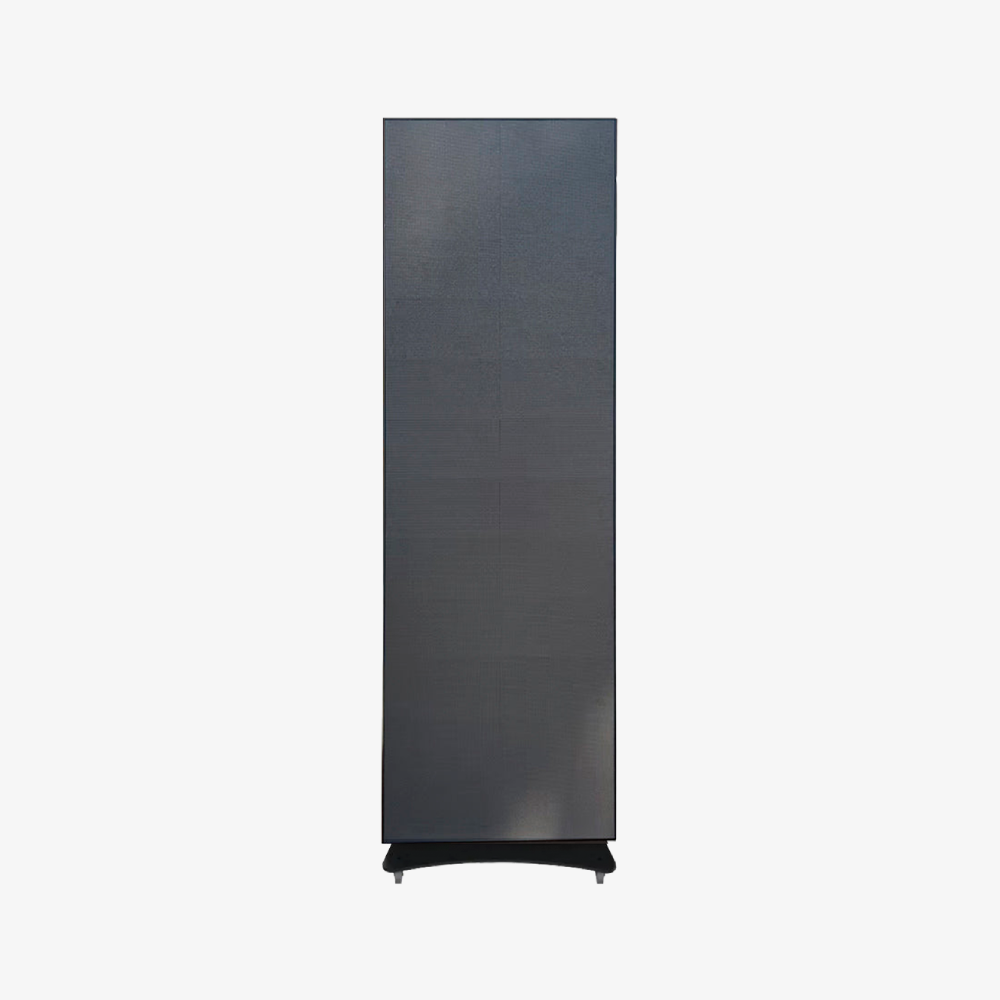

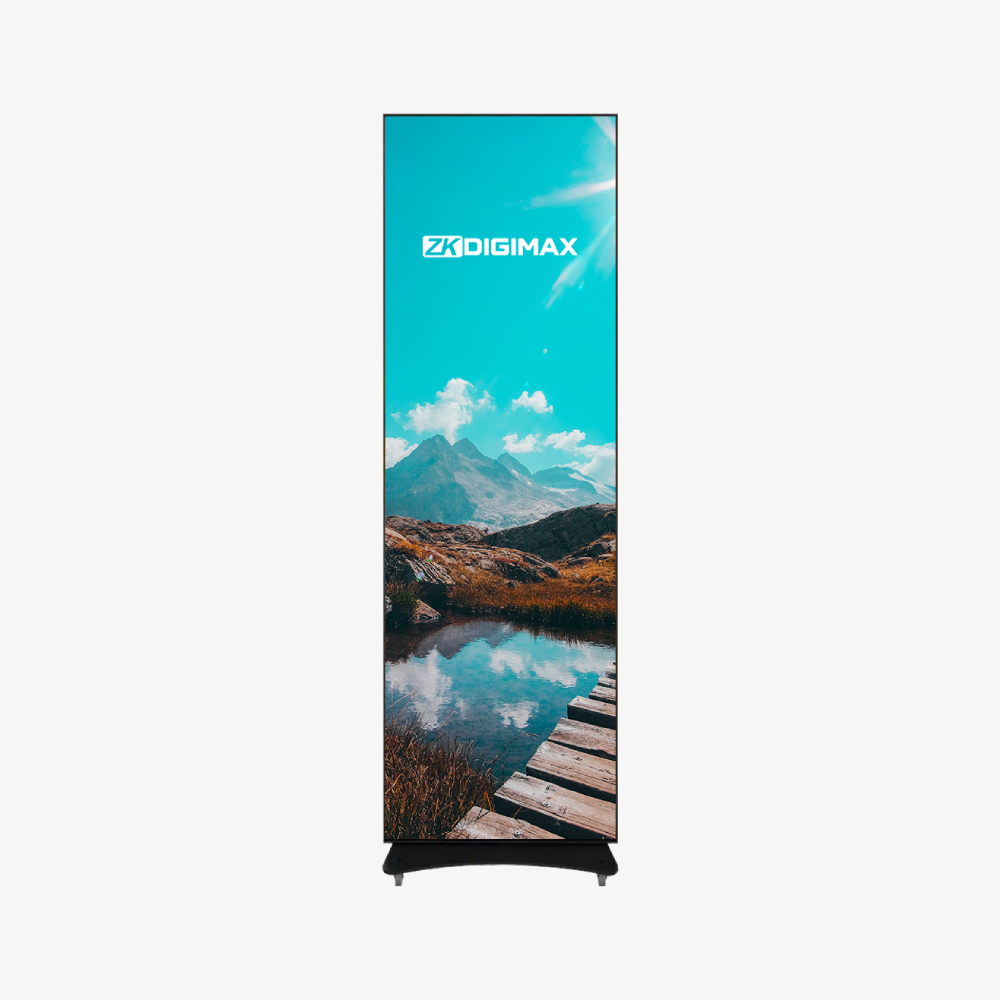

ZKDigimax DG01-A6P18_A200 Floor-Standing Digital Signage LED Poster Cabinet – 1.8mm Pixel Pitch – 800 cd/m2 Brightness – 1920mm x 640mm Screen Size – WiFi – Content Management by USB, WiFi & Cloud – Includes A200 LED Controller
ZKDigimax DG01-A6P18_A200 Floor-Standing Digital Signage LED Poster Cabinet – 1.8mm Pixel Pitch – 800 cd/m2 Brightness – 1920mm x 640mm Screen Size – WiFi – Content Management by USB, WiFi & Cloud – Includes A200 LED Controller
The DG01-A6 Poster Cabinet series offers totem-style LED displays designed for direct display in retail outlets, stores, restaurants, and commercial spaces. With a pixel pitch of 1.8 mm or 2.5 mm, high brightness, and a sleek design, it’s a modern solution for displaying digital content with exceptional clarity and ease of use.
Key Features
- Pixel pitch of 1.8 mm or 2.5 mm for excellent definition depending on the viewing distance.
- Simple operation and easy maintenance, ideal for non-technical personnel.
- Brightness exceeding 800 nits, ensuring visibility in well-lit indoor environments.
- Playback of content via USB or Wi-Fi, compatible with photos and videos.
- Poster-style design with a lightweight, aesthetically pleasing structure that is easy to transport.
Recommended applications
- Supermarkets and convenience stores.
- Boutiques and clothing stores.
- Restaurants, cafes and digital menus.
- Perfumeries and specialty stores.
- Trade fairs, exhibitions and customer service points in shopping centers
| Specification | DG01-A6P18 | DG01-A6P25 |
|---|---|---|
| Pixel Pitch | 1.8 mm | 2.5 mm |
| Module Size | 320 × 160 mm | 320 × 160 mm |
| Module Resolution | 170 × 85 px | 128 × 64 px |
| LED Configuration | SMD 3-in-1 | SMD 3-in-1 |
| Module Structure | SMD1515 | SMD2121 |
| Display Dimension | 480 × 1920mm / 640 × 1920mm | 480 × 1920mm / 640 × 1920mm |
| Cabinet Size | 492 × 2008 × 450 mm | 492 × 2008 × 450 mm |
| Frame Material | Steel | Steel |
| Frame Color | Black (default) | Black (default) |
| Weight | 34 / 45 kg | 34 / 45 kg |
| Brightness | ≥ 800 nits | ≥ 800 nits |
| Viewing Angle (H/V) | 160° / 140° | 160° / 140° |
| Refresh Rate | 3840 Hz | 3840 Hz |
| Contrast Ratio | 3000:1 | 3000:1 |
| Max Power | 800 W/m² | 600 W/m² |
| Average Power | 240 W/m² | 180 W/m² |
| Connection Type | USB Disk / Wi-Fi | USB Disk / Wi-Fi |
| Supported Media | Video / Photo | Video / Photo |
| Operating Temperature | -10°C ~ 40°C | -10°C ~ 40°C |
| Storage Temperature | -20°C ~ 55°C | -20°C ~ 55°C |
| Operating Humidity | 10–65% RH | 10–65% RH |
| Storage Humidity | 10–90% RH | 10–90% RH |
| Operating Lifetime | 100,000 hours | 100,000 hours |
