ZKDigimax DG01-C2P26

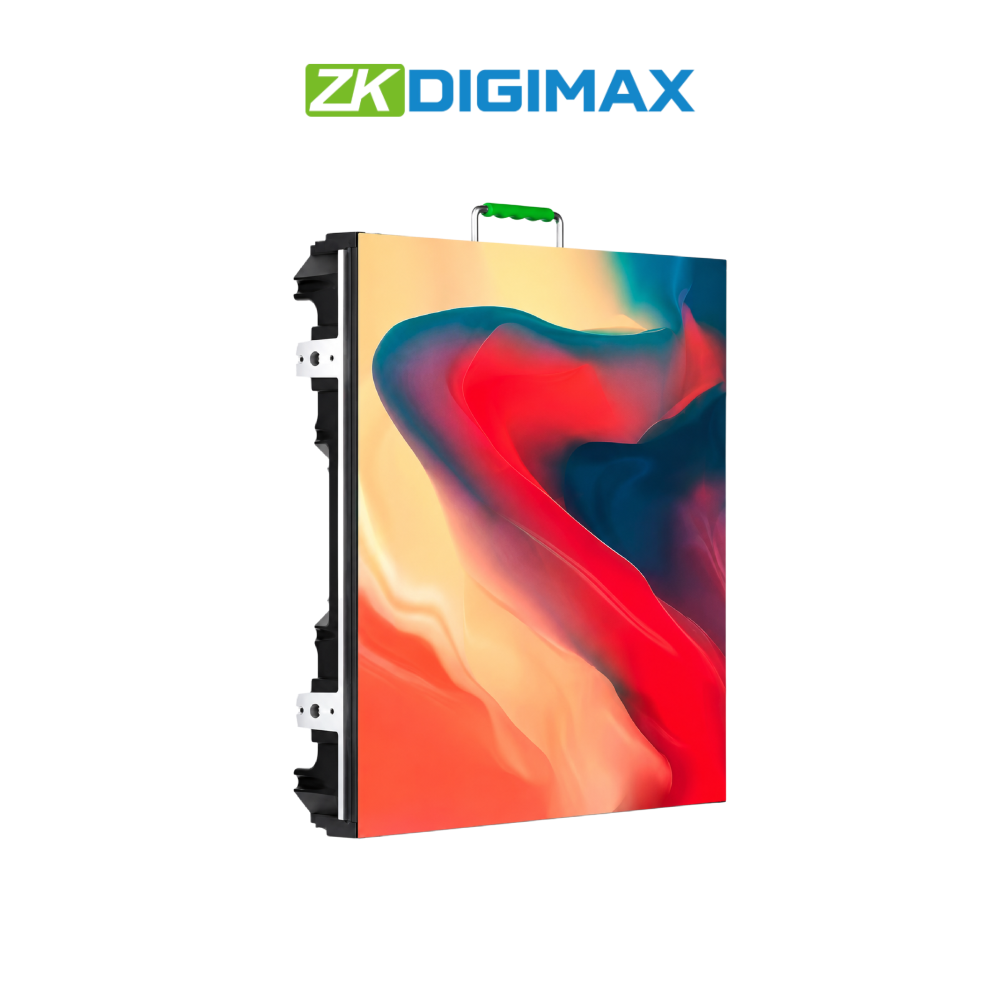

ZKDigimax DG01-C2P26 IP65-Rated Outdoor-Rated Rental LED Display Panel Cabinet – 500mm * 500m Size – 5000 Nits High Brightness – Lightweight & Quick Assembly Structure 2.6mm Pixel Pitch
ZKDigimax DG01-C2P26 IP65-Rated Outdoor-Rated Rental LED Display Panel Cabinet – 500mm * 500m Size – 5000 Nits High Brightness – Lightweight & Quick Assembly Structure 2.6mm Pixel Pitch
The LED Rental screen is a specialized LED Display used for stage performances and cultural events. It is typically available for lease, hence the name is “LED rental screen”. The LED rental display features a customized die-cast alumunium box design, known for its lightweight, slim profile, and quick installation. Its lightweight construction allows for easy transportation and removal, making it suitable for both large scale.
Key features :-
- Professional outdoor brightness (3500–5000 nits): Designed to offer perfect visibility in direct sunlight, ideal for daytime events.

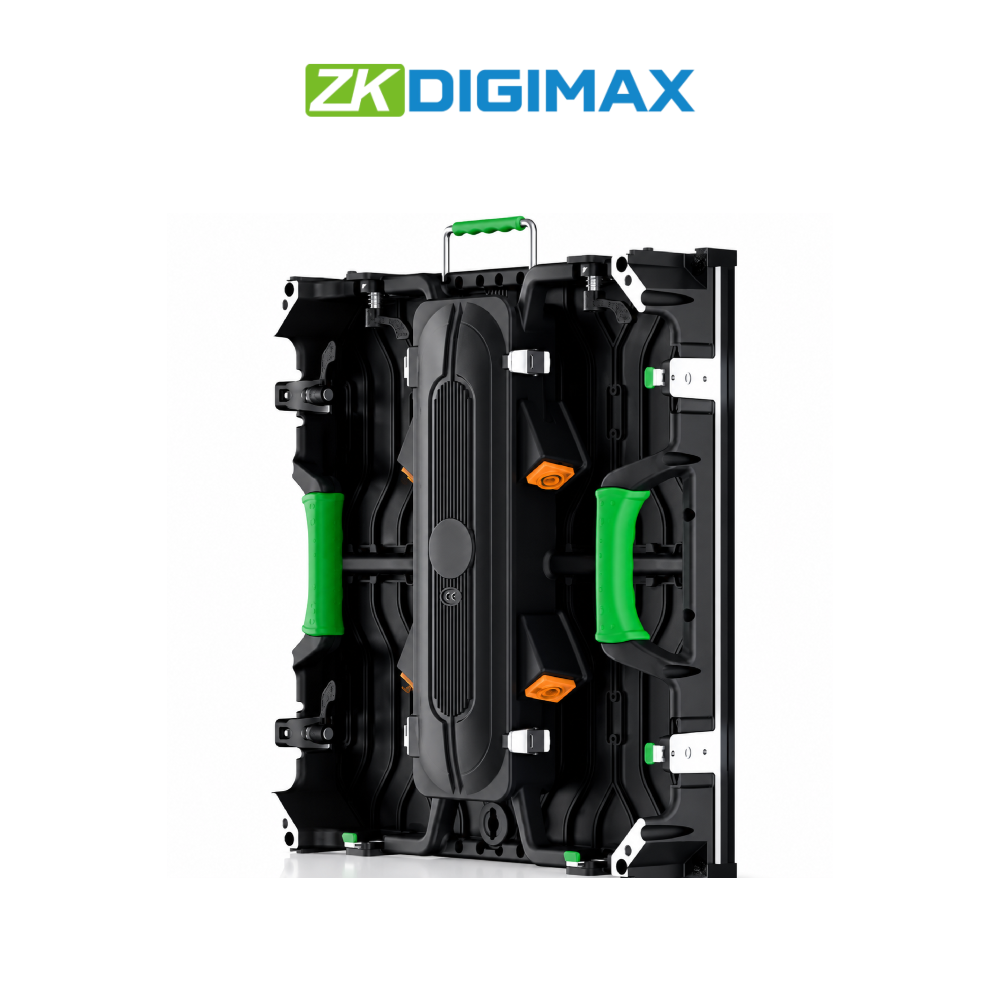

- Lightweight and quick assembly structure: 500×500 mm cabinet, ultra-light and ergonomic, facilitating frequent installations and transportation for rental.
- Four pixel densities for any event scale: Available in P2.6, P3.0, P3.9 and P4.8, adapting to short, medium and long viewing distances.
- High visual stability with refresh rate up to 3840 Hz: Smooth content, ideal for live broadcasts, cameras, and complex audiovisual productions.
- High-performance LEDs (SMD 1515 and 1921): Depending on the model, it integrates LEDs with high durability and better contrast for outdoor use.
Recommended applications
- Concerts, festivals and outdoor shows: Perfect for stages, giant screens and dynamic visual content.
- Corporate events and activations: Ideal for temporary LED walls, brand launches and visual experiences.
- Outdoor Exhibitions and Fairs: Reliable solution for outdoor stands and traveling exhibitions.
- Audiovisual production and streaming: Compatible with cameras thanks to its high refresh rate.
- LED screen rental companies: Designed specifically for durability, ease of assembly and quick maintenance.
| Model | DG01-C2P26 | DG01-C2P29 | DG01-C2P39 | DG01-C2P48 |
|---|---|---|---|---|
| Pixel Pitch | 2,604 mm | 2,976 mm | 3.91 mm | 4.81 mm |
| LED Type | SMD 1515 3-in-1 | SMD 1515 3-in-1 | SMD 1921 3-in-1 | SMD 1921 3-in-1 |
| Pixel Density | 147,456 px/m² | 112,896 px/m² | 65,536 px/m² | 43,264 px/m² |
| Module Resolution | 96 × 192 px | 84 × 168 px | 64 × 128 px | 52 × 104 px |
| Module Size | 250 × 500 mm | |||
| Cabinet Resolution | 192 × 384 px | 168 × 336 px | 128 × 256 px | 104 × 208 px |
| Cabinet Size | 500 × 1000 mm | |||
| Brightness | 3500–5000 nits | |||
| Refresh Rate | 1920–3840 Hz | |||
| Cabinet Weight | 13 kg | |||
| Power Consumption (Avg) | 420 W/m² | |||
| Power Consumption (Max) | 800 W/m² | |||
