Akubela HyPanel Elite 7 PG42

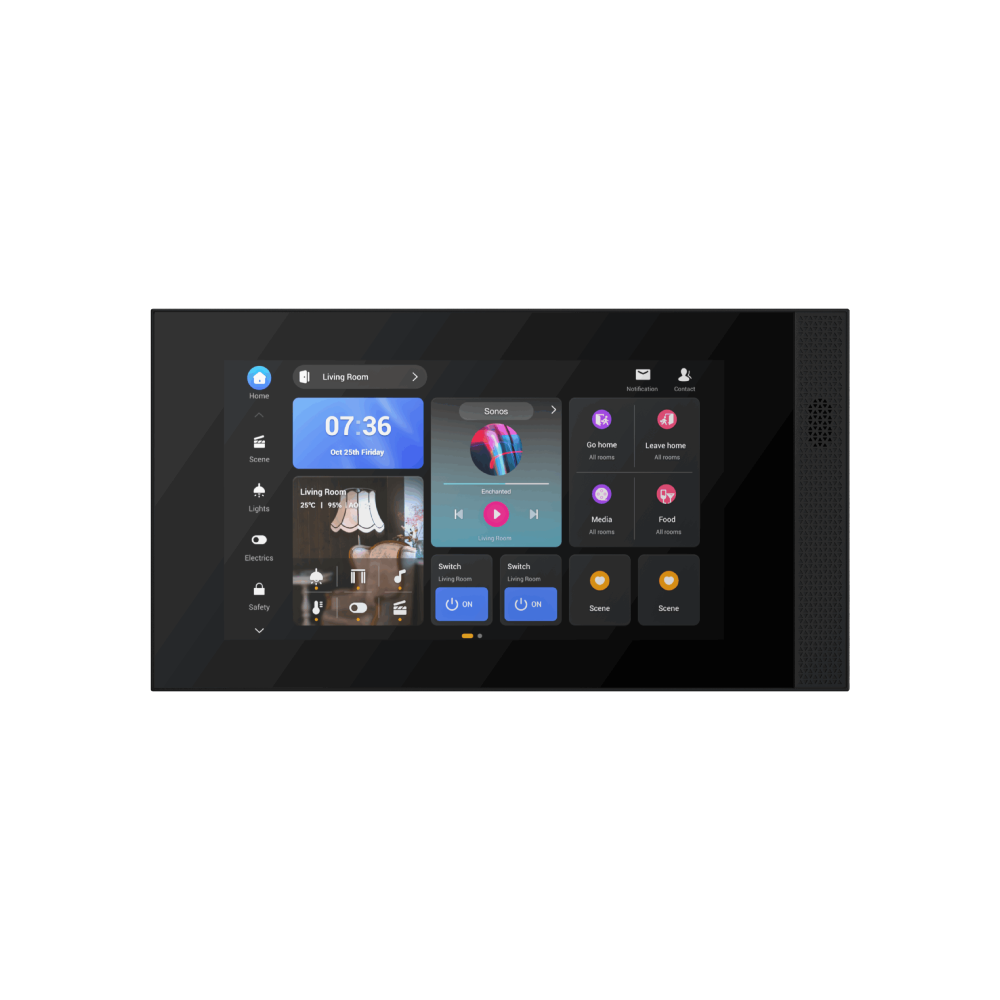

Akubela HyPanel Elite 7 PG42 Linux-Based Smart Home Control Panel – 802.3af PoE or 12VDC Powered – 7″ Touchscreen – ZigBee & WiFi – Supports RS485 with 8 * Digital Input Channels & 1 * Relay
SKU: PG42
Categories: Akubela HyPanels, Akubela Smart Home Automation, Smart Home Automation
Tags: 2.4GHz Wireless, 7 inch, Akubela, Akuvox, Home Automation, IP, Network, Speaker, Touchscreen, Wall-Mount, Wireless, Zigbee
Akubela HyPanel Elite 7 PG42 Linux-Based Smart Home Control Panel – 802.3af PoE or 12VDC Powered – 7″ Touchscreen – ZigBee & WiFi – Supports RS485 with 8 * Digital Input Channels & 1 * Relay
Key Features :-
- 7” touch screen with energy saving mode
- Two-way audio communication with other units in the network
- Smart home controller with ZigBee gateway and IR Control
- Powered by PoE or external source
- Support both US and EU electrical wall box mounting
- Support RS485
- BelaHome Mobile Phone App Control for Google Play & iOS
Basic Information
- Model Number: PG42
- Power Supply: IEEE802.3af PoE & 12VDC
- Operation System: Linux
- DDR/Flash: 128MB/256MB
- Wi-Fi: IEEE802.11 b/g/n/ax, @2.4GHz
- Ethernet Port: 2×RJ45, 10/100Mbps adaptive
- ZigBee: ZigBee 3.0
- ZigBee Sub-Device Limit: 32
- RS485 Port: Supported
- Relay Output: 1 gang; 0 – 30VDC, rated current: 2A
- Bell In Port: 1 channel Digital Input: 8 channels
- Microphone: Single microphone, -42dBV
- Speaker: Single speaker, 4Ω/2W
- IR Control Coverage: Horizontal 90°, vertical 90°, 6m
Appearance
- Material: V0 fireproof PC
- Screen: 7” touch screen
- Screen Resolution: 1024×600 pixels
- Screen Brightness: 300 cd/㎡
Working Environment
- Environment: For indoor use only
- Working Humidity: 10% ~ 90%RH, without condensation
- Working Temperature: -10℃ ~ 45℃
- Storage Temperature: -20℃ ~ 70℃
- IP Rating: IP20
