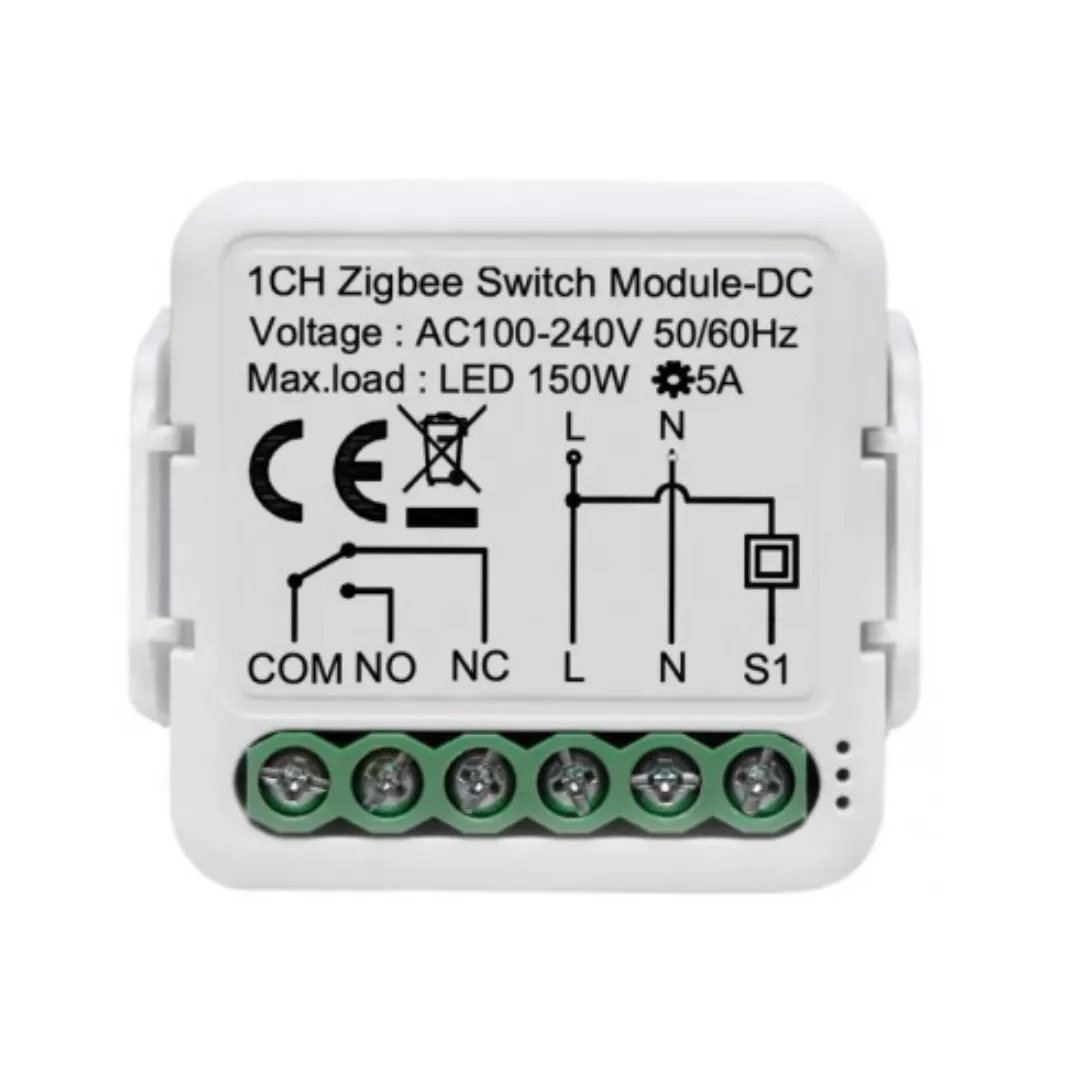

Akubela TYSH-1CH Single Relay
Akubela TYSH-1CH Single Channel Compact Relay – ZigBee – 230VAC Powered – Dry Contact Relay – Supports BelaHome App & HyPanel Control
SKU: TYSH-1CH
Categories: Akubela Smart Home Automation, Akubela ZigBee Add-Ons, Akubela ZigBee Security Add-Ons, Smart Home Automation
Tags: Akubela, Akuvox, Relay, Single-Channel, Wireless, Zigbee
Akubela TYSH-1CH Single Channel Compact Relay – ZigBee – 230VAC Powered – Dry Contact Relay – Supports BelaHome App & HyPanel Control
Key Features :-
- Smart Dry Contact Switch using ZigBee 3.0 communication
- Compact size for easy and hidden installation in wall boxes
- Compatible with Belahome App and Akubela HyPanel
- Universal voltage input (100~240VAC) for versatile applications
- Ideal for controlling doors, lights, blinds, or triggering smart scenes
- Load capacity: 150W (inductive), 5A (resistive)
- IP20 protection rating, working temperature: -10°C ~ 40°C
- Great for seamless device integration in smart home systems
- Manufacturer: Akubela
- Model: TYSH-1CH
- Input Voltage: 100 ~ 240VAC, 50/60Hz
- Communication Method: ZigBee 3.0
- Protection Level: IP20
- Load Limits: Max 150W (Inductive Load); Max 5A (Resistive Load)
- Color: White
- Product Dimensions: 43×39.2×22.3mm
- Certification: CE
- Working Temperature: -10 ~ 40°C
- Working Humidity: 0 ~ 95%RH (no condensation)
Connection Method
1. Connect the power cord correctly according to the wiring diagram to power the device;
2. Press and hold the reset button for about 10 seconds, the device indicator will flash quickly, indicating that it has entered the network pairing mode;
3. Add to the network through the gateway device.
