Akuvox ACR-CRP12
Akuvox ACR-CRP12 Outdoor Weatherproof 915MHz Wireless UHF RFID Reader for Access Control – Up to 10m Reading Distance – 9VDC ~ 15VDC Powered
SKU: ACR-CRP12
Categories: Access Control, Access Control Readers, RFID Readers, UHF RFID Readers
Tags: 915MHz Wireless, Access Control, Akuvox, Akuvox Smart Access, RFID Reader, UHF
Akuvox ACR-CRP12 Outdoor Weatherproof 915MHz Wireless UHF RFID Reader for Access Control – Up to 10m Reading Distance – 9VDC ~ 15VDC Powered
Perfect Access Control for your premises. Akuvox’s ACR-CRP12 is an ultra-high frequency long-range access control reader with stable card reading performance. It features a low power
consumption, long service life, and supports communication interfaces such as WG, USB, TCP/IP, and RS485. Widely used in scenarios like parking lot management
Key Features :-
- Long-range UHF identification capability up to 10 meters
- IP66-rated for reliable performance in outdoor environments
- Multiple communication interfaces, including WG, USB, TCP/IP, and RS485
- Energy-efficient design ensures low power consumption and long service life
- Multi-color indicator light for clear and intuitive operation feedback

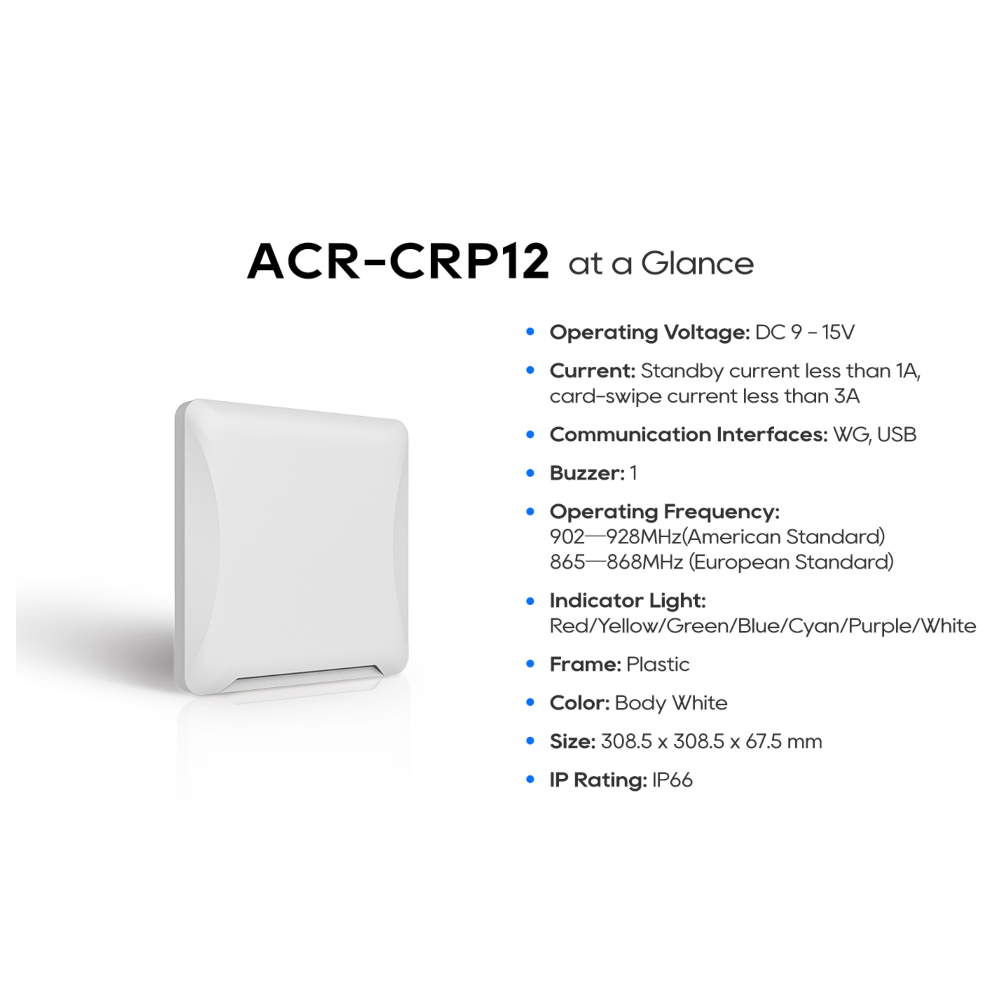

Electrical
- Operating Voltage: DC 9 – 15V
- Current: Standby current less than 1A, card-swipe current less than 3A
- Communication Interfaces: WG, USB, TCP/IP, RS485
- Buzzer: 1
- Operating Frequency: 902—928MHz (American Standard); 865—868MHz (European Standard)
- Antenna Gain: 9dBi
- Indicator Light: Red/Yellow/Green/Blue/Cyan/Purple/White
Technical
- Supports Protocol Standards: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Mechanical
- Frame: Plastic
- Color: Body White
- Size: 308.5 x 308.5 x 67.5 mm
- lP Rating: IP66
Environmental
- Working Temperature: -20°C ~ +65°C
- Storage Temperature: -20°C ~ +80°C
