Colorlight A100
Colorlight A100 LED Controller – LED Multimedia Player – Cloud Supported – Supports Synchronous & Asynchronous Modes
Colorlight A100 LED Controller – LED Multimedia Player – Cloud Supported – Supports Synchronous & Asynchronous Modes
Colorlight A100 is a new generation cloud network player, supporting synchronous display, and asynchronous playback. It supports 4K H.265/H.264 hard decoding, 4K VP9 decoding playback, a maximum load of 1.3 million pixels, and a maximum support of 1920×1200 @ 60Hz.
Colorlight A100 supports WiFi, LAN, 4G, and other networking methods, and can quickly deploy intelligent cloud management to achieve multi-screen, multi-service, and cross-regional unified management. Colorlight A100 is suitable for outdoor commercial advertising screens, indoor government display screens, public information release screens, chain store screens, door head screens advertising players, and other application scenarios.
Key Features :-
- Built-in 8GB storage space, 4GB storage capacity available to users
- Supports USB plug-and-play, convenient for content update and playback.
- Intelligent control and management
- Rich program management functions
- Supports multi-window overlay, supports multi-page playback of up to 32 program pages
- Supports multiple control platforms such as PC, mobile phone, tablet computer, etc.

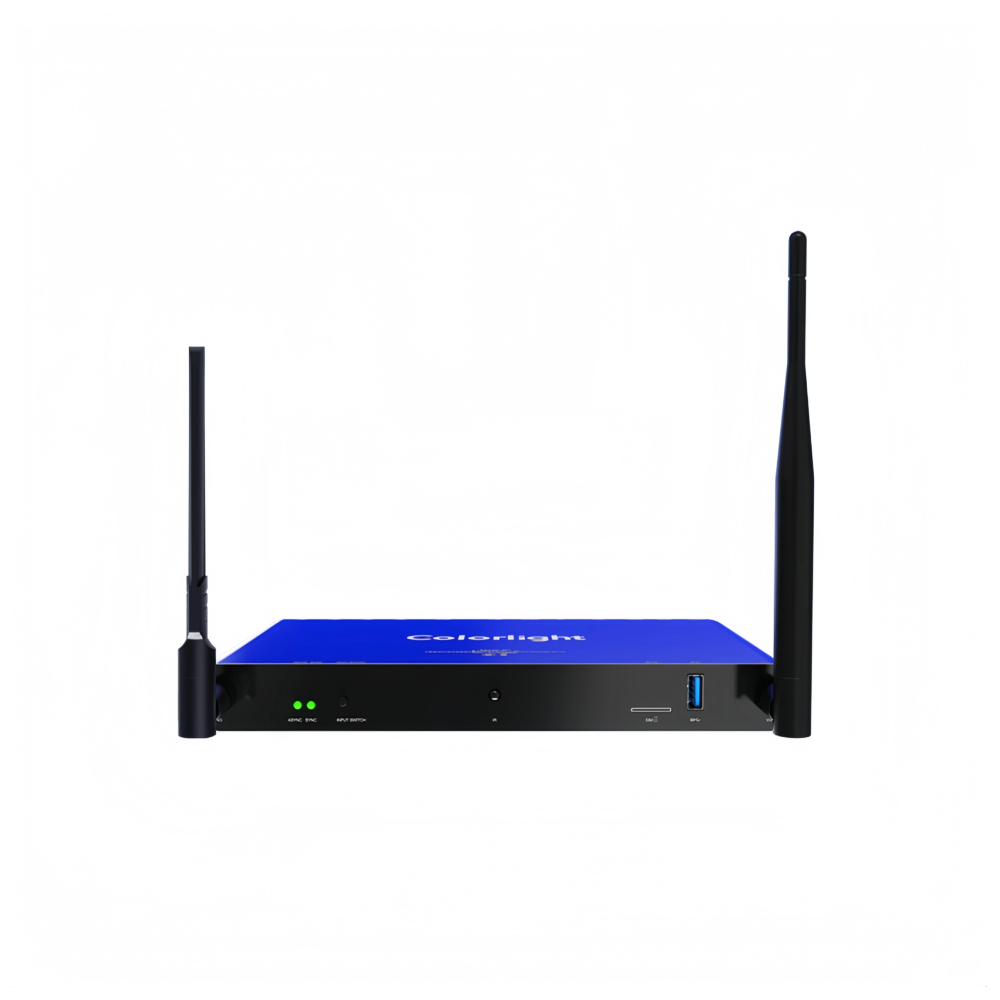

Interface Description
| S/N | Description |
| 1 | 4G – Connect to 4G antenna (optional). |
| 2 | ASYNC SYNC – Indicator of sync and async modes. |
| 3 | INPUT SWITCH – Switch between sync and async modes. |
| 4 | IR – Receive information via infrared light (remote control, easy to operate). |
| 5 | SIM – Micro-SIM card slot (use with 4G module). |
| 6 | USB – USB 3.0, connect to USB flash drive or USB camera. |
| 7 | WiFi – Connect to WiFi antenna, support 2.4G band. – WiFi hotspot. – WiFi client mode (connect to other WiFi routers). |

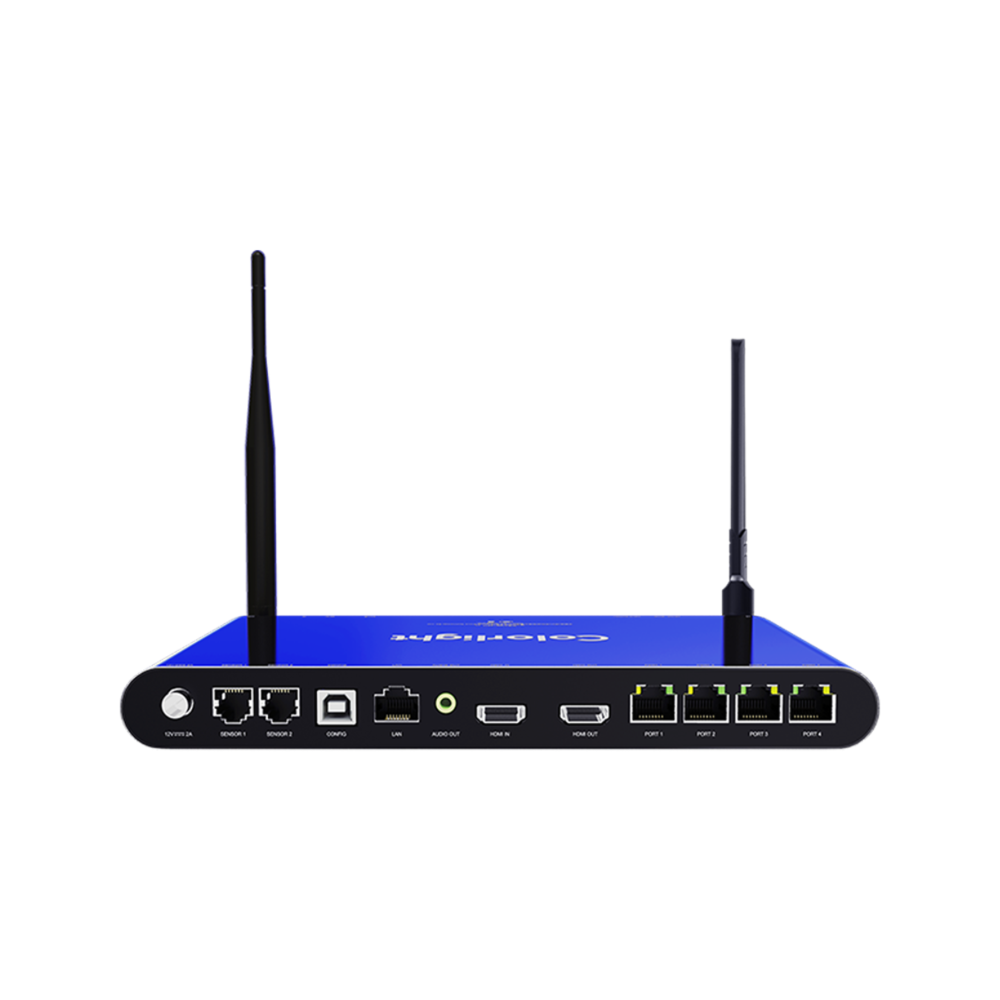

| S/N | Description |
| 1 | DC IN – DC 12V power input. |
| 2 | SENSOR 1/2 – RJ11 port, connect to the sensor for automatic brightness adjustment or monitoring ambient light, smoke, temperature, humidity and air quality. |
| 3 | CONFIG – USB-B port, connect to the PC for debugging or program publishing. |
| 4 | LAN – Ethernet port, connect to wired network. |
| 5 | AUDIO OUT – 3.5mm audio interface, HiFi stereo output. |
| 6 | HDMI IN – Input sync HDMI signal. |
| 7 | HDMI OUT – Output sync or async HDMI signal. |
| 8 | PORT1-2 – Ethernet output, connect to receiver cards of the display. |
| Dimensions (WXHXD) | |||||||||||||||||||||||||||||||||||||
| Unboxed | 234.8mm(9.24″)X26.0mm(1.02″)X137.4mm(5.41″) | ||||||||||||||||||||||||||||||||||||
| Boxed | 360.0mm(14.17″)X93.0mm (3.66″)X225.0mm (8.86″) | ||||||||||||||||||||||||||||||||||||
| Weight | |||||||||||||||||||||||||||||||||||||
| Net weight | 0.83kg(1.83lbs) | ||||||||||||||||||||||||||||||||||||
| Total weight | 1.70kg(3.75lbs) | ||||||||||||||||||||||||||||||||||||
| Electrical specification | |||||||||||||||||||||||||||||||||||||
| Power input | DC12V | ||||||||||||||||||||||||||||||||||||
| Rated power | 12W | ||||||||||||||||||||||||||||||||||||
| Operating environment | |||||||||||||||||||||||||||||||||||||
| Temperature | 0%RH~95%RH, non-condensing | ||||||||||||||||||||||||||||||||||||
| Humidity | -20°℃~65°C / -4°F~149°F | ||||||||||||||||||||||||||||||||||||
| Certification | |||||||||||||||||||||||||||||||||||||
| CCC, CE, CE-RED, FCC, FCC-ID. * If the product does not have the relevant certifications required by the countries or regions where it is to be sold, please contact Colorlight to confirm or address the problem, Otherwise, the customer shall be responsible for the legal risks caused or Colorlight has the right to claim compensation.
|
|||||||||||||||||||||||||||||||||||||
