Colorlight A200
Colorlight A200 LED Controller – LED Multimedia Player – Cloud Supported – Supports Synchronous & Asynchronous Modes
Colorlight A200 LED Controller – LED Multimedia Player – Cloud Supported – Supports Synchronous & Asynchronous Modes
Colorlight A200 is a new generation of cloud network player that supports synchronous display and asynchronous playback. Its maximum loading capacity is 2.3 million pixels and supports an output resolution of up to 1920×1200 @ 60Hz. A200 supports 4K H.265/H.264 hard decoding and 4K VP9 decoding playback to ensure a high-quality video playback experience.
A200 supports networking methods like WiFi, LAN, and 4G (optional), which enables rapid deployment of intelligent cloud management, multi-screen, multi-service, and cross-regional unified management. A200 has a permanent WiFi hotspot and can connect to other WiFi hotspots. Program management and parameter settings can be achieved via smartphones, tablets, and PC. A200 supports command scheduling and LAN scheduling and can achieve automatic brightness settings to meet the brightness adjustment needs of various occasions.
With PlayerMaster, A200 offers program editing and publishing and program multi-window arbitrary arrangement, allowing for program materials playbacks such as video, picture, text, table, clock, streaming media, webpages, and weather. Besides, it supports plug-and-play content from a USB flash drive. Program updates and management can be achieved via a wired network.
As a brand-new networking control system, A200 enjoys strong advantages in the application of outdoor commercial advertising screens, indoor government screens, public place information release screens, chain screens, doorstep screens, and advertising players.
Key Features :-
- Loading capacity up to 1.3 million pixels, with a maximum of 4096 pixels in width or 2560 pixels in height.
- HDMI up to 1920×1200@60Hz.
- Synchronous display or asynchronous playback, as well as the priority setting of these two modes.
- Strong processing performance, 4K H.265/H.264 hard decoding, 4K VP9 decoding playback.
- 8GB storage, available 4G storage capacity.
- Fully compatible with conventional synchronous control system program management and display configuration.
Intelligent control, convenient management.
- USB flash drive can plug and play content and updates the list of programs.
- Synchronized playback of multiple screens (NTP synchronization).
- Scheduled commands, LAN-based scheduling, and Internet-based scheduling.
- Ambient temperature, humidity and brightness, and other parameters monitoring, as well as automatic display brightness adjustment.
Convenient program management.
- Rich media materials, such as pictures, videos, texts, tables, clocks, stream media, webpages, and weather.
- Supports overlaying of multiple windows, whose size and location can be freely adjusted.
- Supports multi-page playback, up to 32 program pages.
All-round control scheme
- Manage players via different platforms like PC, smartphone, and Pad.
- Different application software for management, convenient for various situations.
Network communication
- WiFi 2.4G frequency band, WiFi hotspot mode, or WiFi client mode1.
- LAN. supports DHCP mode and static mode.
- 4G communication, 4G network (optional).
- GPS positioning (optional).

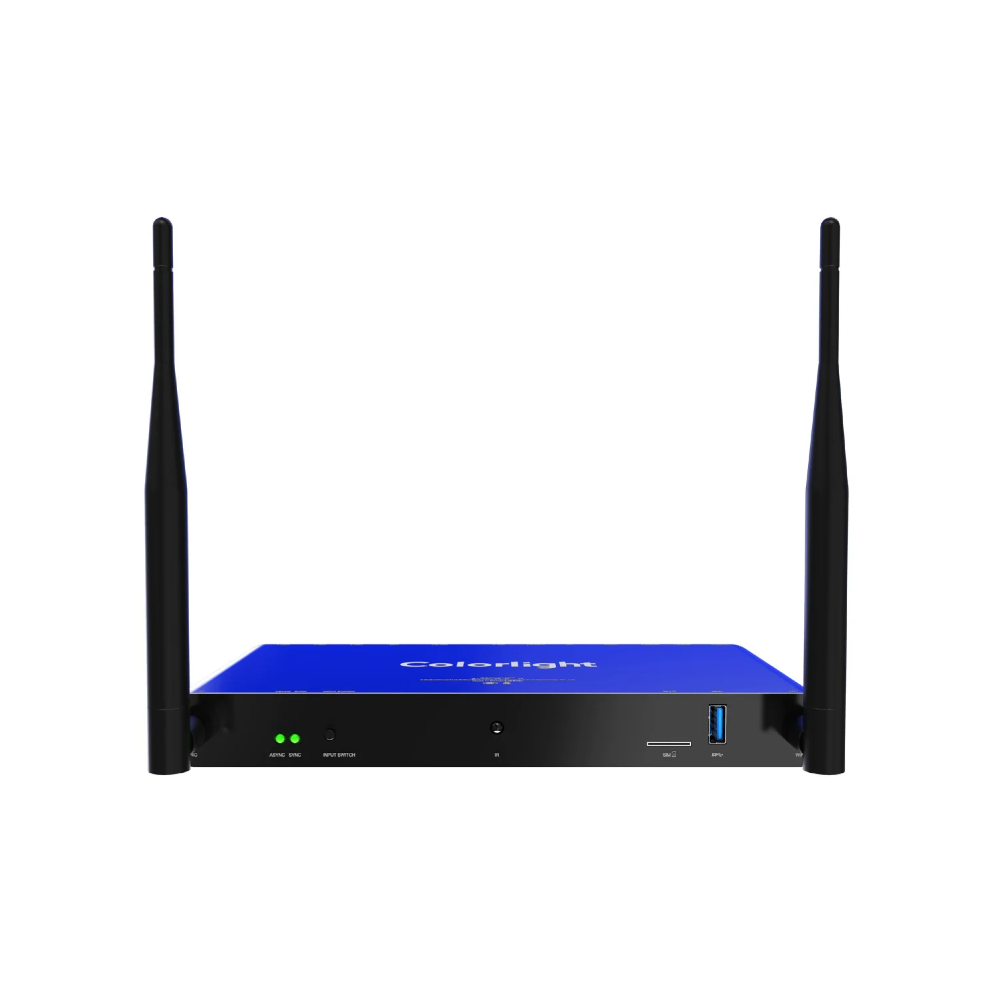

| S/N | Description |
| 1 | 4G – Connect to4G antenna (optional). |
| 2 | ASYNC SYNC – Indicator of sync and async modes. |
| 3 | INPUT SWITCH – Switch between sync and async modes. |
| 4 | IR – Receive information via infrared light (remote control, easy to operate). |
| 5 | SIM – Micro-SIM card slot (use with 4G module). |
| 6 | USB – USB 3.0, connect to USB flash drive or USB camera. |
| 7 | WiFi – Connect to WiFi antenna, support 2.4G band. – WiFi hotspot. – WiFi client mode (connect to other WiFi routers) |
| 8 | PORT1-4 – Ethernet output, connect to receiver cards of the display. |
| 9 | HDMI OUT – Output sync or async HDMI signal. |
| 10 | HDMI IN – Input sync HDMI signal. |
| 11 | AUDIO OUT – 3.5mm audio interface, HiFi stereo output. |
| 12 | LAN – Ethernet port, connect to wired network. |
| 13 | CONFIG – USB-B port, connect to the PC for debugging or program publishing. |
| 14 | SENSOR 1/2 – RJ11 port, connect to the sensor for automatic brightness adjustment or monitoring ambient light, smoke, temperature, humidity and air quality. |
| 15 | DCIN – DC 12V power input. |
Reference Dimensions (mm)
| Dimensions (WXHXD) | |
| Unboxed | 234.8mm (9.24″)X26.0mm (1.02″)X137.4mm (5.41″) |
| Boxed | 360.0mm (14.17″)X93.0mm (3.66″)X225.0mm (8.86″) |
| Weight | |
| Net weight | 0.83kg(1.83lbs) |
| Total weight | 1.70kg(3.75lbs) |
| Electrical specification | |
| Power input | DC12V |
| Rated power | 15W |
| Operating environment | |
| Temperature | 0%RH~95%RH, non-condensing |
| Humidity | -20℃~65°℃ / -4°F~149°F |
| Certification | |
| CCC, CE, CE-RED, FCC, FCC-ID. *If the product does not have the relevant certifications required by the countries or regions where it is to be sold, please contact Colorlight to confirm or address the problem. Otherwise, the customer shall be responsible for the legal risks caused or Colorlight has the right to claim compensation. | |
