Hikvision DS-2CD2387G3P-LIS2UY/SL

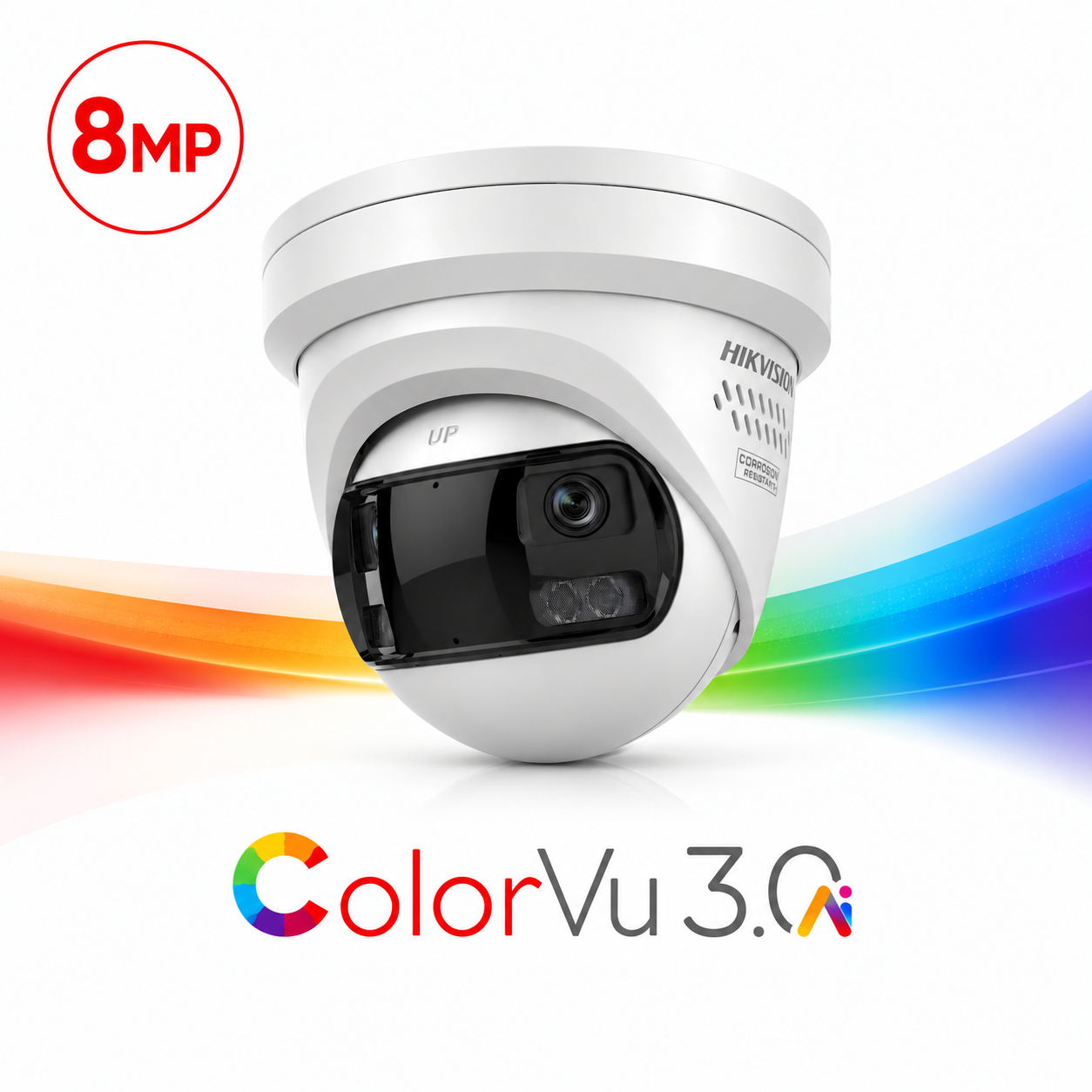

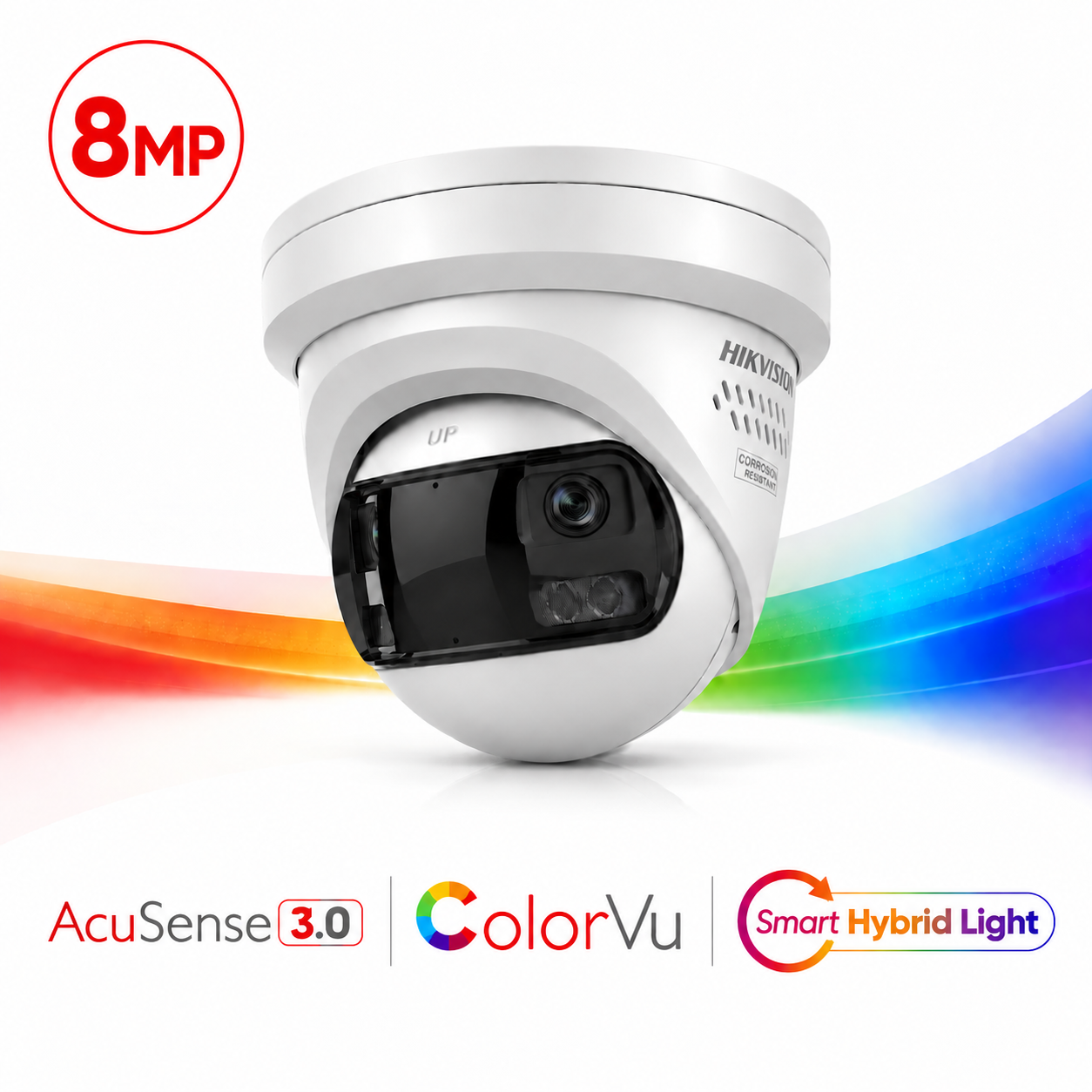

Hikvision DS-2CD2387G3P-LIS2UY/SL H265 4K 8MP Panoramic 180° Degree Ultra-Wide-Angle ColorVu Smart-Hybrid-Light (30m IR + 30m White-Light) 130dB True-WDR Weatherproof Eyeball Turret Camera – Built-in Strobe + Siren + 2-Way Audio (Mic + Speaker) – NEMA 4x Anti-Corrosion
SKU: DS-2CD2387G3P-LIS2UY/SL
Categories: CCTV / Surveillance, IP 180-Degree Panoramic Fisheye Cameras, IP Cameras, IP Surveillance
Tags: 130dB True-WDR, 180 Degree, 2-Way Audio, 4K Resolution, 8MP, Active Deterrence, AcuSense, AI, Alarm, Artificial Intelligence, Built-in Mic, Camera, ColorVu, Eyeball Camera, Full Colour, H265, Hikvision, Human Detection, IP Camera, Live-Guard, Network Camera, Perimeter Protection, PoE, Siren, Smart Dual Light, Smart Hybrid Light, Speaker, Strobe, Turret Camera, Vehicle Detection, Weatherproof, White, White Light LED
Hikvision DS-2CD2387G3P-LIS2UY/SL H265 4K 8MP Panoramic 180° Degree Ultra-Wide-Angle ColorVu Smart-Hybrid-Light (30m IR + 30m White-Light) 130dB True-WDR Weatherproof Eyeball Turret Camera – Built-in Strobe + Siren + 2-Way Audio (Mic + Speaker) – NEMA 4x Anti-Corrosion
Key Features :-
- 180° panoramic view
- 24/7 colorful imaging via ColorVu 3.0 technology
- HikAI-ISP for excellent noise reduction effect
- White light & IR light & Smart Hybrid Light modes
- Person and vehicle classification based on deep learning
- Active strobe light and audio alarm to warn trespassers off
- Crystal-clear audio with Arrayed Dual-Mic (-2U)
- Clear imaging against strong backlight due to 130 dB WDR technology
- Anti-corrosion design (NEMA 4X), more reliable
- Dust and water resistant (IP67)
- Audio and alarm interface available
- Eco-friendly and tamper-free packaging
- Note: This camera uses a single-channel on an NVR
Camera
- Image Sensor: 1/2.5″ Progressive Scan CMOS
- Max. Resolution: 4256 × 1888
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time: 1 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens, 2.8 mm
- Focal Length & FOV: 2.8 mm, horizontal FOV 182.6°, vertical FOV 74.6°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.0
- Depth of Field: 2.8 mm: 1.6 m to ∞
DORI
- DORI: 2.8 mm: D: 62 m, O: 24 m, R: 12 m, I: 6 m
Illuminator
- Supplement Light Type: White Light,IR
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
Video
- Main Stream: 50Hz： 20fps(4256 × 1888, 4096 × 1856); 60Hz： 20fps(4256 × 1888, 4096 × 1856)
- Sub-Stream: 50Hz: 20fps(1200 × 536, 960 × 432); 60Hz： 20fps(1200 × 536, 960 × 432)
- Video Compression: Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 24 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR, VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed regions for each stream
Audio
- Audio Type: -U:Mono sound
- Audio Compression: -U:G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering: -U: Yes
Network
- Protocols: SNMP, SSL/TLS, IPv6, IGMP, DNS, SFTP, WebSockets, QoS, DDNS, SMTP, PPPoE, DHCP, WebSocket, FTP, NTP, HTTP, RTSP, IPv4, HTTPS, UPnP, RTP, TCP/IP, ICMP, 802.1X, RTCP, UDP
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
- Security: IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.3, host authentication (MAC address), watermark, RTP/RTSP over HTTPS, complicated password, AES128/256, Password protection, WSSE and digest authentication for Open Network Video Interface, TLS 1.2, 802.1X authentication(EAP-LEAP,EAP-TLS,EAP-MD5,EAP-PEAP), control timeout settings, HTTPS encryption, security audit log
- Network Storage: NAS (NFS, SMB/CIFS)
- Client: iVMS-4200,Hik-Connect,Hik-Central
- Web Browser: Plug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+; Local service: Chrome 91+, Firefox 88+, Edge 91+
- Image Parameters Switch: Yes
- Image Settings: saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR, Distortion Correction, Defog
- SNR: ≥ 52 dB
- Wide Dynamic Range (WDR): 130 dB
- Image Stabilization: No
- Privacy Mask: 4 programmable polygon privacy masks
Interface
- Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Speaker: Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
- Audio:
-
- Built-in Microphone: -2U: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
- 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
-
- Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset Key: Yes
Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception,alarm input and output
- Smart Event: Scene change detection
- Linkage: notify surveillance center,trigger alarm output,trigger recording,trigger capture,audible warning,send email
Deep Learning Function
- Face Capture: No
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
General
- Power: 12 VDC ± 25%, 1.67 A, max. 20 W,Ø5.5 mm coaxial power plug,reverse polarity protection; PoE: IEEE 802.3at, Class 4, max. 24 W
- Material: Cover: metal, main body: metal
- Dimension: Ø138.6 mm × 125 mm (Ø5.46″ × 4.92″)
- Package Dimension: 170 mm × 170 mm × 160 mm (6.69″ × 6.69″ × 6.30″)
- Weight: Approx. 840 g (1.85 lb.)
- With Package Weight: Approx. 1070 g (2.35 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function: Heartbeat, flash log, password reset via email, pixel counter, anti-banding
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Flashing Light: /SL model: White Light
Approval
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety: CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013
- Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
