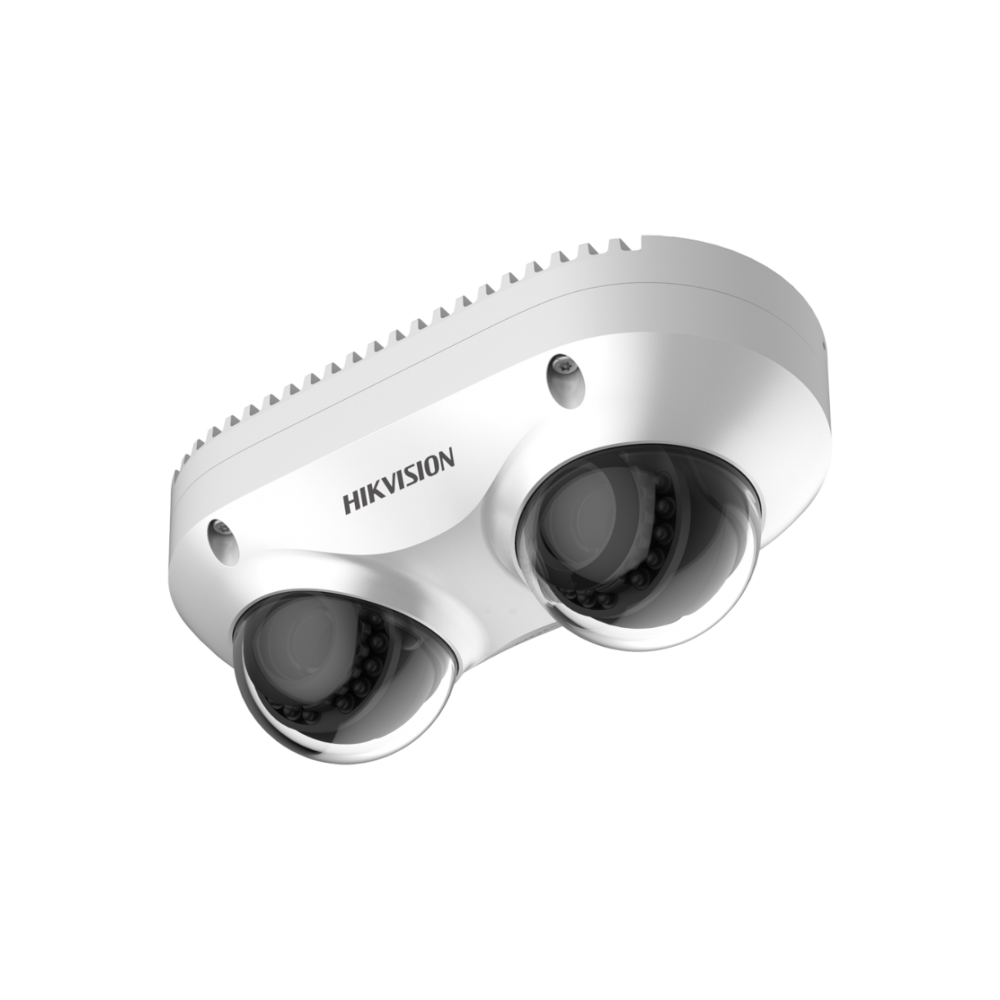

Hikvision DS-2CD6D82G2-IS

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color: 0.0036 Lux @ (F1.6, AGC ON); B/W: 0.0009 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: -90° to 90°,tilt: 0 to 60° (2.8 mm),0 to 70° (4 mm),rotate: 0° to 355°

Lens

• Focal Length & FOV: 2.8 mm, horizontal FOV 108.1°, vertical FOV 53.2°, diagonal FOV 132.8°
• Lens Mount: M12
• Aperture: F1.6

DORI

• DORI: 2.8 mm: D: 97 m, O: 38 m, R: 19 m, I: 9 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 15 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream: Channel 1 & Channel 2: 50 Hz: 20 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream: Channel 1 & Channel 2: 50 Hz: 20 fps (704 × 576, 640 × 480); 60 Hz: 20 fps (704 × 480, 640 × 480)
• Third Stream: Channel 1 & Channel 2: 50 Hz: 20 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 20 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Video Compression: Main stream: H.264+/H.265+/H.265/H.264; Sub-stream: MJPEG/H.265/H.264; Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 4 fixed regions for each stream
• Target Cropping: No

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps: (G.711ulaw/G.711alaw)/32~192 Kbps(MP2L2)/16 Kbps(G.722.1)/PCM/8~320 Kbps(MP3)/16 Kbps(G.726)/16~64 Kbps(AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• Simultaneous Live View: Up to 20 channels
• API: ISAPI, SDK, ISUP, Open Network Video Interface, EZVIZ, OTAP
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200,Hik-Connect
• Web Browser: Plug-in required live view: IE 11; Plug-in free live view: Safari 12+; Local service: Chrome 57.0+, Firefox 52.0+,

  Not recommended: Safari 11+, Edge


• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger
• Wide Dynamic Range (WDR): 120 dB
• Image Enhancement: EIS, BLC, HLC, 3D DNR
• Privacy Mask: 8 programmable polygon privacy masks
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface

• Ethernet Interface: 1* RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1024 GB
• Built-in Microphone: 2 built-in microphones
• Audio: 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 2 input, 2 output (max. 36 VDC, 30 mA)
• RS-485: 1* RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset Key: Yes

Event

• Basic Event: exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart), video quality diagnosis, alarm input and output, Motion detection, video tampering alarm
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, Unattended baggage detection, object removal detection, loitering detection, people gathering detection, fast moving detection, parking detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, audible warning, trigger recording

General

• Power: 12 VDC ± 20%, 1.2 A, max. 14 W,Ø5.5 mm coaxial power plug; PoE: IEEE 802.3at, Class 4, max. 14 W
• Material: Aluminum alloy body
• Dimension: 164.3 mm × 84.6 mm × 67.4 mm (6.5″ × 3.3″ × 2.7″)
• Package Dimension: 227 mm × 172 mm × 125 mm (8.9″ × 6.8″ × 4.9″)
• Approx. 810 g (1.8 lb.)
• With Package Weight: Approx. 1130 g (2.5 lb.)
• Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, flash log, password reset via email, password protection, one-key reset, anti-banding

Approval

• EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7
• Safety: CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013, IK10: IEC 62262:2002
