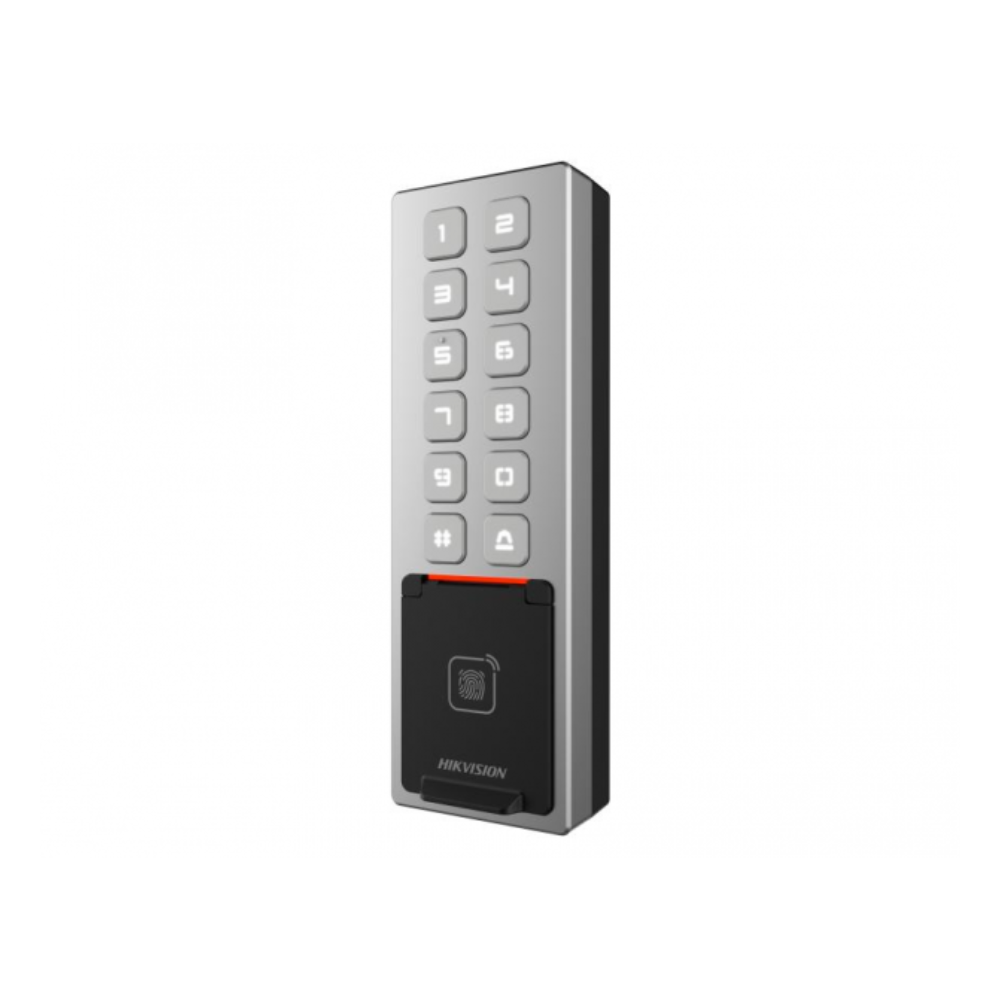

Hikvision DS-K1T805MBFWX

Hikvision DS-K1T805MBFWX Standalone Wireless IP Weatherproof Access Control Terminal – Built-in MiFare Card-Reader + Fingerprint Reader + Keypad + Bluetooth

Hikvision DS-K1T805MBFWX Standalone Wireless IP Weatherproof Access Control Terminal – Built-in MiFare Card-Reader + Fingerprint Reader + Keypad + Bluetooth

Features :-

  • High protective level: IP65 and IK08
  • Slim and flexible design with metal
  • 3,000 fingerprints, 10,000 cards and 100,000 events storage
  • Built-in card reader for M1 card
  • Supports operation by mobile App (Hik-Connect)
  • Supports AP configuration, configuration via PC web and mobile web are available
  • Supports multiple authentication types: card, fingerprint, PIN, and bluetooth

System

  • Operating System: Linux

Audio

  • Audio Output: 1 built-in buzzer

Network

  • Bluetooth: Support
  • Wired Network: 10/100 Mbps self-adaptive
  • Wi-Fi: 2.4 GHz, IEEE802.11b, 802.11g, 802.11n, 802.11d, 802.11e, 802.11h, 802.11i

Interface

  • RS-485: 1, supports OSDP
  • Network Interface: 1
  • Wiegand: Wiegand 26/34
  • Lock Control: 1
  • Exit Button: 1
  • Door Contact Input: 1
  • Alarm Input: 2
  • Alarm Output: 1
  • TAMPER: 1

Capacity

  • Card Capacity: 10,000
  • Fingerprint Capacity: 3000
  • Event Capacity: 100,000

Authentication

  • Card Type: M1 card
  • Card Reading Distance: 0 to 4 cm
  • Card Reading Duration: < 1 s
  • Fingerprint Module: Optical fingerprint module
  • Fingerprint Comparing Mode: 1:1 and 1:N
  • Fingerprint Recognition Duration: < 1 s

Function

  • Hik-Connect: Support
  • Configuration Via Web Browser: Support PC web configuration and mobile web operation

General

  • Power Supply: 12VDC/1 A
  • Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
  • Working HumidityL 0% to 90% (no condensing)
  • Dimensions: 57.7 mm × 177 mm × 34.6 mm (2.3″ × 7.0″ × 1.4″)
  • Power Consumption: ≤ 12 W
  • Language: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, Ukrainian, and Russian
