Hikvision DS-KD-KK

Please login for price

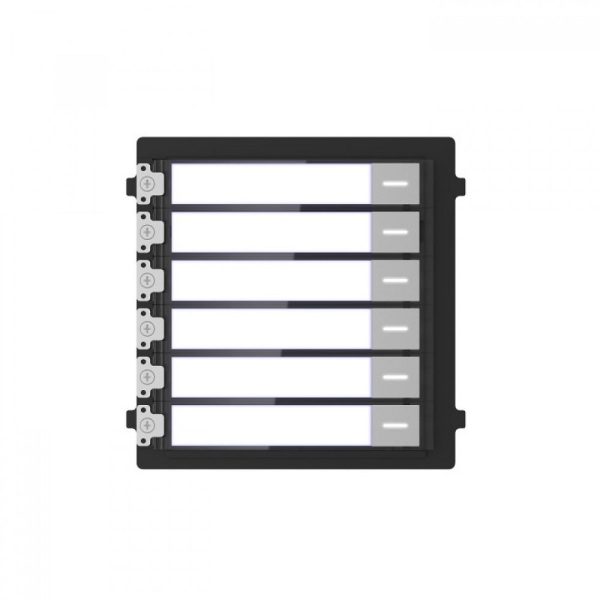

Hikvision DS-KD-KK IP Video Intercom 6-button nametag module

Description

Hikvision DS-KD-KK IP Video Intercom 6-button name-tag module

Features :-

  • Modular door station name-tag unit, needs mounting bracket
  • 6 call buttons, including 4 button covers, IP65
  • Dial the resident at one-touch
  • Backlight compensation
  • Easy and extend

System Parameters

  • Processor: Embedded MCU Processor

General

  • Power Supply: Powered by DS-KD8003-IME1
  • Power Consumption: ≤ 2 W
  • Working Temperature: -40° C to +55° C(-40° F to 131° F)
  • Working Humidity: 10% to 95%
  • IP Protection Level: IP65
  • Dimensions: 98.2 mm × 100.2 mm × 33.7 mm (3.87″ × 3.95″ × 1.33″)
  • Installation: Flush mounting, surface mounting
  • Weight: 438 g (with packaging) 190 g (without packaging)

Device Interfaces

  • Module Connecting: 2 (1 input, 1 output)
  • Debug: 1

Hikvision Intercom Designer Tool -> Hikvision Intercom Design Tool

Hikvision DS-KD-KK Data-sheet

Hikvision 2nd Gen IP Intercom Brochure
