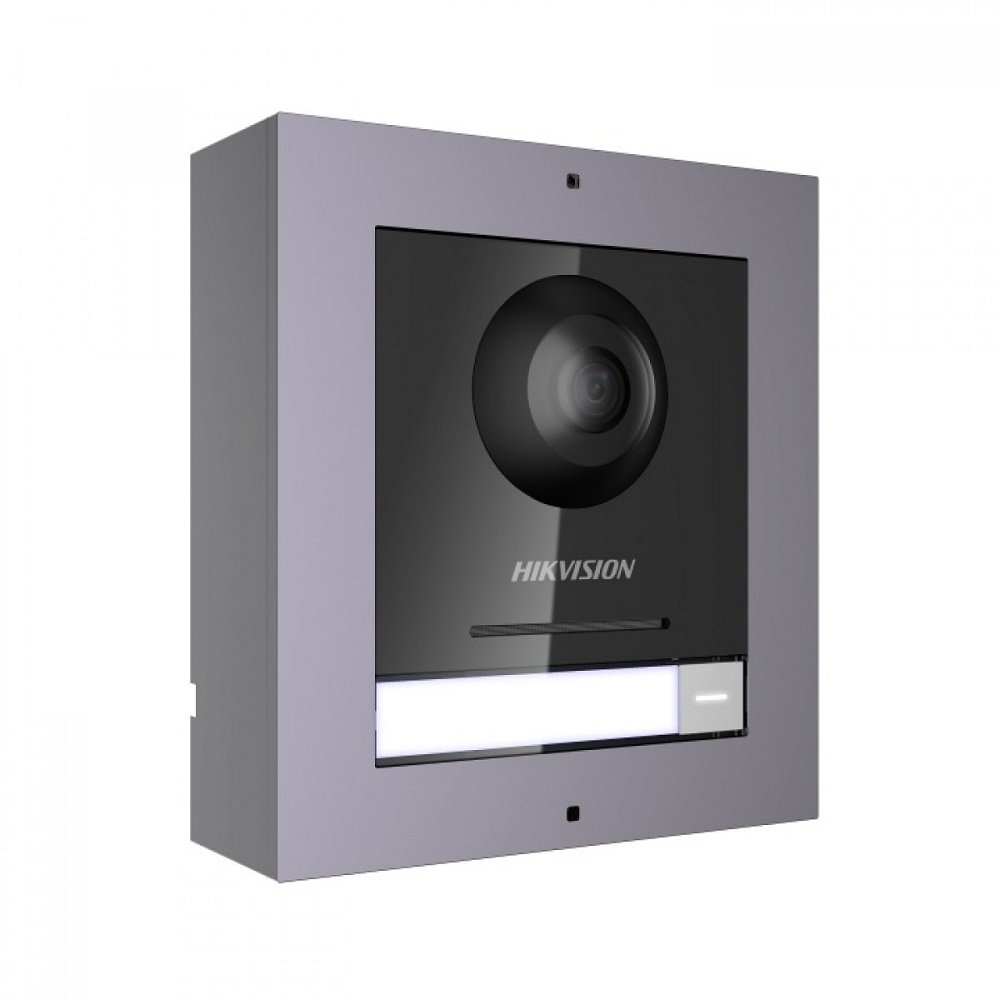

Hikvision DS-KD8003-IME1/Surface

Please login for price

Hikvision DS-KD8003-IME1/Surface Generation-2 2MP PoE IP Video Intercom Station – Includes Surface-mount Accessory – 12VDC Powered or 48VDC PoE for Power & Data

Hikvision DS-KABD8003-RS1

Hikvision DS-KABD8003-RS1 Single-module Surface-mount Weatherproof Rain-shield Unit

Temporarily unavailable

Warranty: 3 Years

Description

Hikvision DS-KD8003-IME1/Surface Generation-2 2MP PoE IP Video Intercom Station – Includes Surface-mount Accessory – 12VDC Powered or 48VDC PoE for Power & Data

Features :-

  • CMOS 2MP HD colorful camera
  • Fisheye 180° wide angle field of view
  • 1 Call Button
  • 1-ch Indoor station access
  • 2 relays for door lock control
  • IR Supplement
  • 10/100Mbps Self-adaptive Ethernet
  • RS-485
  • 4-ch alarm input
  • IP65
  • 12VDC or standard POE
  • Provides video intercom and access control functionality
  • Embedded MCU processor and Linux OS
  • Image enhancements include back-light compensation, digital noise reduction, and wide dynamic range
  • Noise suppression and echo cancellation for clear sound
  • H.264 video compression
  • Tampering alarm
  • ONVIF compliant
  • Dimensions: 107 x 117 x 46 mm
  • FCC, CE, and cUL certified
System Parameters
Operation System: Embedded Linux Operation System
Camera Parameters
Field of view: 180° (Horizontal), 96°(Vertical)
Video Parameters
Anti-flicker frequency: 50 Hz, 60 Hz
Audio Parameters
Audio Input: Built-in Omnidirectional Microphone
Audio Compression Standard: G.711 U
Audio Compression Rate: 64 Kbps
Audio Quality: Noise Suppression and Echo Cancellation
Network Parameters
Ethernet: 10/100 Mbps Self-Adaptive Ethernet
Network Protocol: TCP/IP, RTSP
Light Supplement
Light Supplement Mode: IR Supplement
Device Interfaces
I/O Input: 4
General
Power Consumption: ≤10 W
Working Temperature: -40° C to 60° C (-40° F to 140° F)
IP Protection Level: IP65

Hikvision Intercom Designer Tool -> Hikvision Intercom Design Tool

Hikvision DS-KD8003-IME1/Surface Data-sheet

Hikvision DS-KD8003-IME1/Surface Configuration Guide

Hikvision DS-KD8003-IME1/Surface User Manual

Hikvision 2nd Gen IP Intercom Brochure
