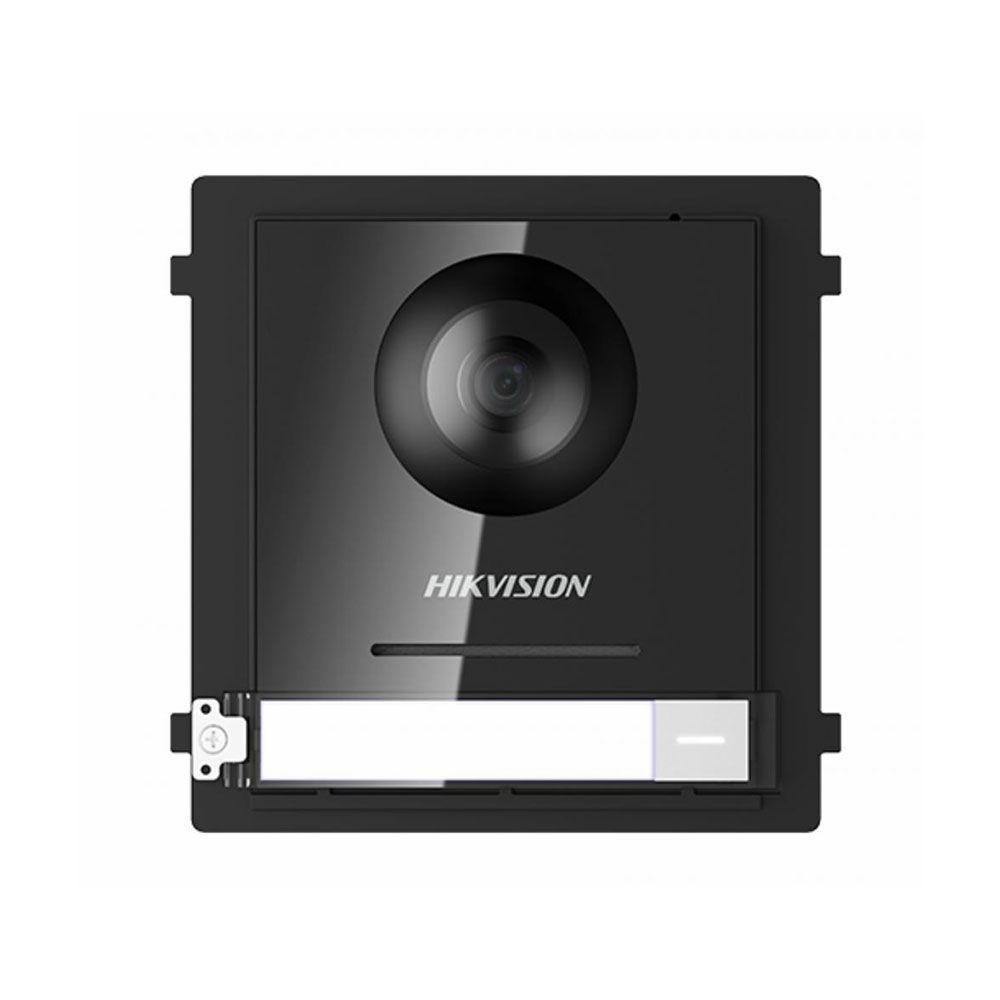

Hikvision DS-KD8003-IME1

Please login for price

Hikvision DS-KD8003-IME1 Generation-2 2MP PoE IP Video Intercom Camera Module – Requires Surface-mount or Flush-mount Accessories – 12VDC Powered or 48VDC PoE for Power & Data

Hikvision DS-KD-ACW1

Hikvision DS-KD-ACW1 Aluminium GEN2 IP Intercom Door Station Housing Frame - Surface Mount - Supports 1 Module

Temporarily unavailable

Warranty: 3 Years

Available on backorder

Description

Hikvision DS-KD8003-IME1 Generation-2 2MP PoE IP Video Intercom Camera Module – Requires Surface-mount or Flush-mount Accessories – 12VDC Powered or 48VDC PoE for Power & Data

Features :-

  • CMOS 2MP HD colorful camera
  • Fisheye 180° wide angle field of view
  • 1 Call Button
  • 1-ch Indoor station access
  • 2 relays for door lock control
  • IR Supplement
  • 10/100Mbps Self-adaptive Ethernet
  • module connection with RS-485
  • 4-ch alarm input
  • IP65
  • 12VDC or standard POE
  • Provides video intercom and access control functionality
  • Embedded MCU processor and Linux OS
  • Image enhancements include back-light compensation, digital noise reduction, and wide dynamic range
  • Noise suppression and echo cancellation for clear sound
  • H.264 video compression
  • Tampering alarm
  • Supports sub-module access (eight maximum)
  • ONVIF compliant
  • Dimensions: 98 x 99.8 x 43.9 mm
  • FCC, CE, and cUL certified

Network Parameters

  • Ethernet: 10/100 Mbps Self-Adaptive Ethernet
  • Network Protocol: TCP/IP, RTSP

Alarm Parameters

  • Alarm Input: Tampering Alarm

Audio Parameters

  • Audio Input: Built-in Omnidirectional Microphone
  • Audio Output: Built-in Loudspeaker(More than 85 dB within 20 cm )
  • Audio Compression Standard: G.711 U
  • Audio Compression Rate: 64 Kbps
  • Audio Quality: Noise Suppression and Echo Cancellation

General

  • Power Supply: 12 VDC/PoE ( IEEE 802.3af)
  • Power Consumption: ≤10 W
  • Working Temperature: -40° C to +60° C (-40° F to 140° F)
  • Working Humidity: 10% to 95%
  • IP Protection Level: IP65
  • Dimensions(L × W × H): 98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″)

Video Parameters

  • Video Compression Standard: H.264
  • Resolution: Main Stream: 1920 × 1080 Sub Stream: 720 × 480
  • Camera: Low Illumination 2 MP HD IR Camera

Device Interfaces

  • I/O Input: 4
  • I/O Output: 2

Light Supplement

  • Light Supplement Mode: IR Supplement

System Parameters

  • Processor: Embedded MCU Processor
  • Operation System: Embedded Linux Operation System

Hikvision Intercom Designer Tool -> Hikvision Intercom Design Tool

Hikvision DS-KD8003-IME1 Data-sheet

Hikvision 2nd Gen IP Intercom Brochure

Hik-Connect from Hikvision App Store
