Hikvision DS-PD1-MC-RS

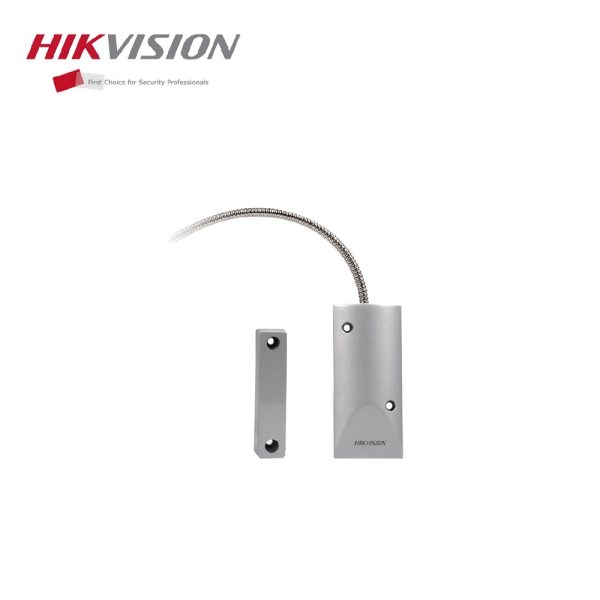

Hikvision DS-PD1-MC-RS Wired Alarm Magnetic Heavy Duty Door-Contact / Reed-Switch for Shutter / Roller / Rolling door – Metal Casing
SKU: DS-PD1-MC-RS
Categories: Intrusion & Alarms, Wired Alarm Detectors, Wired Alarm Door Contact Detectors, Wired Alarms
Tags: Access Control, Alarm, Door Contact Sensor, Hikvision, Reed Switch
Hikvision DS-PD1-MC-RS Wired Alarm Magnetic Heavy Duty Door-Contact / Reed-Switch for Shutter / Roller / Rolling door – Metal Casing
Key Features :-
- Design: Built specifically for rolling doors and shutters.
- Shell Material: Durable metal housing for high resistance to physical damage.
- Active Gap: 65 mm (the maximum distance between the magnet and sensor to trigger a state change).
- Connection Type: Normally Closed (NC) alarm output.
- Electrical Limits: Up to 100 VDC and 500 mA capacity.
- Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F).
- Dimensions: Two-part sensor measuring 108 mm x 40 mm x 8 mm and 88 mm x 20 mm x 21 mm.
Detection Performance
- Detection Gap: ≥65
Interface
- Alarm Output: Normally Closed
Electrical Characteristics
- Typical Voltage: ≤100 VDC（Capacity）
- Typical Current: ≤500 mA（Capacity）
General
- Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity: 10% to 90%
- Shell Material: Metal
- Dimension (WxHxD): 108mm x 40mm x 8mm; 88mm x 20mm x 21mm
