Hikvision DS-PDCM15PF-IR

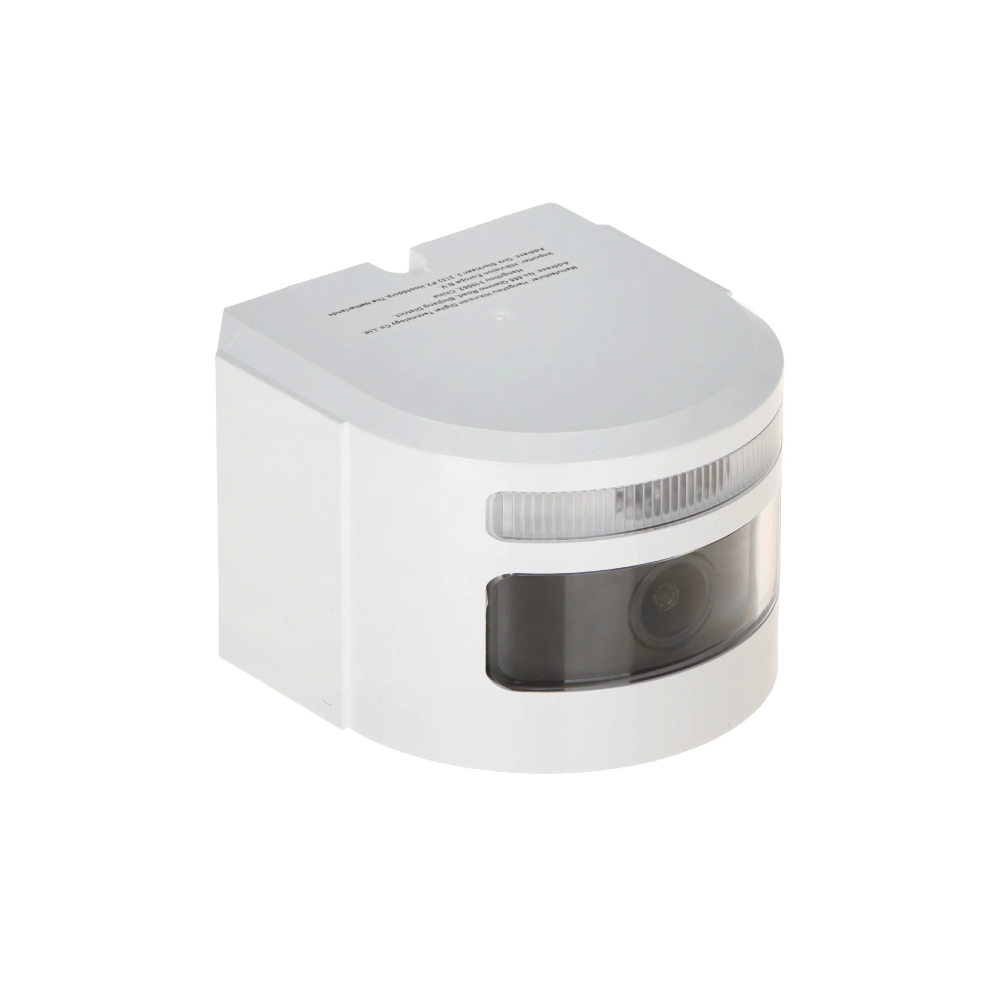

Hikvision DS-PDCM15PF-IR AX Pro RF Camera Module – IP66-Rated Weatherproof – 2mm Fixed Lens – Works With DS-PDTT15AM-LM-WB Outdoor PIR Detector
SKU: DS-PDCM15PF-IR
Categories: Intrusion & Alarms, Wireless Alarm Detector Accessories, Wireless Alarm Detectors, Wireless Alarms
Tags: AX Pro, Battery-Powered, Camera, Hikvision, Infrared, IP66-Rated, IR, Microwave, Module, Outdoor, PIR, Weatherproof, Wireless
Hikvision DS-PDCM15PF-IR AX Pro RF Camera Module – IP66-Rated Weatherproof – 2mm Fixed Lens – Works With DS-PDTT15AM-LM-WB Outdoor PIR Detector
Key Features :-
- 1/2.7″ Progressive Scan CMOS
- 2.0 mm fixed lens
- 3D Digital Noise Reduction
- Easy Installation
- The direction of the Angle can be adjusted to fit the TT Detector’s Angle
- Protection Level IP66
More about Hikvision AX Pro Alarms
Hikvision AX Pro Alarm Brochure
Detection Performance
- Detection Method: Video Verification
Feature
- Digital Noise Reduction: 3D
- Focal length: 2.0mm @ F2.25
Video
- Field Angle: 137.2°(H), 80.1°(V)
- Image Type: JPEG
- Resolusion: 640*480; 320*240; 160*120
- Fill Light: Infrared Light
- Fill Range: 15m
- Day/Night Switch: Auto
Interface
- Communication Interface: 1* 12-Bit Data Interface
Electrical Characteristics
- Power Supply: 3 VDC
- Power Consumption: 1200mA
General
- Operation Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
- Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
- Operation Humidity: 10% to 90%
- IP Rate: IP66
- Dimension (WxHxD): 74.1mm x 72.35mm x 53mm
- 155g
