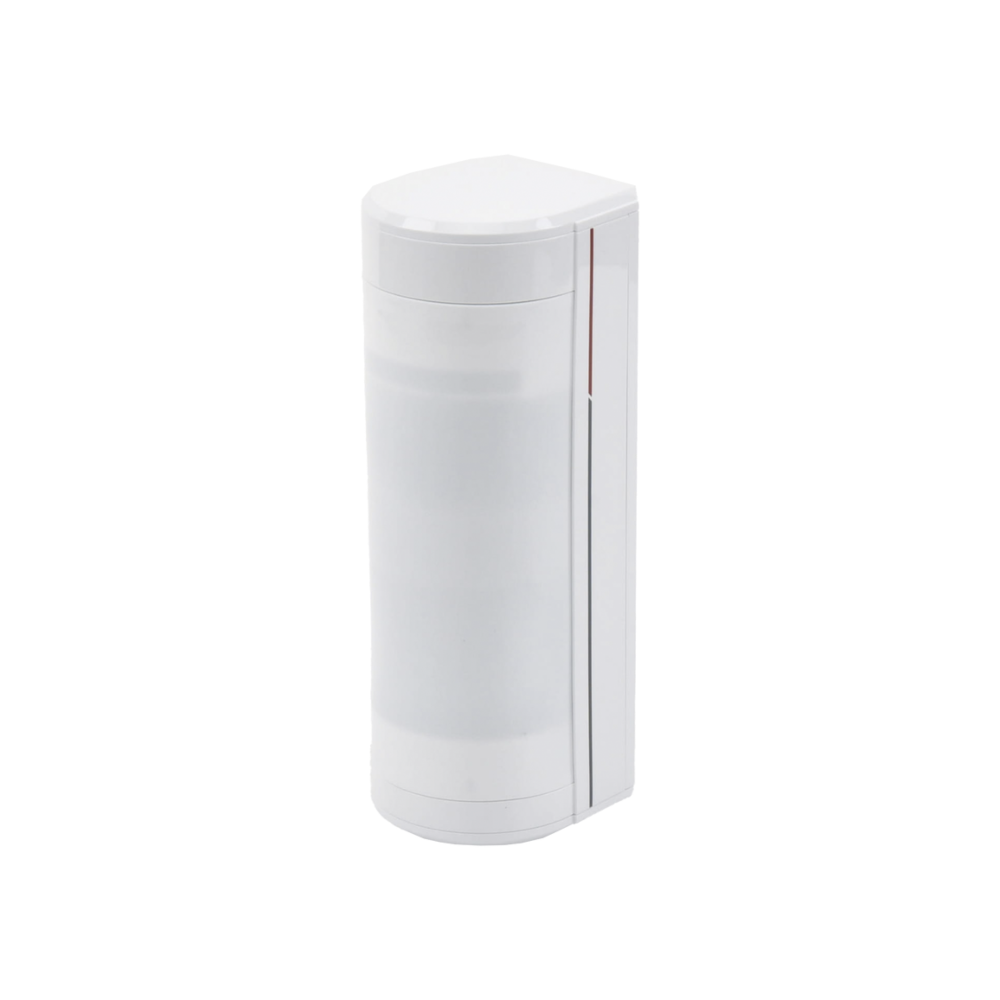

Hikvision DS-PDTT15AM-LM-WB
Hikvision DS-PDTT15AM-LM-WB 433MHz Battery-Operated Wireless Outdoor Tri-Tech (2 * PIR + 1 * Microwave) AM (Anti-Masking) PIR Detector – IP65 Rated Weatherproof – Up To 15m Distance Coverage with 90° / 180° Adjustable Angle – 40Kg Pet Immunity – To Work with AX Pro Hub
Hikvision DS-PDTT15AM-LM-WB 433MHz Battery-Operated Wireless Outdoor Tri-Tech (2 * PIR + 1 * Microwave) AM (Anti-Masking) PIR Detector – IP65 Rated Weatherproof – Up To 15m Distance Coverage with 90° / 180° Adjustable Angle – 40Kg Pet Immunity – To Work with AX Pro Hub
Key Features :-
- 90°@180° adjustable coverage
- IP65 weather resistance for outdoor application
- Active IR anti-masking
- Multiple enrollment methods and easy installation
- Frequency hopping against jamming for reliable transmission
More about Hikvision AX Pro Alarms
Hikvision AX Pro Alarm Brochure
Detection Performance
- Detection Method: Passive Infrared
- Detection Range: 15 m
- Detection Angle: 90° / 180° adjustable
- Detection Zones: 92
- Detectable Speed: 0.3～2m/s
- Sensitivity: Auto; low
- White Light Filter: 10000lux
- Microwave Frequency: 24GHz (24.15~24.25GHz)
- Pet Immunity: Up to 40 kg
- Digital Temperature Compensation: Support
- Anti-masking: support
- Adaptable Coverage: support; pattern mask included
Feature
- Digital Processing: tri-signal logic
- Sealed Optics: Support
- Tamper Protection: Front; Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
- Anti-sway analytics: support
Interface
- Power Switch: Power up enrolling
- LED Indicator: Green (top PIR), red (microwave), orange (bottom PIR), green+orange (mask), blue (alarm)
Transmission
- Transmission Technology: Tri-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 433MHz
- Transmission Security: AES-128 Encryption
- Transmission Range (Free Space): 1Km
- Frequency Hopping: Support
- Enrolling Method: Power up; Remote ID; QR Code
Electrical Characteristics
- Standard Battery Life: Up to 5 years (standby time)
- Power Supply: Battery powered
- Battery Type: CR123A × 5
- Typical Voltage: 3V
General
- Operation Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
- Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
- Operation Humidity: 10% to 90%
- IP Rate: IP65
- Dimension (WxHxD): 75 mm × 202 mm × 73 mm
- Weight: 600 g
- Mounting Height: 0.8m to 1.2m mount
- Mounting Method: Wall
- Application Scenario: Outdoor
