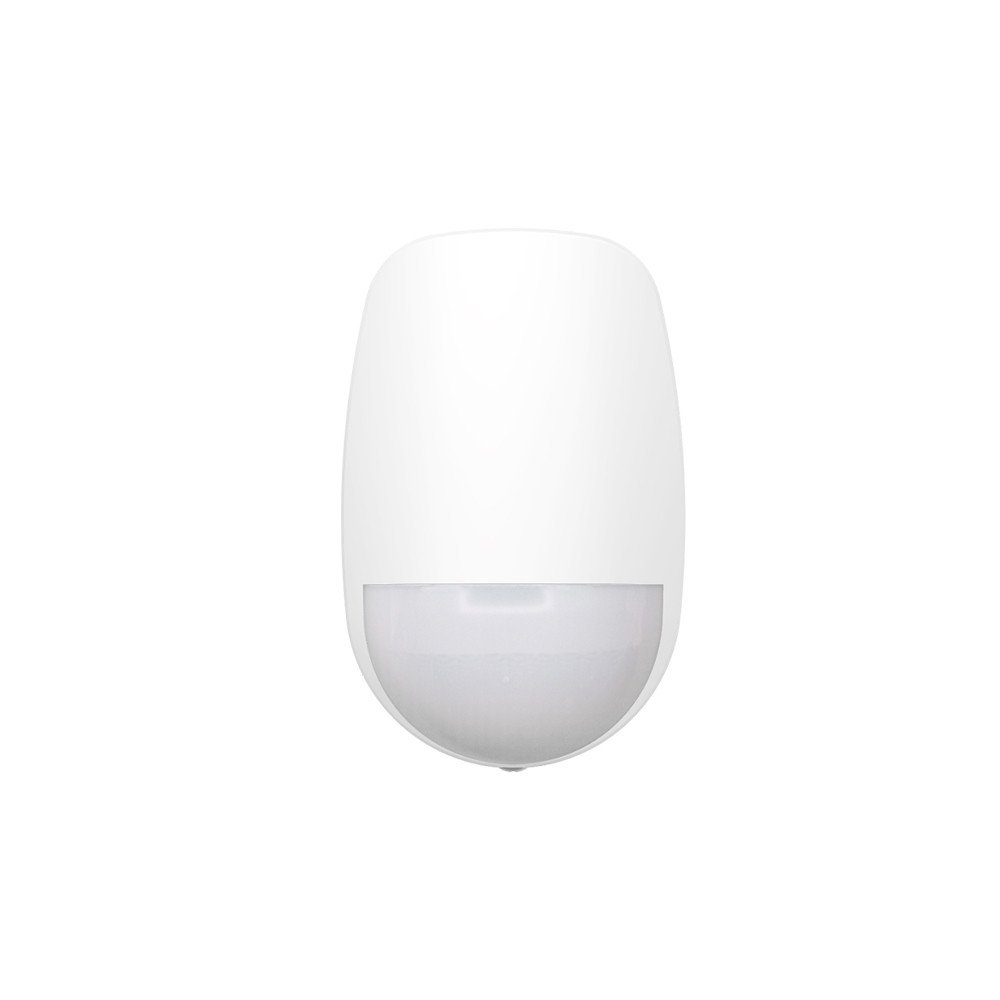

Hikvision DS-PDD12P-EG2

Hikvision DS-PDD12P-EG2 Wired Alarm Dual-tech (PIR + Microwave) Detector – Detection Range: 12m / 85.9° – Up to 30kg pet Immunity

Hikvision DS-PDD12P-EG2 Wired Alarm Dual-tech (PIR + Microwave) Detector – Detection Range: 12m / 85.9° – Up to 30kg pet Immunity

Features :-

  • Detection Range: 12m / 85.9°
  • Up to 30kg pet immunity
  • Automatic sensitivity
  • Digital temperature compensation
  • 52 zones of 3D optics including creep-zone protection, full coverage without dead angle
  • selectable EOL resistors for alarm and tamper-proof wiring
  • Sealed optics preventing insect interference
  • 24Ghz microwave
  • 9 to 16 V wide voltage adaptation with polarity reverse connection protection
  • Wall/Ceiling-mounting brackets available (sold separately)
  • IFT technology prevents false alarms

Detection Performance

  • Detection Method: Passive Infrared; Microwave
  • Detection Range: 12m
  • Detection Angle: 85.9°
  • Detection Zones: 52
  • Detectable Speed: 0.3~2m/s
  • Sensitivity: Auto; Pet
  • Pet Immunity: 30Kg
  • White Light Filter: 6500lux
  • Microwave Frequency: 24GHz(24.15~24.25GHz)
  • Digital Temperature Compensation: Support
  • Creep Zone Protection: Support

Feature

  • Digital Processing: Support
  • Sealed Optics: Support
  • Tamper Protection: Front

Interface

  • Alarm Output: Normally Closed
  • LED Indicator: Green(PIR), Orange(Microwave), Blue(Alarm)

Transmission

  • Transmission Method: Wired

Electrical Characteristics

  • Power Supply: 9 to 16 VDC
  • Typical Voltage: 12 VDC
  • Power Consumption: 17mA Max

General

  • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)65.7 mm (2.59 “) × 103.8 mm (4.09 “) × 45.5 mm (1. 79 “)
  • 99g (3.5 oz)
  • Mounting Height1.8 m to 2.4 m
  • Mounting MethodWall
  • Application ScenarioIndoor
  • BracketOptional wall & ceiling accessory
