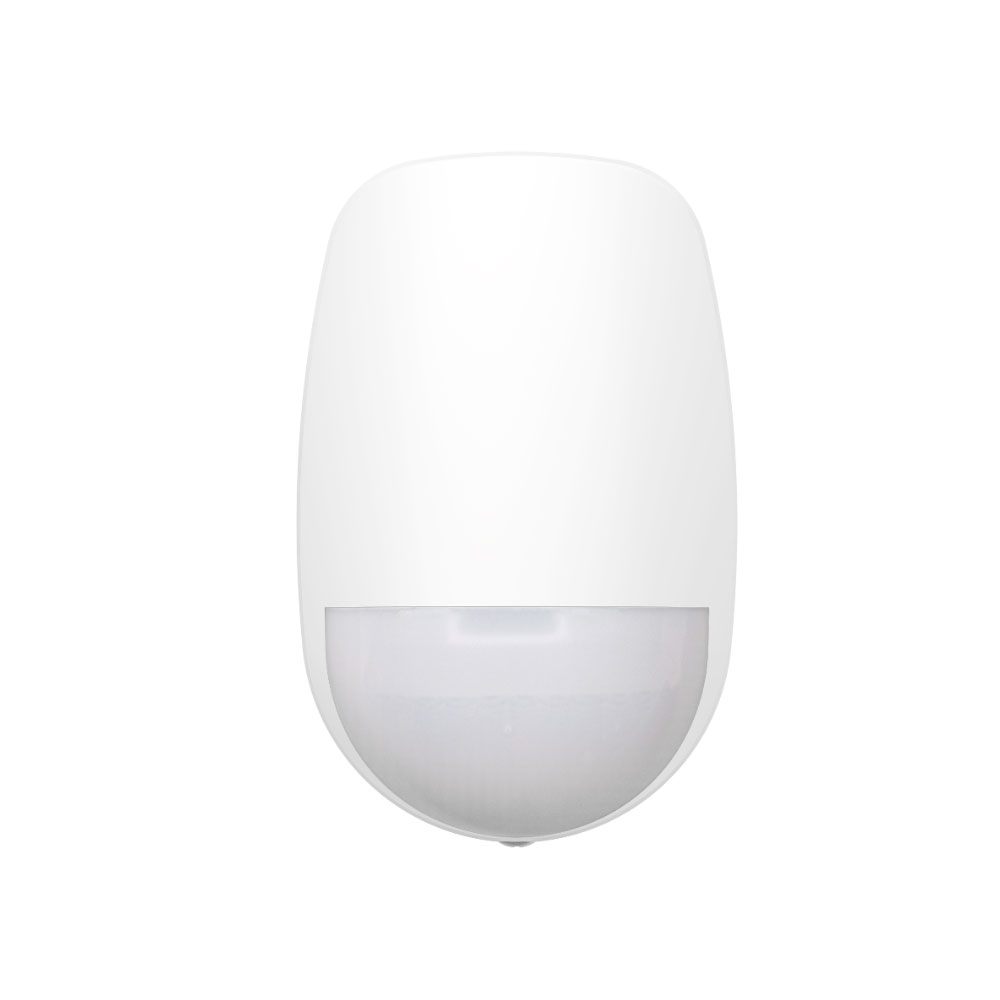

Hikvision DS-PDD15AM-EG2

Hikvision DS-PDD15AM-EG2 Wired Internal 15m Dual-technology (PIR + Microwave) Anti-Masking PIR Detector with 85.9° Wide Angle Detection

Hikvision DS-PDD15AM-EG2 Wired Internal 15m Dual-technology (PIR + Microwave) Anti-Masking PIR Detector with 85.9° Wide Angle Detection

Features :-

  • Detection Range: 15m / 85.9°
  • Anti-masking, Anti-cloaking and Anti-blocking detection for higher security scenario
  • Automatic sensitivity and 24Ghz smart microwave
  • Digital temperature compensation and IFT technology

Hikvision Product-Link -> DS-PDD15AM-EG2

Detection Performance

  • Detection Method: Passive Infrared; Microwave
  • Detection Range: 15m
  • Detection Angle: 85.9°
  • Detection Zones: 52
  • Detectable Speed: 0.3~2m/s
  • Sensitivity: Auto; Low
  • White Light Filter: 6500lux
  • Microwave Frequency: 24GHz (24.15~24.25GHz)
  • Digital Temperature Compensation: Support
  • Creep Zone Protection: Support

Feature

  • Digital Processing: Support
  • Sealed Optics: Support
  • Tamper Protection: Front
  • Anti-Masking: Support
  • Anti-Cloaking: Support
  • Anti-Blocking: Support

Interface

  • Alarm Output: Normally Closed
  • LED Indicator: Green(PIR), Red(Microwave), Blue(Alarm)

Transmission

  • Transmission Method: Wired

Electrical Characteristics

  • Power Supply: 9 to 16 VDC
  • Typical Voltage: 12 VDC
  • Power Consumption: 25mA Max

General

  • Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • Dimension (W x H x D): 65.7 mm (2.59 “) × 103.8 mm (4.09 “) × 45.5 mm (1. 79 “)
  • Weight: 100g
  • Mounting Height: 1.8 m to 2.4 m
  • Mounting Method: Wall
  • Application Scenario: Indoor
  • Bracket: Optional wall & ceiling accessory
