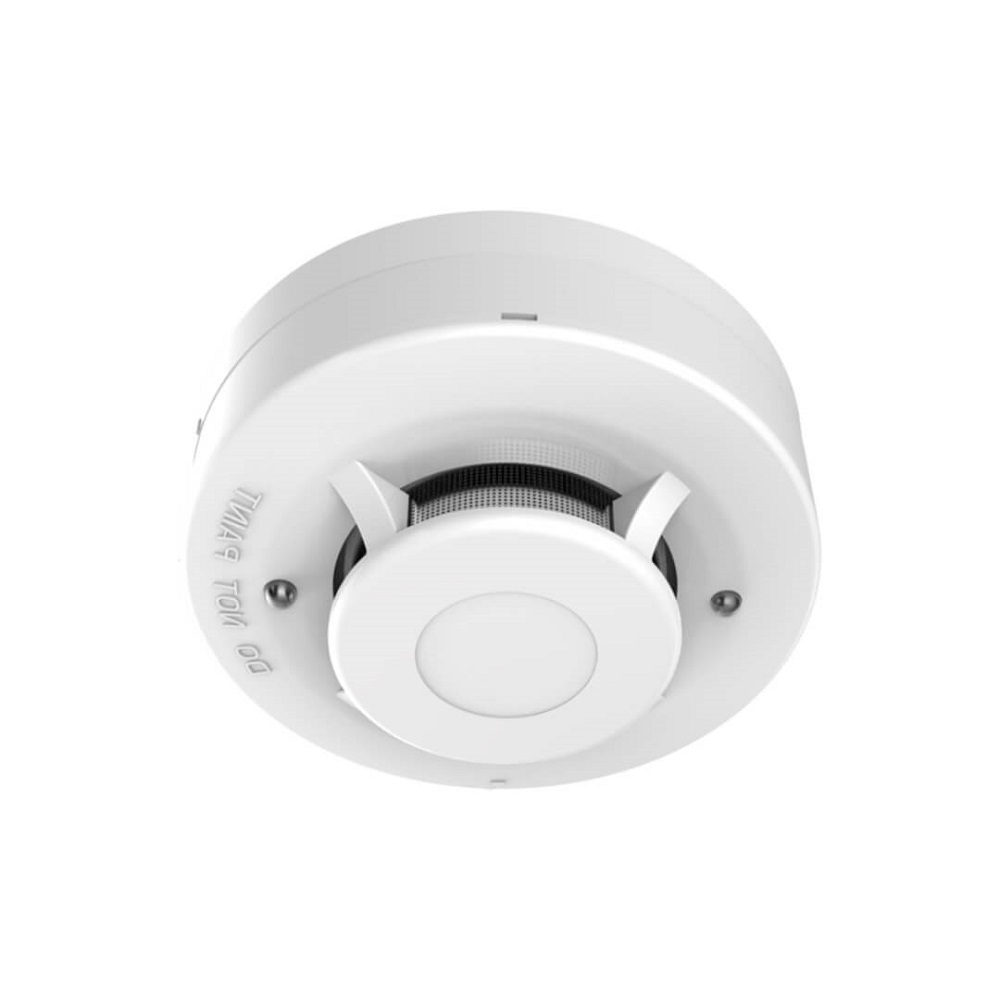

Hikvision DS-PDSMK-4BAR

Hikvision DS-PDSMK-4BAR 4-Wire Photoelectric Smoke Detector – Advanced Detection – 360° Visibility – N/O & N/C Alarm Output – 85dB Sounder – Supports Auto-Reset Function

Hikvision DS-PDSMK-4BAR 4-Wire Photoelectric Smoke Detector – Advanced Detection – 360° Visibility – N/O & N/C Alarm Output – 85dB Sounder – Supports Auto-Reset Function

Features :-

  • Advanced algorithms provide advanced detection discrimination
  • Sleek low-profile housing design
  • Stable photoelectric smoke sensing chamber. No adjustment or replacement required
  • High immunity against unwanted alarms
  • Surface-mount device (SMD) circuit board design
  • Dual LEDs for 360° visibility
  • 4-wire models for DC 12V operation
  • 4-wire models include a N/C or N/O alarm relay output
  • 4-wire models available with auto-reset function
  • 4-wire models available with an internal sounder

Detection Performance

  • Alarm Threshold: (0.10 ~ 0.16) dB/m; (1.51 ~ 2.73) % / ft obscuration

Hardware Features

  • Loudspeaker: ≥ 85 dB @ 3 m
  • Indicator: Two continuous emitting red LEDs

Electrical Characteristics

  • Power Supply: DC (10.2 ~ 13.8)V

General

  • Operation Temperature: 0 °C ~ +50 °C
  • Operation Humidity: 0 % ~ 98 % RH, non-condensing
  • Dimension(W x H x D): Φ 100 mm × 35 mm
  • IP Rate: IP-42
  • Installation Method: Ceiling mounted
  • Storage Temperature: -25 °C ~ +80 °C
