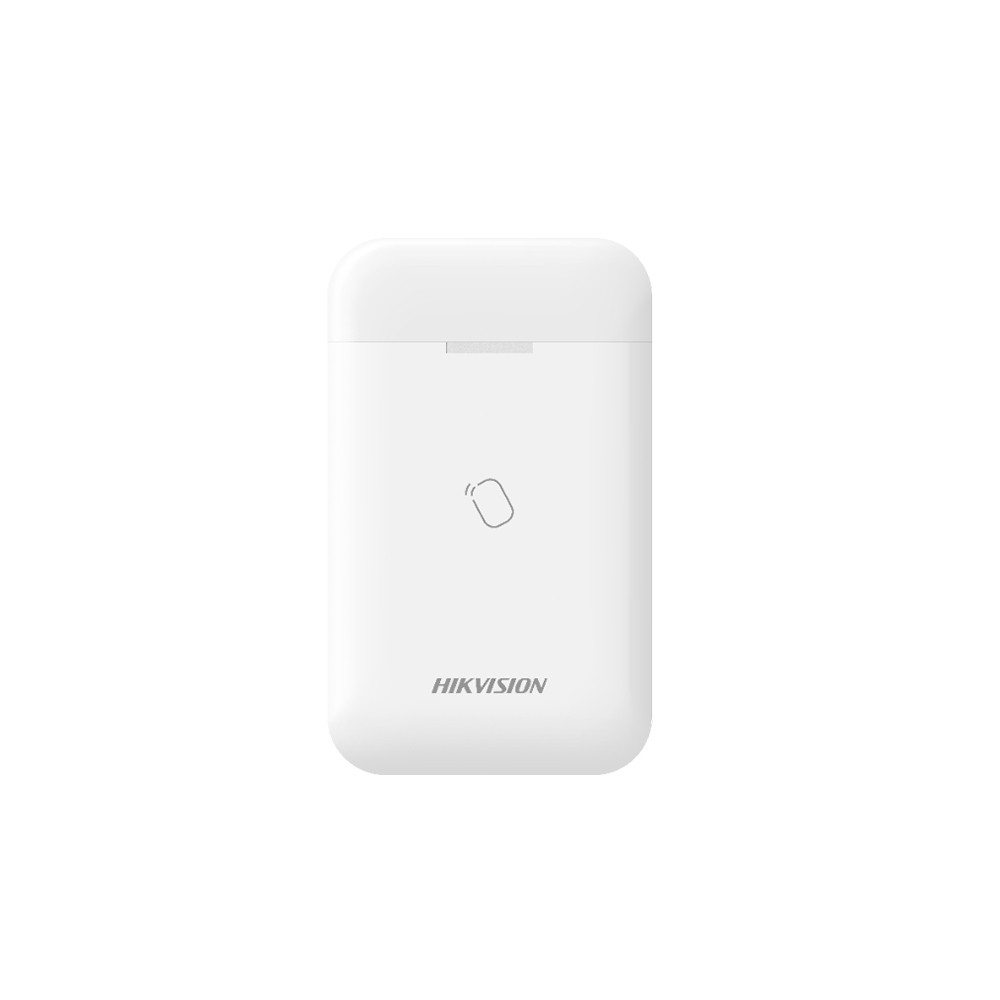

Hikvision DS-PT1-WB

Hikvision DS-PT1-WB 433MHz Battery-Operated Wireless Tag Reader – Supports MiFare (13.56MHz) cards/fobs – To Work with AX Pro Hub

Hikvision DS-PT1-WB 433MHz Battery-Operated Wireless Tag Reader – Supports MiFare (13.56MHz) cards/fobs – To Work with AX Pro Hub

Features :-

  • 433MHz two-way wireless communication
  • AES-128 encryption
  • LED display, show the different feedbacks with easy understanding
  • Operation: Stay arm/away arm/disarm by areas
  • Arming process with fault confirm, more secure
  • Patrol tag check in
  • Front and rear panel tamper-proof

Hikvision Product-Link -> DS-PT1-WB

Hardware Features

  • Power Switch: Power on/off

Electrical Characteristics

  • Battery Type: Three AA batteries
  • Operation Humidity: 10% to 90% (no condensing)
  • Operation Temperature: -10°C to +55°C (-4°F to +122°F)
  • Power Consumption: Quiescent current: 110 uA; Max current: 292mA; Voltage: 1.5 VDC
  • Battery Life Span: 2 years (swipe tag 10 times per day )

Wireless Transmission

  • RF Frequency: 433 MHz
  • RF Modulation: 2GFSK
  • RF Distance: 900m(open area)

Display

  • Indicator: 5, area(blue), fault(orange), arm(blue), disarm(green), alarm(red), signal(red/green)

General

  • Installation Method: Wall mounting
  • Dimension(WxHxD): 75*124*21 mm
  • Color: white
  • Weight: 176g (with battery)

Installer App -> Hik-Partner Pro

End-user App -> Hik-Connect
