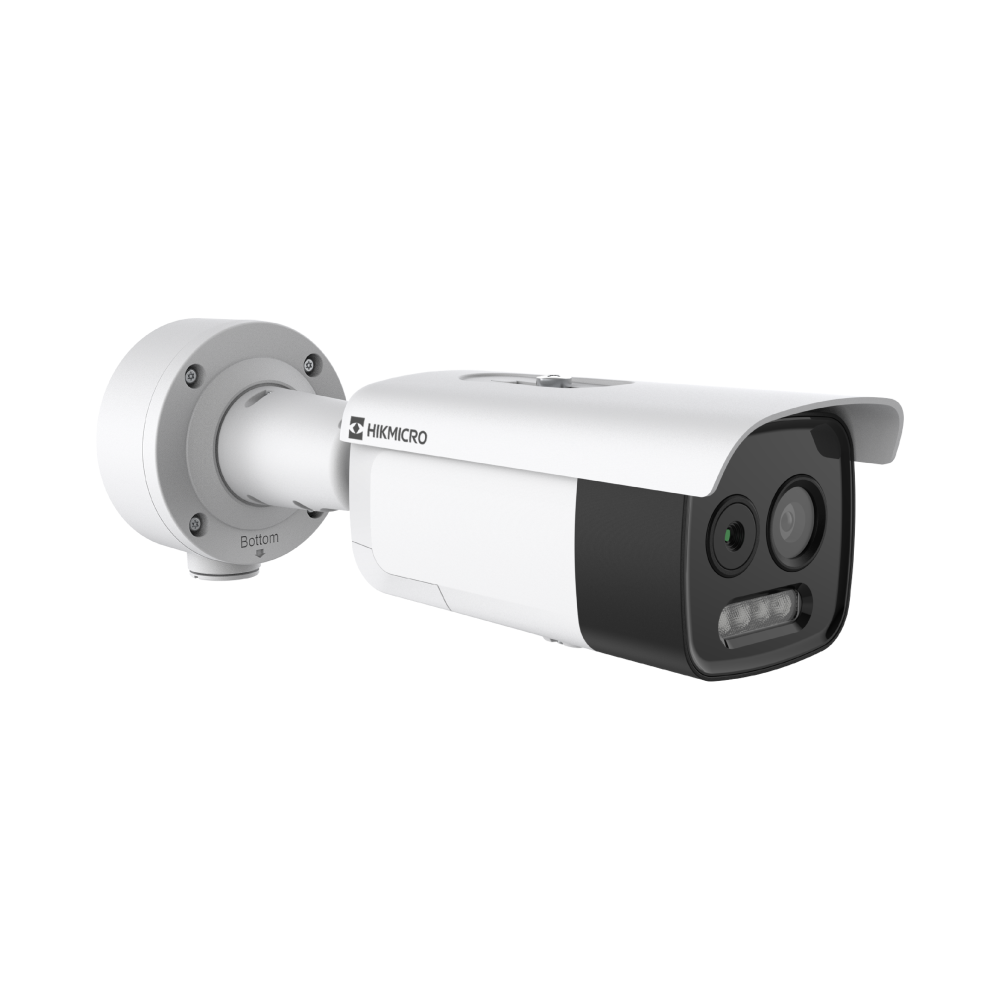

Hikvision HikMicro HM-TD2628T-7/G1/T3A
Hikvision HikMicro HM-TD2628T-7/G1/T3A HeatPro Series Thermal & Optical Bi-spectrum Thermography Network Bullet Camera – AI Features – Deep Learning – 256 x 192 Thermal Resolution + 5MP Optical Resolution – 6.9mm Thermal Fixed Lens + 8mm Optical Fixed Lens – 60m IR + 60m White Light Range – Strobe + Siren – Audio & Alarm Input / Output
SKU: HM-TD2628-7/G1/T3A-8
Categories: CCTV / Surveillance, IP Cameras, IP Surveillance, IP Thermal Cameras
Tags: 120dB True-WDR, 5MP, Alarm, Bispectral Camera, Bullet, Bullet Camera, Camera, Dual-Channel, Dual-Lens Camera, Dual-Sensor Camera, Fixed Lens, HeatPro, HikMicro, Hikvision, Human Detection, IP Camera, IR, Network Camera, Perimeter Protection, PoE, Siren, Strobe, Thermal Camera, Thermography, VCA 3.0, Vehicle Detection, Weatherproof, White Light LED
Hikvision HikMicro HM-TD2628T-7/G1/T3A HeatPro Series Thermal & Optical Bi-spectrum Thermography Network Bullet Camera – AI Features – Deep Learning – 256 x 192 Thermal Resolution + 5MP Optical Resolution – 6.9mm Thermal Fixed Lens + 8mm Optical Fixed Lens – 60m IR + 60m White Light Range – Strobe + Siren – Audio & Alarm Input / Output
Key Features :-
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD ≤ 25mK (25°C, F1.0)
- 5MP Optical Resolution
- Extended human/vehicle detection distance and ultra low false alarm with GUANLAN Large-Scale AI Model
- Support smart hybrid light: white light, IR and smart mode
- Temperature exception alarm for fire prevention, -20 °C to 650 °C (-4 °F to 1202 °F), Max. (± 2 °C, ± 2%)
- Support fire point detection algorithm
- Support smoking detection algorithm
- Support sun-reflection filter and forklift alarm filter algorithm (forklift alarm filter is exclusive with VCA function)
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
- 6.9mm Thermal Fixed Lens + 8mm Optical Fixed Lens
- 60m IR + 60m White Light Range
- Strobe + Siren – Audio & Alarm Input / Output
Thermal Module
- Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution: 256 × 192
- Pixel Pitch: 12 μm
- Spectral Range: 8 μm to 14 μm
- NETD: ≤25 mK (25°C, F1.0)
- Focal Length: 6.9 mm
- IFOV: 1.74mrad
- Field of View: 24.9° × 18.7° (H × V)
- Min. Focusing Distance: 1 m
- Aperture: F1.0
- Digital Zoom: ×2, ×4
Optical Module
- Image Sensor: 1/2.7″ Progressive Scan CMOS
- Resolution: 5MP, 2688 × 1944
- Min. Illumination: 0.0089 Lux @ (F2.25,AGC ON), 0 Lux with IR
- Shutter Speed: 1 s to 1/100,000 s
- Focal Length: 8mm
- Field of View: 39.4° × 22° (H × V)
- Aperture (Range): F1.6
- WDR: 120 dB
Image Effect
- Bi-spectrum Image Fusion: Display the details of optical channel on thermal channel
- Picture in Picture: Display partial image of thermal channel on the full screen of optical channe
- Target Coloration: Yes. Supported in white hot and black hot mode.
Illuminator
- Light Supplement: Hybrid (IR, White light or Smart mode)
- IR Distance: Up to 60m
Audible and Visual Alarm
- White Light Range: Up to 60 m
- Visual Alarm: Yes. White light alarm with adjustable flashing frequencies
- Audio alarm: Yes, for two types of audible alarm (VCA and Temperature Exception) – 2 preset voice alerts (one for each) – 6 importable user-defined voice alerts (6 options shared in the two types)
Smart Function
- VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement: 3 temperature measurement rule types (point, area, line), 21 rules in total
- Temperature Range: -20 °C to 650 °C (-4° F to 1202° F)
- Temperature Accuracy: ±2°C
- Fire Detection: Dynamic fire detection, up to 10 fire points detectable
Video and Audio
- Main Stream:
-
- Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
- Optical: 50 Hz: 25 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720); 60Hz: 30 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
- Sub-stream:
-
- Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)
- Optical: 50 Hz: 25 fps (704 × 576, 352 × 288); 60 Hz: 30 fps (704 × 480, 352 × 240)
-
- Video Compression: Main Stream: H.265 / H.264; Sub-Stream: H.265 / H.264 / MJPEG
- Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Video and Image
- Color Palettes: 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
Network
- Protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP, SRTP
- Network Storage: MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- API: ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), OTAP
- Simultaneous Live View: Up to 20 channels
- User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
- Security: User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- Client: iVMS-4200, Hik-Connect
- Web Browser: Live view (plug-in allowed) : Internet Explorer 11; Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +; Local service : Chrome 57.0+, Firefox 52.0 +
Interface
- Alarm Input: 2 * alarm input (0-5 VDC)
- Alarm Output: 2 * alarm output (alarm response actions configurable)
- Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input: 1, 3.5 mm Mic in/Line in interface; Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio Output: Linear level, impedance: 600 Ω
- Communication Interface: 1 * RJ45 10 M/100 M Self-adaptive Ethernet interface; 1 * RS-485 interface (half duplex)
- Power Output: 12 VDC, max. 1W
General
- Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply: 12 VDC ± 25%, φ 5.5 mm coaxial power plug; PoE (802.3at, class 4)
- Power Consumption: 12 VDC ± 25%: 1A to 1.7 A, max. 16W; PoE (802.3at, class 4): 42.5 V to 57 V, 0.28 A to 0.37 A, max. 16W
- Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F); Humidity: 95% or less
- Protection Level: IP67 Standard; TVS 6000V lightning protection, surge protection, voltage transient protection
- Dimensions: 349.1 mm × 113 mm × 105mm
- Weight: 1710 g
Detection Range Table/Smart Function Range
- VCA Range for Humans: 84 m
- VCA Range for Vehicles: 210 m
Approval
- EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)
- Safety: CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005; LOA: SANS/IEC 60950-1
- Environment: CE-RoHS：2011/65/EU; WEEE: 2012/19/EU; Reach：Regulation(EC) No 1907/2006
- Protection: IP67: IEC 60529-2013
