iSecure ICL-120W60AHSOLARSET(V2)

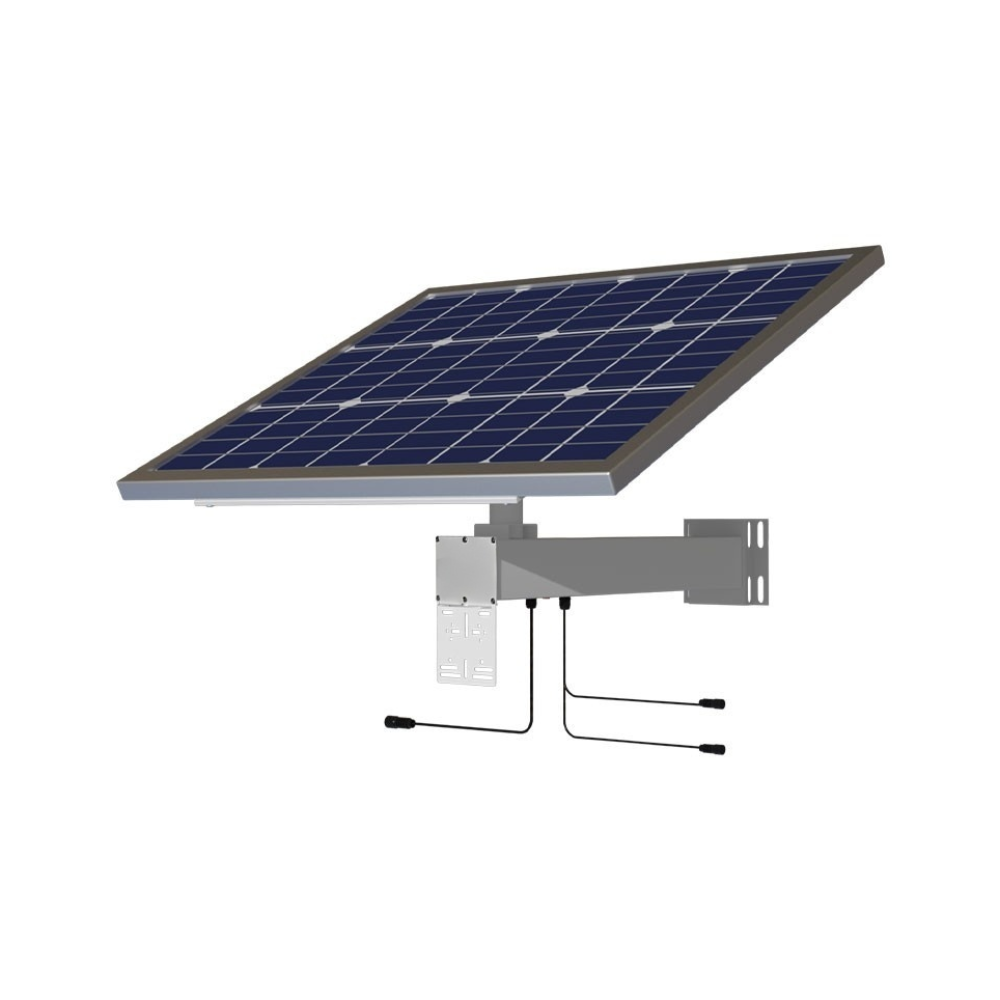

iSecure ICL-120W60AHSOLARSET(V2) 768WH Solar Solution Kit – Includes 1 * 120w Monocrystalline Solar Panel with Mounting Frame + 1 * 60Ah LiFePO4 Rechargeable Solar Battery with Built-in MPPT Controller in a Mounting Arm Bracket – Supports 12VDC & 24VDC Outputs
iSecure ICL-120W60AHSOLARSET(V2) 768WH Solar Solution Kit – Includes 1 * 120w Monocrystalline Solar Panel with Mounting Frame + 1 * 60Ah LiFePO4 Rechargeable Solar Battery with Built-in MPPT Controller in a Mounting Arm Bracket – Supports 12VDC & 24VDC Outputs
Key Features :-
- Reliable 24/7 Power Supply – Operates continuously for 365 days in locations with available sunlight, requiring no external wiring.
- IP65 Fully Enclosed Waterproof Design – Ensures durability and protection against harsh weather conditions.
- High-Capacity LiFePO4 Battery – Offers longer lifespan, superior safety, and stable performance, setting new industry standards.
- Advanced Photovoltaic Panel Technology – High conversion efficiency, excellent low-light performance, and fast charging capability.
- All-Weather Operation – Can charge and function efficiently even on rainy days, ensuring uninterrupted power.
- The iSecure Solar Power Supply System is a cutting-edge solution for off-grid power needs, delivering efficiency, reliability, and cost savings for outdoor applications.
About Product :-
- CCTV Solar Power Supply: 120W60AH 768WH Solution
- Solar Panel: 120W monocrystalline silicon solar panel
- Battery: 60AH12.8V LiFePO4 Battery, total: 768WH
- MPPT Solar Controller: 2 * DC12V + 2 * DC24V Output Ports
- Used for CCTV and general applications

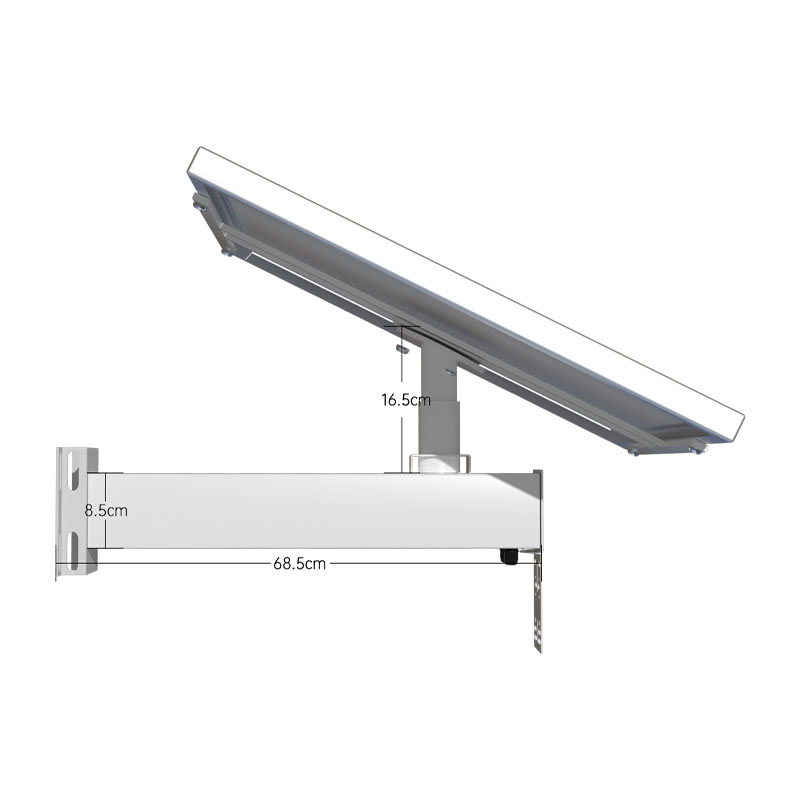

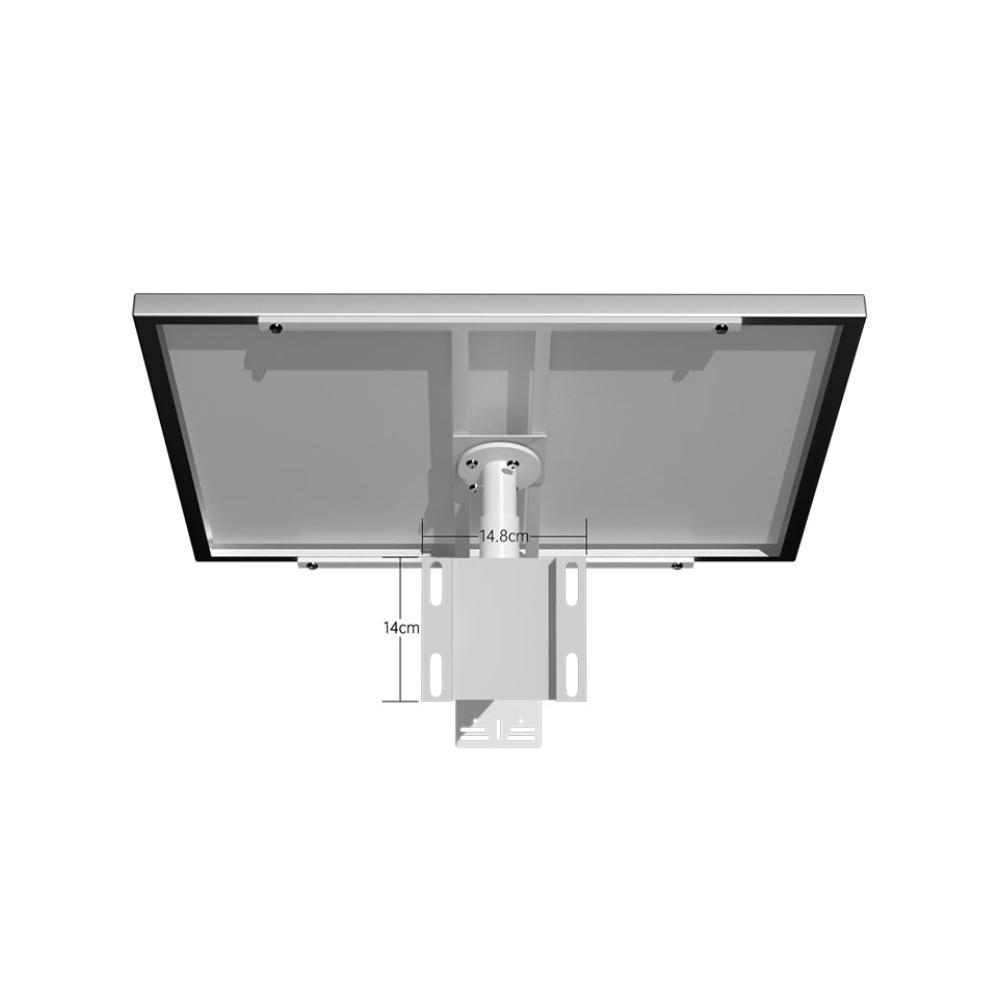

- Suitable for pole-mount & wall-mount installations
- Recommendation -> For long-term surface protection, we recommend applying a natural lanolin-based protective coating, such as WD-40 Specialist Lanolin, after installation and as part of routine maintenance. This will help minimise rust and corrosion while extending the lifespan of the cabinet and mounting accessories.
- Note (1) : Image for illustration purpose only; excludes pole, camera/s and any wireless equipment
- Note (2) : Oversize & overweight item, best for collection; will incur extra freight charges for special freight deliveries, please check freight cost estimate with us prior to ordering.
Solar Panel Specifications
-
Model: ICL-120W60AHSOLARSET(V2)
-
Module packaging: Tempered glass/EVA/cell/EVA backplane
-
Solar silicon crystal: Mono-crystalline silicon
-
Crystalline silicon characteristics: High efficiency of strong light conversion
-
Cell size and quantity: 210*70/36
-
Maximum output power: 120W
-
Maximum operating voltage: 20.52V
-
Maximum operating current: 6.18A
-
Open circuit voltage: 24.9V
-
Short circuit current: 6.5A
-
Tolerance: 3%
-
Maximum system open circuit voltage: 1000V
-

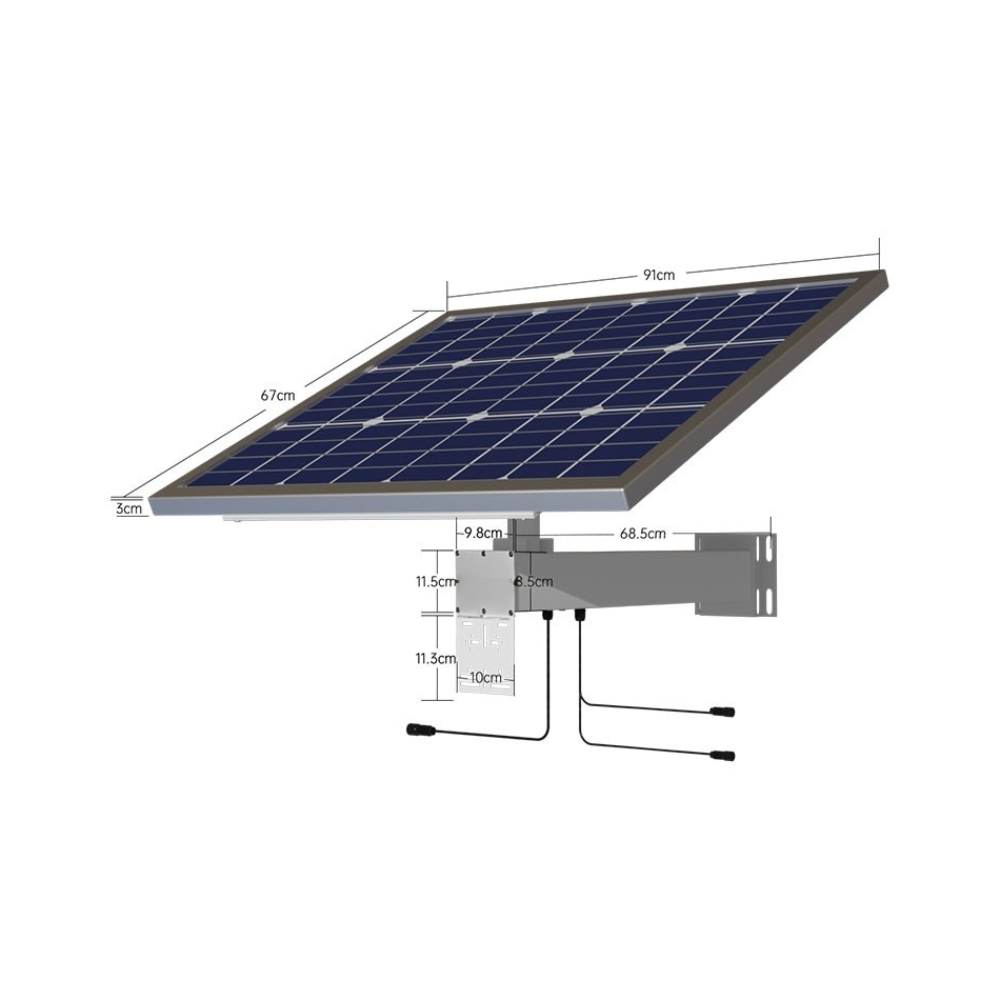

Solar Panel Dimensions: 910mm * 670mm * 30mm
-
Operating temperature range: -40~85℃
-
Relative humidity: <90%
-
Frame thickness: 0.88MM
-
Frame: Anodized aluminum alloy
Battery Specifications
-
Solution: MPPT (input maximum power tracking algorithm), constant voltage output,
-
Battery capacity: 12.8V/60AH (768WH)
-
Charging indication: LED status indicator
-
Input interface: Photovoltaic aviation plug
-
Output interface: DC5.5mm diameter standard male plug, 2-way output
-
Output voltage: 12V±50mV
-
Output current: ≤3A±50mA (total of two outputs)
-
Discharge utilization: ≤90%
-
Operating temperature: Charging: 0~45℃; Discharging: -10~55℃ (accuracy: ±1℃)
-
Over-current protection: >4A (over-current protection for more than 3 seconds, green light flashes)
-
Overcharge and over-discharge protection: Over-discharge protection: <10V; Over-charge protection: >14.6V (accuracy: ±0.1V)
-
Output short circuit protection: Green light flashes, green light stays on after short circuit is removed
-
Battery heating function: When photovoltaic input is available, heating starts when temperature is below 0℃, and stops when temperature rises to 8℃
-
Heating power: Maximum 15W
-
Storage temperature: -20~35℃
-
Battery case Dimensions: 650mm * 98mm * 82mm
-
Product capacity: 20%-30%
-
Battery material: Lithium iron phosphate/LifePO4 battery
Battery life and charging
-
Power off battery life: 2 years (battery pack has no output after shutdown, power loss is self-discharge of battery cells, about 3%-5%/month)
-
Power on battery life: About 25 days (normal temperature, no load)
-
Load battery life: About 3 days (room temperature, no charging, mounted mobile camera sample + sound column measurement)
-
Recharge time (0~100% power): Conditions: normal temperature, 120W photovoltaic panel, standard light duration 4~5 hours/day; Without load: about 1 day; With load: about 1.2 days
All-in-one Package
-
Size: 925mm * 735mm * 230mm
-
Weight (Include bracket and accessories): 17KG
-
Content: 1* Solar Panel + 1* Battery case (Inside with battery) with DC output connectors + 1* Bracket for Solar panel & Battery case + 1 * U Shape mount for Pole installation + 1 * Screws pack
