Lenkeng LKV714PRO

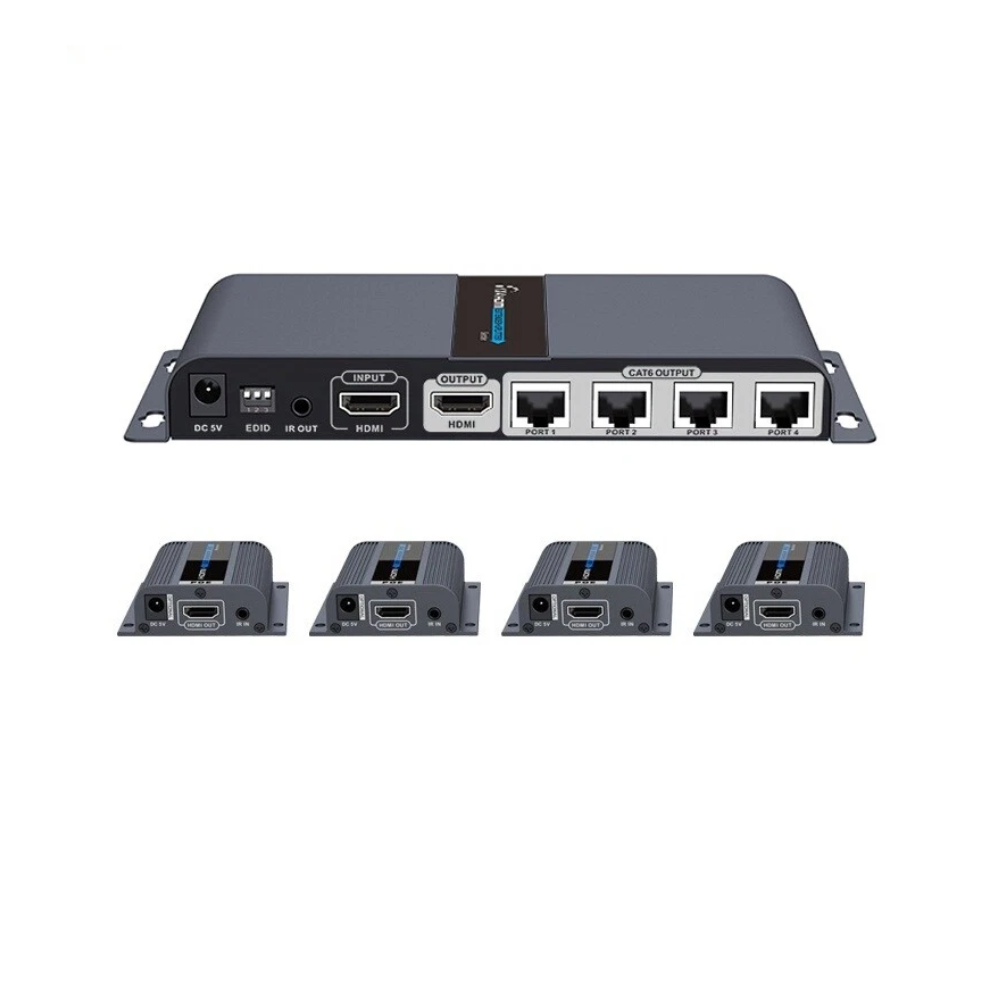

Lenkeng LKV714PRO 1-In-4-Out 1080P HDMI Extender Splitter Kit – Includes 1 * Transmitter + 4 * Receivers – Compatible with CAT6/6A/7 Cables – Up To 40m Distance
SKU: LKV714PRO
Categories: Audio & Visual, HDMI Extenders, HDMI Products, HDMI Splitters
Tags: 1-In-4-Out, 1080P, CAT6, Extender, HDMI, Kit, Lenkeng
Lenkeng LKV714PRO 1-In-4-Out 1080P HDMI Extender Splitter Kit – Includes 1 * Transmitter + 4 * Receivers – Compatible with CAT6/6A/7 Cables – Up To 40m Distance
Key Features :-
- Support EDID
- Plug and play
- Supports one HDMI Loop-out
- Supports 20~60KHz IR pass back
- Wall-mounted function, easy installation
- Compatible with CAT6/6a/7 network cables
- The transmission distance is 40m/131ft
- The highest resolution is up to 1920×1080 @ 60Hz
- Supports power from the transmitter to receiver unit over the CAT6 cable
- Distributes 1x HDMI source to 4x HD displays over network cable simultaneously
| HDMI signal | HDMI1.3, Compatible with HDCP1.2 |
| Input | 1 x HDMI |
| Output | 4 x RJ45 |
| Supported resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Transmission distance |
Full HD resolution 1080p@60Hz up to 40m via Cat6 cable
|
| IR signal | Supports 20 ~ 60kHz IR device |
| EDID | Supports EDID setting function |
| Working temperature | 0℃ ～ 60℃ |
| Power supply | 5V/3A DC |
| Power consumption | <15W |
| Dimensions | TX: 190(L) x 95.9(W) x 23.9(H)mm RX: 71.6×66.6×22.6mm |
| Colour | Black |
