Lenkeng LKV722P

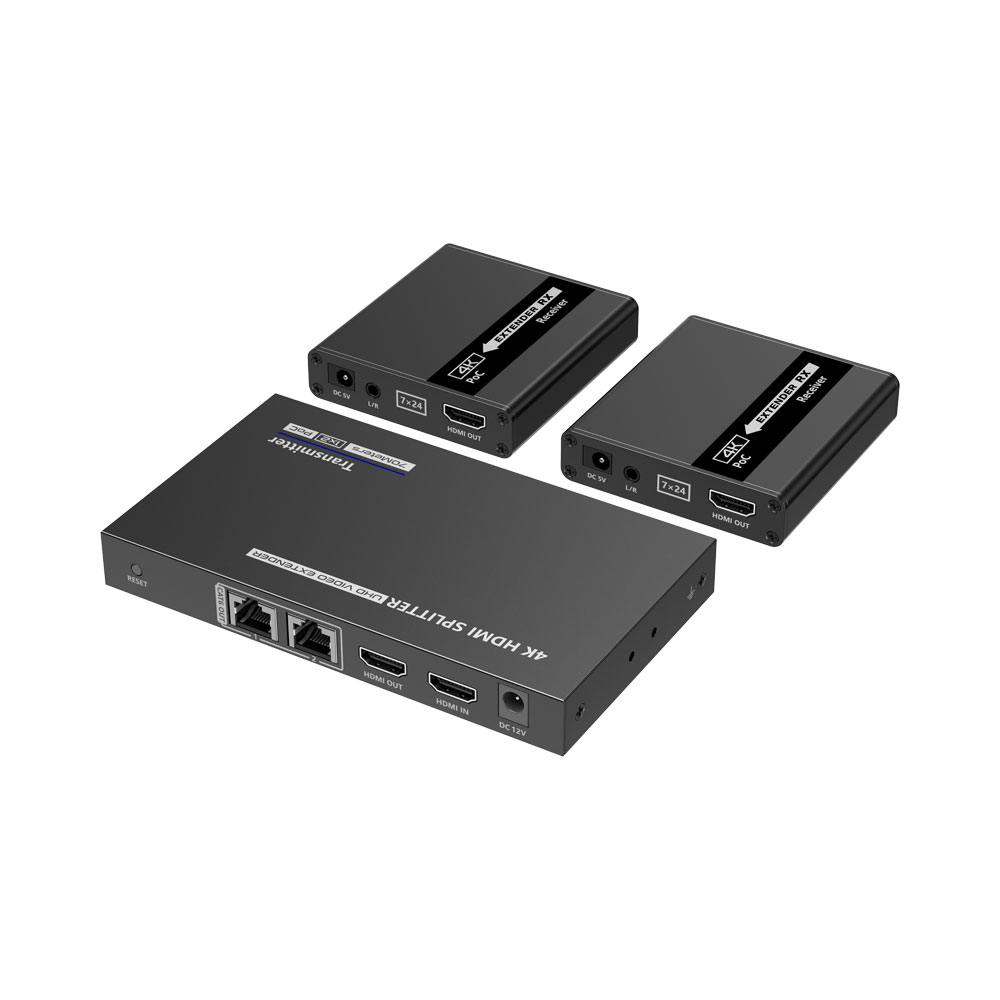

Lenkeng LKV722P 1-In-2-Out 4K @ 30Hz HDMI Extender Splitter Kit – Includes 1 * Transmitter + 2 * Receivers – Compatible with CAT6/6A/7 Cables – Up To 40m Distance (4K) / Up To 70m Distance (1080P)
SKU: LKV722P
Categories: Audio & Visual, HDMI Extenders, HDMI Products, HDMI Splitters
Tags: 1-In-2-Out, 4K, CAT6, Extender, HDMI, Kit, Lenkeng
Lenkeng LKV722P 1-In-2-Out 4K @ 30Hz HDMI Extender Splitter Kit – Includes 1 * Transmitter + 2 * Receivers – Compatible with CAT6/6A/7 Cables – Up To 40m Distance (4K) / Up To 70m Distance (1080P)
Key Features :-
- 70m and zero latency transmission
- Supports CAT6/6A/7 network cable, maximum transmission distance can reach up to 40m for 4K @ 30Hz signals and up to 70m for 1080p @ 60Hz signals.
- Supports 4K @ 30Hz HDR
- Supports PoE-Power over network cable
- Distribute 1 HDMI source to 2 displays over network cables simultaneously
- Splitter: 1 input, 2 output
- HDMI compliance: HDMI 1.4
- HDCP compliance: HDCP 1.4
- Transmission medium: CAT6/CAT6A/CAT7
- Transmission distance: 1080p @ 60Hz = 70m; 4K @ 30Hz = 40m
- Video bandwidth: 10.2Gbps
- Video support: 800×600, 1024×768, 1280×720, 1280×960, 1366×768, 1440×900, 1680×1050, 1920×1080, 480i@60Hz ,480p@60Hz ,576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 4K@24/25/30Hz
- Audio support: PCM/LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 5.1CH
- PoE: support
- 1080P HDR10: support
- HDMI Loop-out: support
- EDID through: support
- RS-232 Control: 3 Pin: GND/RxD/TxD, follow RS-232 levels; Baud rate 9600
- Bi-directional IR passback: support
- Input TMDS signal: 0.7~1.2Vp-p
- Input DDC signal: 5Vp-p
- Input: HDMI IN ×1, DC2.1 ×1, 3.5mm jack ×1 (IR)
- Output: HDMI OUT×1, RJ45 ×2, 3.5mm jack ×1 (IR)
- HDMI connector: Type A 19 Pins, Female
- Network cable standard: CAT6/CAT6A/CAT7, follow IEEE-5688 standard
- Housing: TX: Iron, RX: Aluminium alloy material+crystal panel
- Dimensions (L×W×H mm): TX: 151.5(L) x 86.5(W) x 19.0(H)mm, RX: 75.0(L) x 80.0(W) x 18.0(H)mm
- Weight: TX: 280g, RX: 160g x2
- Power supply: TX: DC 12V/1A
- Power consumption: TX<10W, RX<2.5W
- Operation temperature: -20°C~60°C
- Storage temperature: -30°C~70°C
- Relative humidity: 0%~90% (no condensation)
- Protection: Lightning protection, surge protection, ESD protection
