Access Control, Access Control Accessories
Nemesis EVAQEX00P-TFWHT/PL

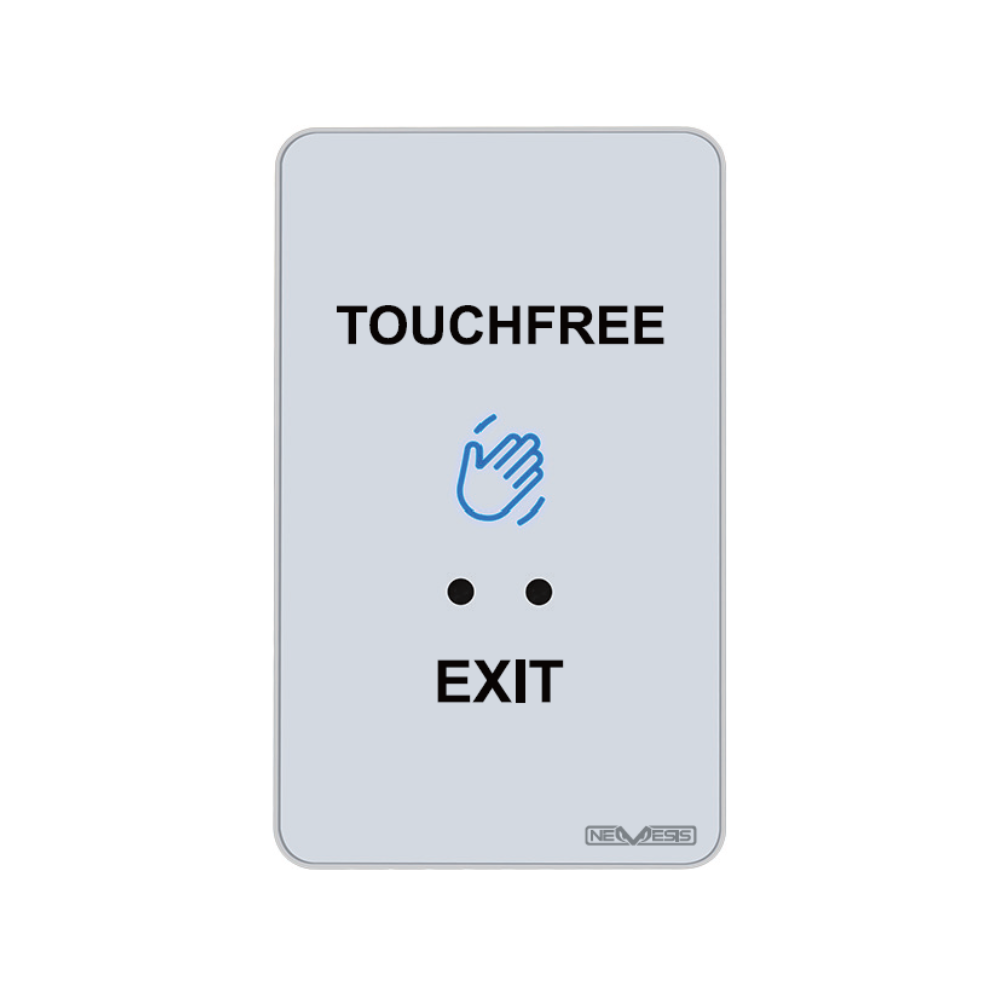

Nemesis EVAQEX00P-TFWHT/PL IP68-Rated Weatherproof ABS Plastic “Touchfree Exit” SPDT Touchless Exit Button / Switch for Access Control
Nemesis EVAQEX00P-TFWHT/PL IP68-Rated Weatherproof ABS Plastic “Touchfree Exit” SPDT Touchless Exit Button / Switch for Access Control
Key Features :-
- Dimensions: H 115 x W 70 x D 30mm
- Ingress Rating: IP68 (fully potted)
- Mechanical Life: 500,000 Operations
- Panel: ABS plastic, 14mm thickness
- Mechanical Life: 500,000 Operations
- LED Actuator: Blue LED (Standby), Green LED (Active)
- Actuating Distance: 5~20cm (adjustable)
- Output Contact: NO/NC/COM
- Time Delay: 0-30 seconds (adjustable)
- Power: 12-24V DC
- Operating Temperature: -20°C to +55°C
- Operating Humidity: 0-95% (relative humidity)
- Weight: 940 g
- Fixing Method: 2x 3mm stainless steel screws (included)
- Panel: Stainless steel, 304 grade, 1.7mm thick, laser etched text
- Dimensions: 115H x 70W x 40D (mm)
- Button: Stainless steel, illuminated Output Contact: 1x NO & 1x NC
- Mechanical Life: 500,000 Operations
- Ingress Rating: IP66
- LED Actuator: Green LED (standby), Green LED (active)
- Power: 12-24V DC (for led only)
- Operating Temperature: -20˚C to +55˚C
- Operating Humidity: 0-95% (relative humidity)
- Weight: 140g
- Fixing Method: 2x3mm stainless steel screws (included)
- Mount Style: Flush – fits standard flush boxes
