Omada Networks IES206G

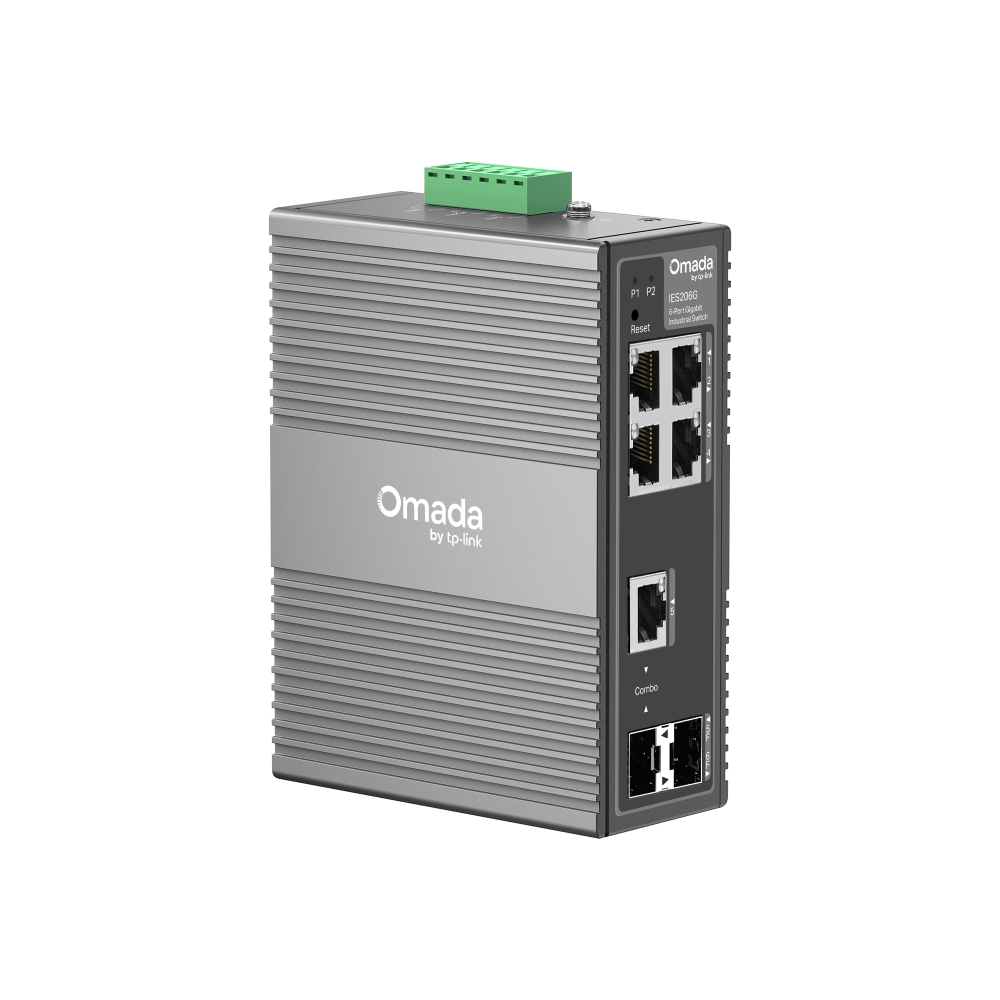

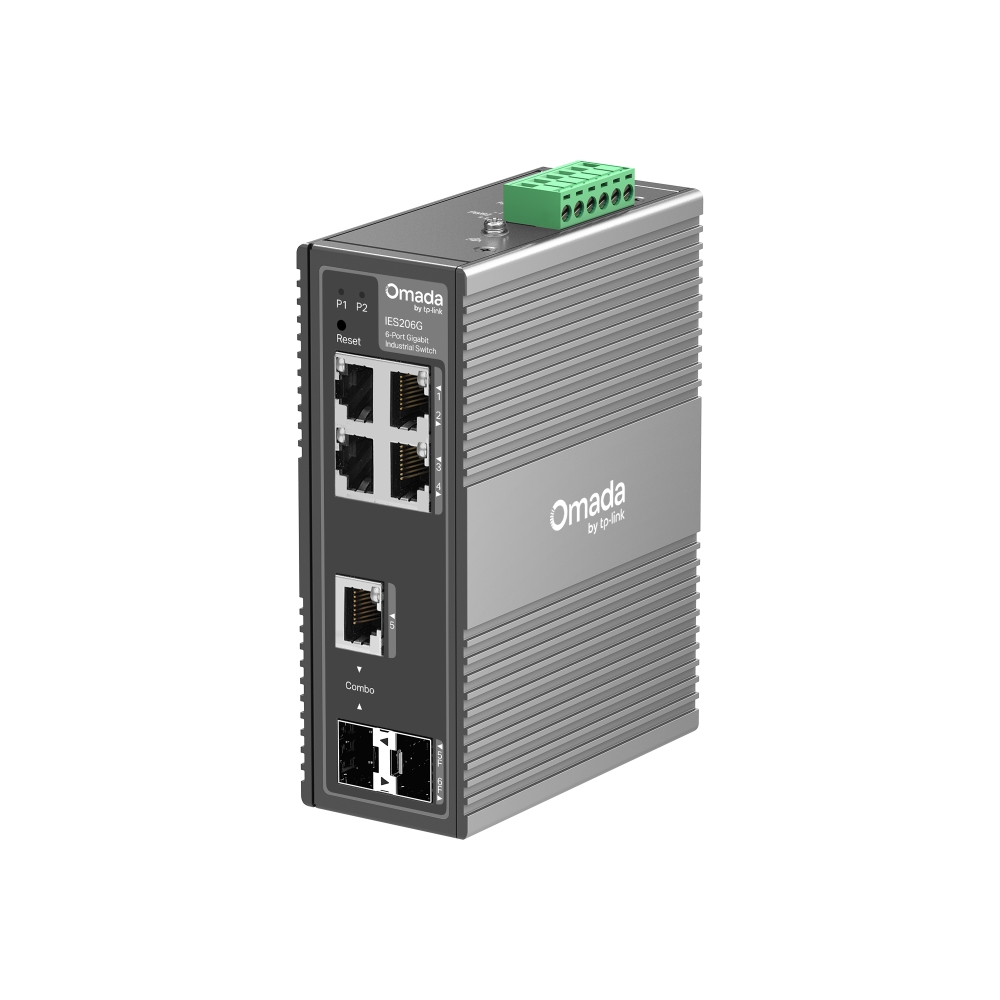

Omada Networks IES206G 6-Port Gigabit Ethernet Industrial Easy Managed Network Switch with 4 * GbE Ports + 1 * Gb Combo RJ45/SFP Slot + 1 * Gb SFP Slot – 9.6V~60V DC Input – Solar Compatible – Fanless – Centralized Cloud Management Via Web OR Omada App
SKU: IES206G
Categories: Networking Products, Non-PoE Network Switches
Tags: 4-Port, 6-port, DIN-RAIL, Easy Managed, Fanless, Gigabit, Industrial, IP, Network, Omada, SFP Port, Solar, Switch, Wall-Mount
Omada Networks IES206G 6-Port Gigabit Ethernet Industrial Easy Managed Network Switch with 4 * GbE Ports + 1 * Gb Combo RJ45/SFP Slot + 1 * Gb SFP Slot – 9.6V~60V DC Input – Solar Compatible – Fanless – Centralized Cloud Management Via Web OR Omada App
Key Features :-
- 4× Gigabit RJ45 Ports
- 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App†
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
- 5 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|

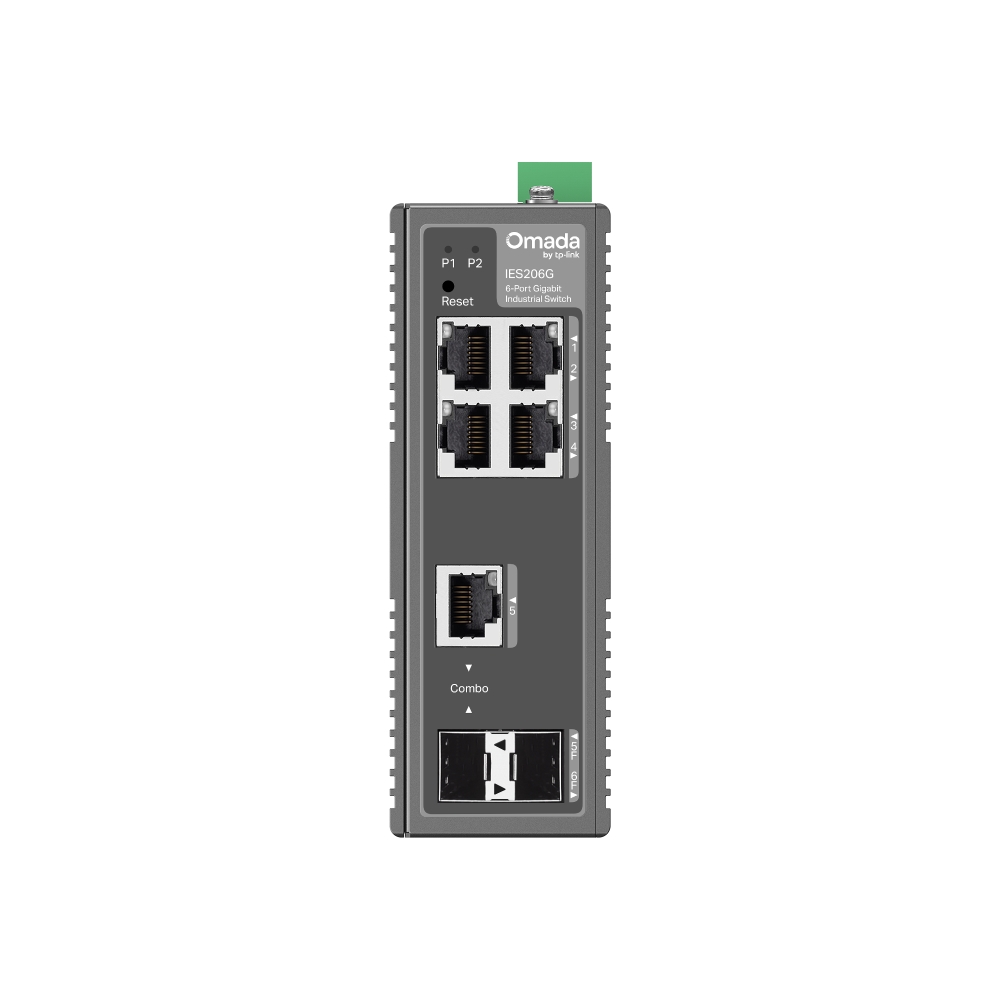

| Interface | • 4× 10/100/1000 Mbps RJ45 Ports • 1× Gigabit SFP/RJ45 Combo Slot • 1× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |

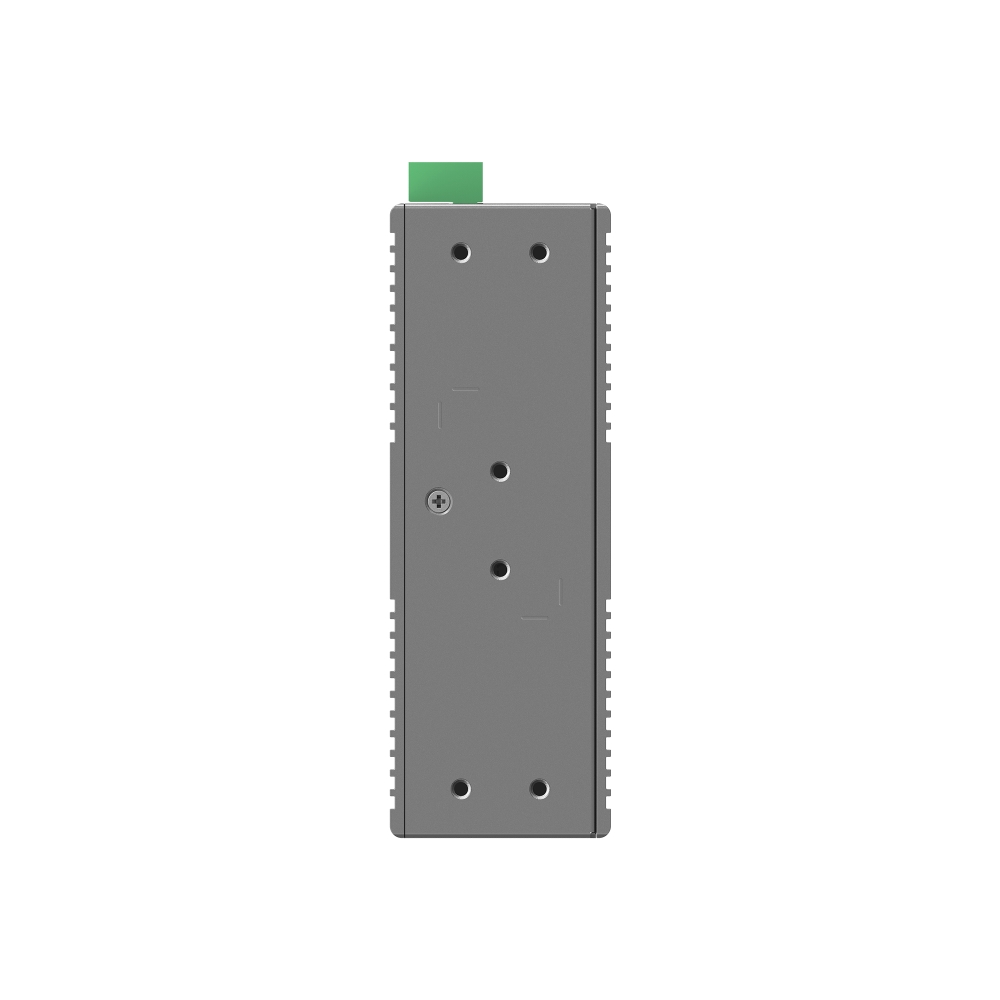

| Installation | • DIN-rail mounting • Wall mounting |

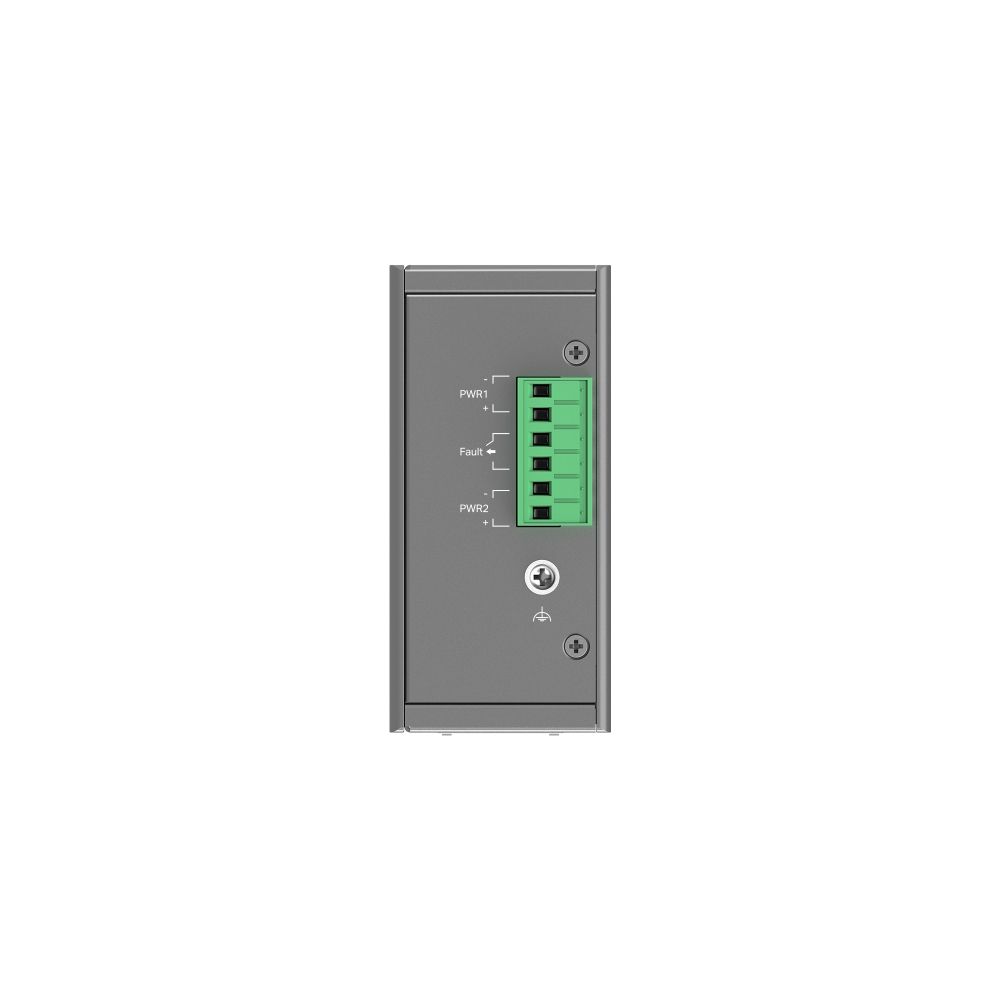

| Power Supply | 9.6-60V 1+1 Redundant DC Power Input |
| Dimensions ( W x D x H ) | 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm) |
| Surge Protection | • ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports |
| PERFORMANCE | |
|---|---|
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.93 Mpps |
| MAC Address Table | 8K |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rate Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Link Aggregation – Static Link Aggregation – Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both • Port Statistics – Port Mirror Status – Traffic Statistics • 802.1ab LLDP • Spanning Tree – STP (802.1d) – RSTP (802.1w) |
| L2 Multicast | • IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • IES206G • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide |
| Environment | • Operating Temperature: -40℃~75℃ (-40℉~167℉) • Storage Temperature: -40℃~85℃ (-40℉~185℉) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing |
