TVT TD-3332H4-16P-B2

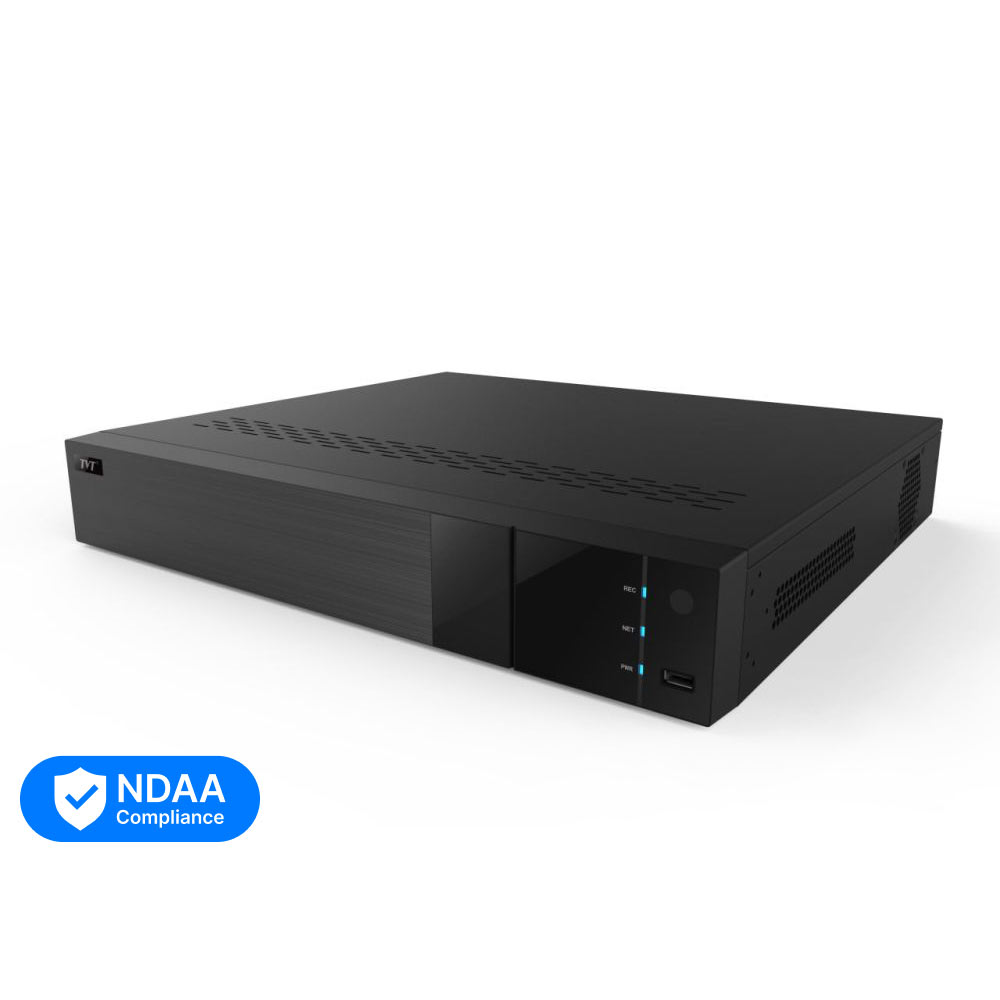

TVT TD-3332H4-16P-B2 H265 4K UHD 32-Channel 16x PoE 1.5U Rackmount NVR – Network Video Recorder – 4x HDD Bays – Without HDD – Supports Face Comparison
SKU: TD-3332H4-16P-B2
Categories: CCTV / Surveillance, IP Surveillance, NVRs, TVT NVRs
Tags: 16x PoE, 32-Channel, AI, H265, NDAA, Network Video Recorder, NVR, Rackmount, RAID, TVT
TVT TD-3332H4-16P-B2 H265 4K UHD 32-Channel 16x PoE 1.5U Rackmount NVR – Network Video Recorder – 4x HDD Bays – Without HDD – Supports Face Comparison
Key Features :-
- Support 32CH 16MP/12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF IPC Input
- H.265S / H.265+ / H.265 / H.264
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-type recording: manual / timed / motion / sensor / POS / AI recording
- Playback : 16 CH simultaneous playback
- Search : time slice, time, event, tag and smart search
- Support face detection and comparison
- Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
- Support license plate recognition
- Support POS information overlay on live view and playback
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Compatible with third-party IPCs, such as ONVIF, Hikvision, etc.
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
- Support 16CH PoE IPC direct connection to NVR via PoE ports
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Support PTZ preset and auto cruise
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Andriod OS
| Model | TD-3332H4-16P-B2 | |
| System | OS | Embedded Linux |
| Video | Compression | H.265S/H.265+/H.265/H.264 |
| IP Video Input | 32CH IPC input | |
| Resolution | 16MP/12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/ 720P/960H/D1/CIF |
|
| Network Bandwidth | 320Mbps/320Mbps (incoming/outgoing) *When the AI function of the IPC is enabled, the actual incoming bandwidth(max.bitrate) is more than the set value in the NVR. |
|
| Output | HDMITM1 : 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMITM2 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA ×1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA and HDMITM1 output the same video source |
|
| Multi-screen Display | Main output: 1/4/6/8/9/13/16/25/32/36 (live view) AUX output: 1/4/6/8/9 (live view) Max. 32+9CH local live view |
|
| Audio | Network Input | 32 CH IPC audio input |
| 2-way Audio | RCA × 1 | |
| Local Output | RCA × 1 | |
| Compression | G.711(U/A) | |
| Record | Record Stream | Dual stream recording |
| Resolution | 16MP/12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/720P/960H/D1/CIF |
|
| Frame Rate | NTSC: 30fps; PAL: 25fps | |
| Cloud Storage | Number of Channels | 16CH |
| Record | Resolution: 1080P/720P | |
| Frame Rate: 15fps | ||
| Playback | Simultaneous Playback | Max 16CH |
| Search | Time slice / time / event / tag / smart search | |
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Decoding Capability | Live View/ Playback | Non-AI Mode: 1×16MP@30fps/4×8MP@30fps/9×3MP@30fps/16×2MP@30fps AI Mode:1×16MP@30fps/4×6MP@30fps/9×3MP@30fps/16×720P@30fps |
| Alarm | Mode | Manual, sensor, motion, exception, smart events, etc. |
| Input | 16 CH local alarm input | |
| Output | 4 CH | |
| Triggering | Record, snap, preset, e-mail, etc. | |
| Face | Face Detection Performance (AI by IPC) |
32CH |
| Face Detection Performance (AI by NVR) |
PicSearch disabled: 2 CH(2MP) or 1CH (4MP) PicSearch enabled: 1CH(2MP) or 1CH (4MP) |
|
| Face Match Performance | PicSearch disabled: 6 CH PicSearch enabled: 3CH |
|
| Comparison Capability | 18 pictures / second | |
| Face Picture Database | 32 libraries 10000 Face Pictures |
|
| Face Picture Search | Search by picture is supported | |
| Database Management | Add, modify, delete and search face pictures | |
| Face Picture Adding | Add face pictures through APP, WEB and external import | |
| Face Picture Comparison | Support successful face recognition alarm and stranger match alarm | |
| Track | Track display on a map | |
| Statistical Graph of Information | Bar graph | |
| Statistical Mode of Information | Statistics by day, week, month, quarter as well as customized time period | |
| Perimeter Protection | Human/Vehicle Classification (AI by IPC) |
32CH |
| Human/Vehicle Classification (AI by NVR) |
PicSearch disabled: 2 CH(2MP) or 1CH (4MP) PicSearch enabled: 1CH(2MP) or 1CH (4MP) |
|
| Video Metadata | Human/Vehicle Attribute Analysis(AI by IPC) |
Yes |
| Other Functions | Fisheye | Supports fisheye dewarping via NVR/Web Client/mobile APP |
| Plate Recognition (AI by IPC) | Yes | |
| Network | Interface | RJ 45 1000 Mbps × 2 |
| Protocol | TCP / IP, HTTP, HTTPs, 802.1X, FTP, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, IPv4, UDP, WebSocket, PPPoE, SNMP, IGMP |
|
| Client Connection | Max. 128 users access | |
| PoE | PoE Port | RJ 45 100Mbps × 16 |
| Standard | IEEE802.3AF/AT | |
| Output Power | ≤ 150W | |
| Mobile Device | OS | iOS, Andriod |
| Storage | HDD Interface | SATA × 4, max 10T for each HDD |
| E-SATA Interface | E-SATA × 1 | |
| Backup | Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes | |
| External Interface | RS 485 | Yes (full-duplex), connect to PTZ or keyboard |
| USB | USB 3.0 × 1 ; USB 2.0 × 2 | |
| Remote Controller | Optional | |
| Others | Power Supply | ATX 300W(PoE) |
| Consumption | ≤ 20W ( without HDD and PoE power supply ) | |
| Certificate | CE, FCC | |
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | |
| Dimensions(mm) | 440 × 390 × 70( W × D × H ) | |
| Working Environment | -10 〜 50 ℃，10% 〜 90% humidity | |
