TVT Video Intercoms, Video Intercoms
TVT TD-E2137-PE/TP/WF

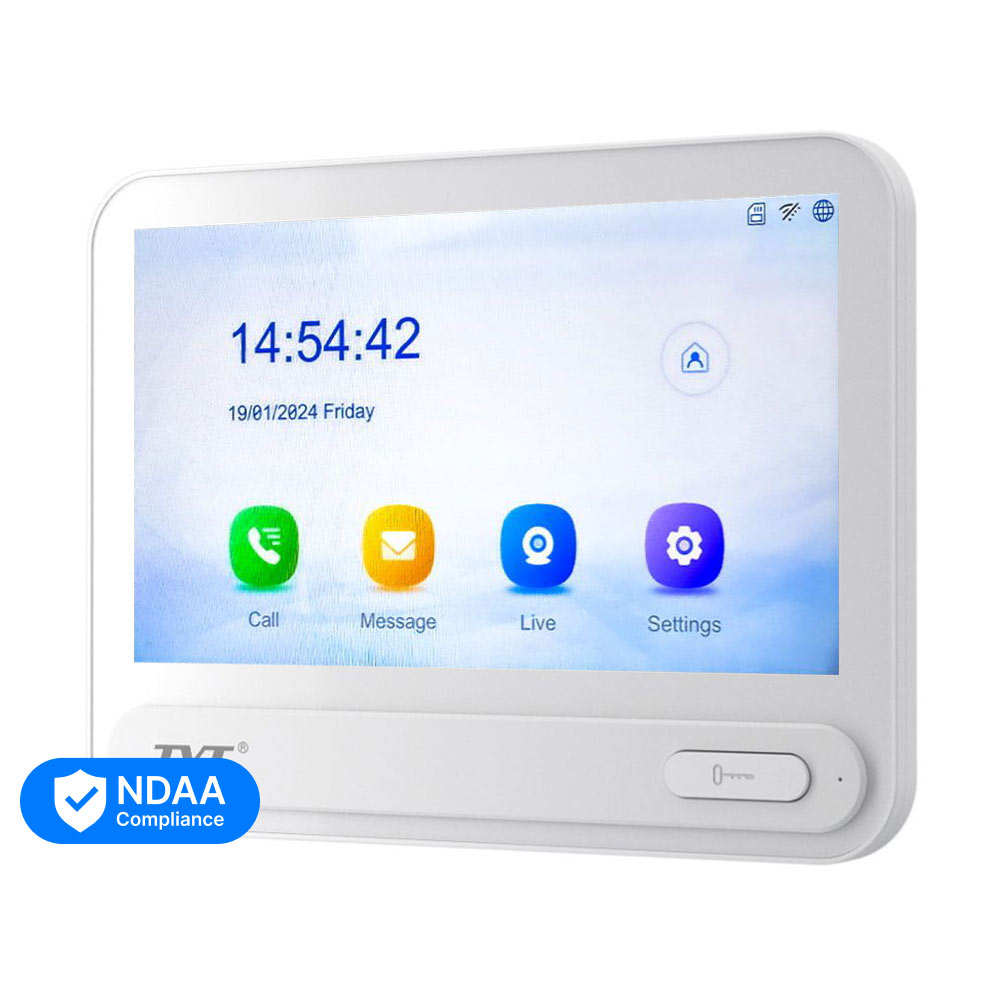

TVT TD-E2137-PE/TP/WF WiFi PoE IP 7″ (&-Inch) IPS Touchscreen Indoor Video Intercom Monitor – Supports 2.4GHz WiFi
SKU: TD-E2137-PE/TP/WF
Categories: TVT Video Intercoms, Video Intercoms
Tags: 2.4GHz Wireless, 7 inch, IP, Monitor, NDAA, Network, Touchscreen, TVT, Video Intercom, WiFi
TVT TD-E2137-PE/TP/WF WiFi PoE IP 7″ (&-Inch) IPS Touchscreen Indoor Video Intercom Monitor – Supports 2.4GHz WiFi
Key Features :-
- 7 inch IPS touch screen
- A maximum of 6 indoor stations can be installed in the same room
- Support live preview of the linked camera
- Support snapshot when calling via door station (micro SD card required)
- Support mute notification function
- Use the advanced noise suppression and echo cancellation technology to ensure high sound quality
- 8CH zone alarm access function
- Self-define door opening password
- Support 2.4G WIFI
- Support 1CH 12V200mA power output for powering up a sensor
| System | Operating System | Linux |
| Display | Display Screen | 7 inch IPS touch screen |
| Display Resolution | 1024 × 600 , brightness:300 cd/m2 | |
| Operation Method | Capacitive touch screen | |
| Video | Video Input | Max. 4CH videos can be viewed simultaneously |
| Network Input Resolution | 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | |
| Compression | H.265+/H.265/ H.264 | |
| Audio | Local Input | Built-in microphone |
| Local Output | Built-in speaker | |
| Compression | G.711(U/A) | |
| Record | Resolution | Up to 2MP |
| Frame Rate | NTSC: 30fps; PAL:25fps | |
| Playback | Simultaneous Playback | Max.1CH |
| Performance | Linked IPC | Max. 16 CH |
| Linked Indoor Extensions | Max. 5 | |
| Network | Interface | RJ 45 100 Mbps self-adaptive Ethernet port × 1 |
| Wireless Network | WiFi 802.11b/g/n | |
| Protocol | TCP / IP, DHCP, DNS, NTP, etc. | |
| Incoming/Outgoing Bandwidth | 40/40Mbps | |
| Interface | Audio | Built-in speaker and microphone, support noise suppression and echo cancellation |
| Storage | Built-in micro SD card slot, up to 256GB | |
| Reset | Yes | |
| Alarm Input | 8CH | |
| Wi-Fi | Yes,2.4G Wi-Fi | |
| Unlocking Button | Yes | |
| RS 485 | Reserved | |
| Power Output | DC12V 200mA (only available when DC12V power supply is used) | |
| Others | Power | DC12V/POE |
| Power Consumption | < 6W | |
| Dimensions(mm) | 180.6 135.6 26.8 | |
| Weight (net) | Approx.0.36kg | |
| Installation | Wall mounting | |
| Working Environment | -20℃ ~50℃, Humidity: less than 95% (non-condensing) | |
| Certificate | CE, FCC | |
| Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE |
