ZKDigimax DG03-B1F55

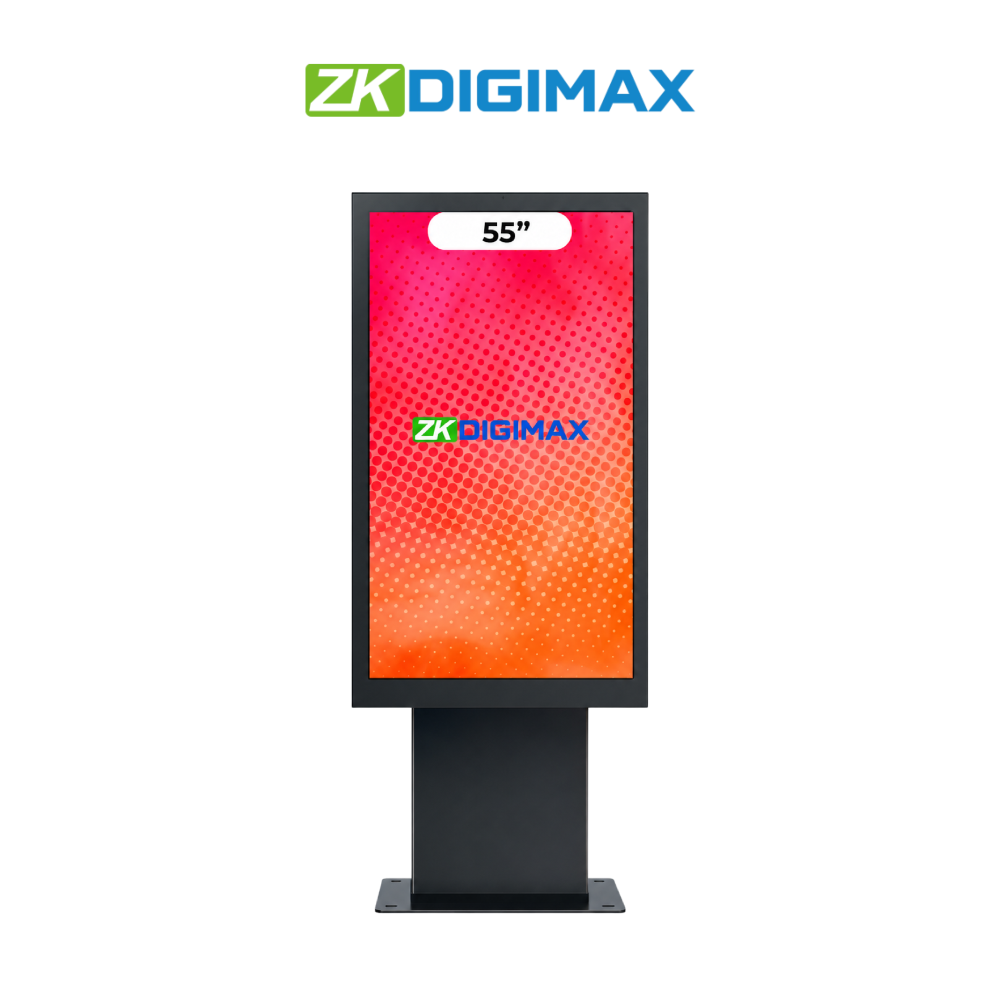

ZKDigimax DG03-B1F55 55″ (55-Inch) IP65-Rated Outdoor-Rated Floor-Standing Digital Signage – 1080P Resolution – Built-in WiFi – Android 11 OS – 2500 Nits High Brightness
SKU: DG03-B1F55
Categories: Digital Signage, Display Solutions
Tags: 1080P, 55 Inch, Android, Digital Signage, Indoor, IP65-Rated, Weatherproof, Wireless, ZKDigimax, ZKDigimax Digital Signage, ZKTeco
ZKDigimax DG03-B1F55 55″ (55-Inch) IP65-Rated Outdoor-Rated Floor-Standing Digital Signage – 1080P Resolution – Built-in WiFi – Android 11 OS – 2500 Nits High Brightness
The DG03-B1F series offers outdoor digital totems with 2500 nits of brightness, Android 11 operating system, and a ruggedized structure for operation in extreme weather conditions. Designed for high visibility in direct sunlight, they are available in 43” and 55” sizes, ideal for outdoor advertising, commercial signage, and outdoor content display.
Key features
- Ultra-high brightness of 2500 cd/m² for clear viewing even in direct sunlight.
- Android 11 system powered by Quad Core Cortex-A55 CPU for stable and flexible multimedia playback.
- Reinforced outdoor-type structure with protection against adverse environmental conditions.
- Advanced connectivity with USB 3.0, USB OTG, HDMI OUT, LAN, Wi-Fi and TF slot for different playback methods.
- Integrated 10W speakers that allow you to transmit audiovisual content without additional equipment.
Recommended applications
- Outdoor advertising in shopping centers, pedestrian areas and high-traffic areas.
- Shop windows or display cases exposed to intense lighting.
- Digital signage for outdoor use in restaurants, cafes and shops that require high visibility.
- Information and announcements at transport stations, terminals or public areas.
- Display of digital content at events, fairs and outdoor exhibitions.
| Specification | DG03-B1F43 | DG03-B1F55 |
|---|---|---|
| Operating System | Android 11.0 | Android 11.0 |
| CPU | Quad Core Cortex-A55 (2.0GHz) | Quad Core Cortex-A55 (2.0GHz) |
| Chipset | RK3568 | RK3568 |
| RAM | 2GB | 2GB |
| ROM | 16 GB | 16 GB |
| Screen size | 43″ | 55″ |
| Resolution | 1920×1080 | 1920×1080 |
| Glow | 2500 cd/m² | 2500 cd/m² |
| Contrast | 4000:1 (Dynamic) | 4000:1 (Dynamic) |
| Display Colors | 16.7M (8bit) | 16.7M (8bit) |
| USB 3.0 | 1 | 1 |
| USB OTG | 1 | 1 |
| HDMI OUT | 1 | 1 |
| RJ45 (LAN) | 1 | 1 |
| Wi-Fi | 2.4GHz | 2.4GHz |
| TF Card | 1 | 1 |
| Earphone | 1 | 1 |
| Speakers | 10W | 10W |
| Voltage | AC 100–240V | AC 100–240V |
| Maximum consumption | ≤300W | ≤400W |
| Dimensions (mm) | 1250 × 650 × 80 | 1600 × 850 × 90 |
| Weight | 55 kg | 70 kg |
| Operating temperature | -10°C to 50°C | -10°C to 50°C |
