ZKDigimax DG03-B1W55

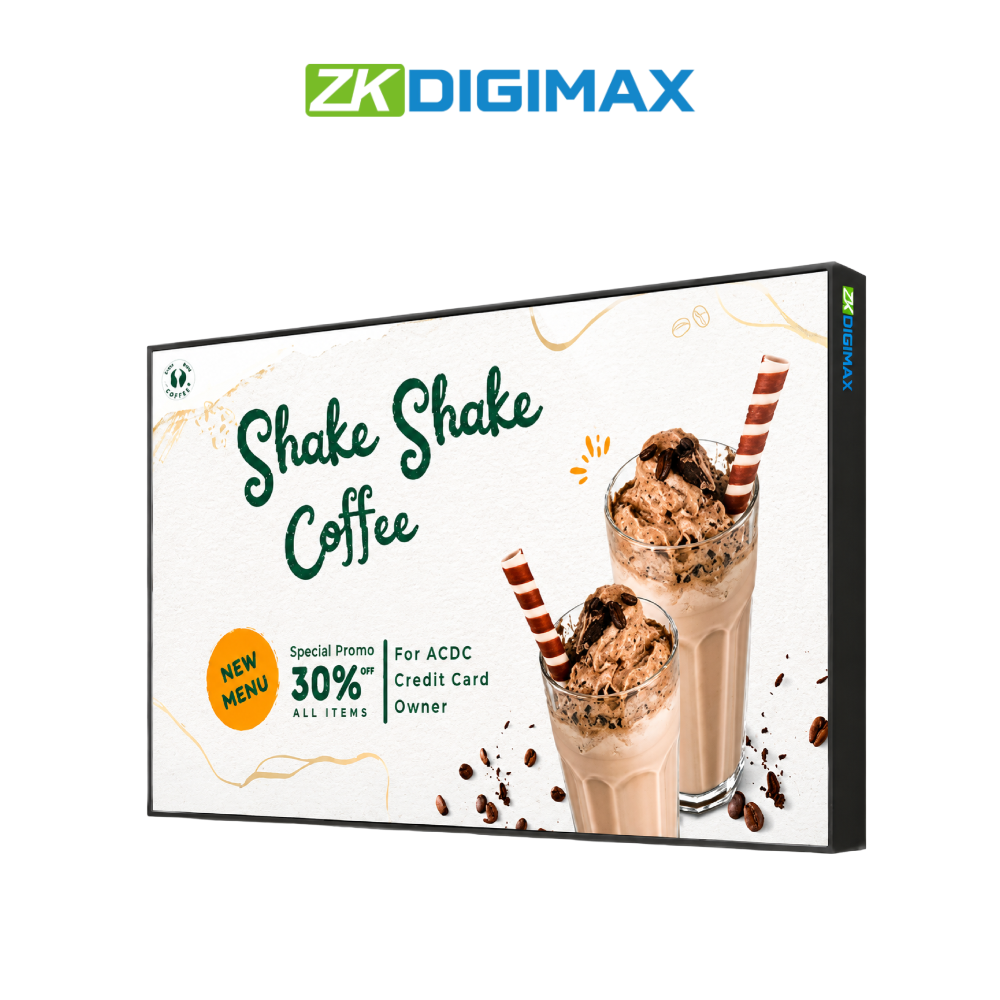

ZKDigimax DG03-B1W55 55″ (55-Inch) IP65-Rated Outdoor-Rated Digital Signage – 4K Resolution – 16:9 Ratio – High Brightness – Built-in WiFi – Android 11 OS – 2500 Nits Brightness
SKU: DG03-B1W55
Categories: Digital Signage, Display Solutions
Tags: 4K Resolution, 55 Inch, Android, Digital Signage, Indoor, IP65-Rated, Weatherproof, Wireless, ZKDigimax, ZKDigimax Digital Signage, ZKTeco
ZKDigimax DG03-B1W55 55″ (55-Inch) IP65-Rated Outdoor-Rated Digital Signage – 4K Resolution – 16:9 Ratio – High Brightness – Built-in WiFi – Android 11 OS – 2500 Nits Brightness
The DG03-B1W series offers professional outdoor displays with 2500 nits of brightness, Android 11 operating system, IP65 protection, a robust design, and perfect visibility even in direct sunlight. Available in 43″ and 55″ sizes, it’s ideal for outdoor digital signage, illuminated shop windows, and high-traffic commercial environments.
Key features :-
- Ultra-high brightness of 2500 cd/m² that guarantees total visibility under direct sunlight outdoors.
- IP65 protection against water and dust, designed to operate in demanding weather conditions.
- Android 11 platform with Quad Core Cortex-A55 CPU that allows stable and flexible multimedia playback.

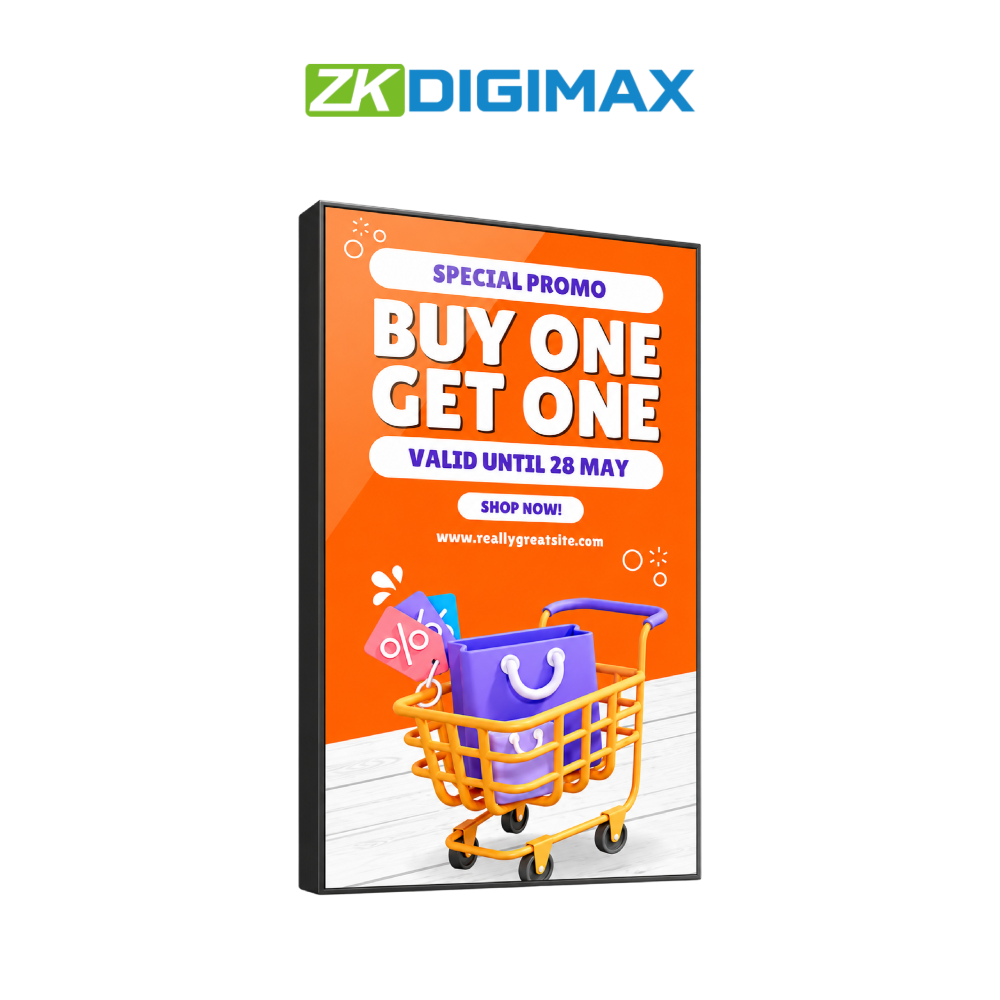

- Installation features for vertical or horizontal orientation, adapting to multiple applications.
- Full connectivity with USB, HDMI OUT, LAN and integrated Wi-Fi for remote content management.
Recommended applications
- Digital signage for outdoor use in shopping centers, plazas and public areas.
- Shop windows with high lighting where maximum clarity is required.
- Restaurants, cafes and businesses that display menus or promotions outdoors.
- Corporate offices and buildings that need information screens visible from the outside.
- Transport stops, stations or kiosks where content is required to be always visible.
| Specification | DG03-B1W43 | DG03-B1W55 |
|---|---|---|
| Operating System | Android 11 | Android 11 |
| CPU | Quad Core Cortex-A55 (up to 2.0GHz) | Quad Core Cortex-A55 (up to 2.0GHz) |
| RAM | 2GB | 2GB |
| ROM | 16 GB | 16 GB |
| Screen size | 43″ | 55″ |
| Resolution | 1920×1080 | 1920×1080 |
| Glow | 2500 cd/m² | 2500 cd/m² |
| Contrast | 1200:1 | 1200:1 |
| Display Colors | 16.7M (8bit) | 16.7M (8bit) |
| Aspect ratio | 16:9 | 16:9 |
| USB | 2 | 2 |
| HDMI OUT | 1 | 1 |
| RJ45 (LAN) | 1 | 1 |
| Earphone | 1 | 1 |
| Wi-Fi | 2.4GHz | 2.4GHz |
| Protection | IP65 | IP65 |
| Facility | Vertical / Horizontal | Vertical / Horizontal |
| Voltage | 100–240V / 50–60Hz | 100–240V / 50–60Hz |
| Maximum consumption | ≤300W | ≤400W |
| Dimensions (mm) | 1140 × 660 × 120 | 1415 × 850 × 130 |
| Weight | 45 kg | 60 kg |
| Operating temperature | -20°C to 50°C | -20°C to 50°C |
