ZKTeco InBio460 Pro Plus – Package B
ZKTeco InBio460 Pro Plus – Package B – Includes An Inbio460 Pro Plus 4-Door IP Access Controller In A Secure Lockable Cabinet with a 13.8VDC PSU
SKU: InBio460 Pro Plus - Package B
Categories: Access Control, Multi-Door Access Control
Tags: 4-Door, Access Control, Controller, IP, Minerva IoT, Network, Wiegand, ZKTeco, ZLink

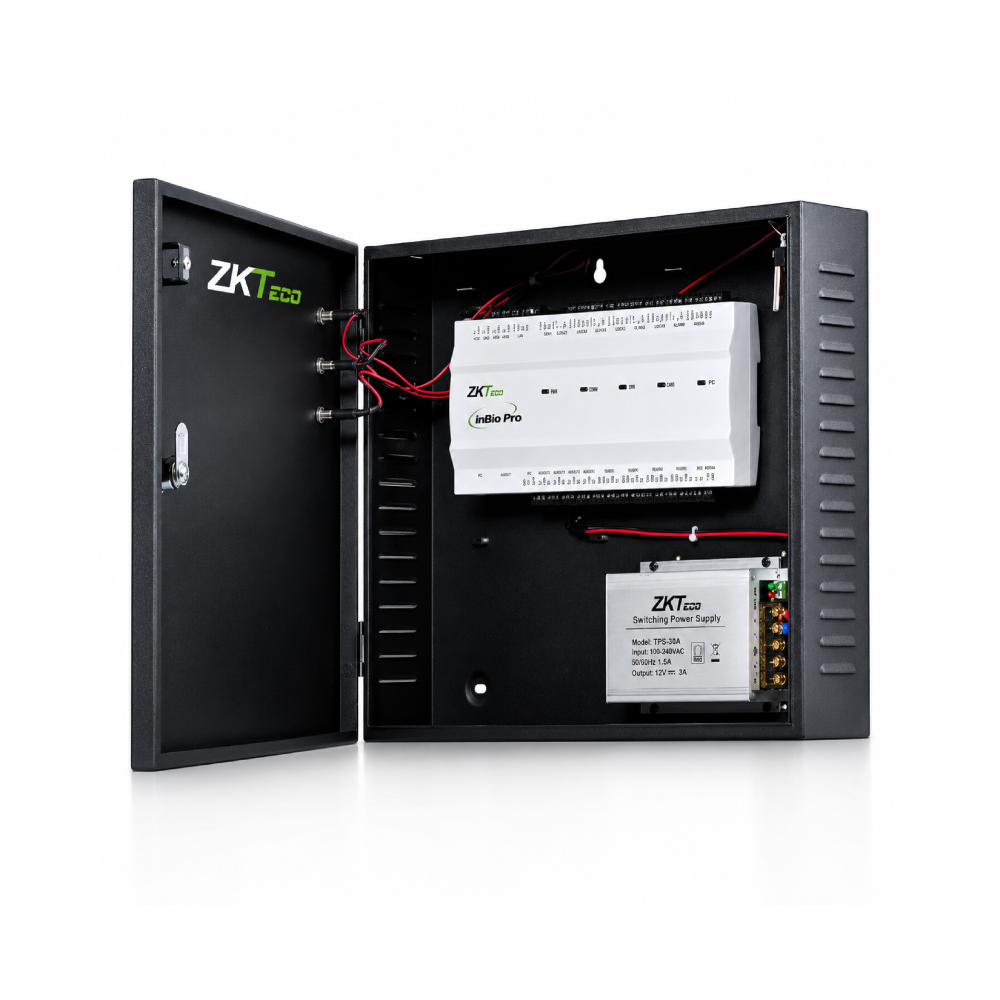

ZKTeco InBio460 Pro Plus – Package B – Includes An Inbio460 Pro Plus 4-Door IP Access Controller In A Secure Lockable Cabinet with a 13.8VDC PSU
The ZKTeco InBio460 Pro Plus is a premium, IP-based 4-door biometric access control panel built for high-security, enterprise-level applications. It offers embedded multi-biometric verification, high data capacities, advanced security encryption, and dynamic QR code capabilities.
Key Features :-
- Multi-Biometric & Multi-Credential Support: It natively supports embedded facial recognition and fingerprint authentication, alongside RFID cards and passwords. It accommodates up to 3,000 face templates and 20,000 fingerprint templates.
- Massive User & Log Capacity: Supports up to 100,000 card users and stores up to 500,000 transaction log events.
- Enhanced Security (AES-256): Employs AES-256 encryption to protect stored data and utilizes AES-128 for RS-485 communications with connected readers, preventing data loss during power outages.
- Dynamic QR Code Ready: Highly effective for visitor management, it supports up to 100,000 static or dynamic QR codes. Visitors can seamlessly access authorized areas by scanning codes via the ZKBio CVSecurity app.
- Comprehensive 4-Door Management: Includes 12 inputs (4 for exit buttons, 4 for door sensors, 4 auxiliary) and 8 outputs (4 Form C relays for locks, 4 auxiliary Form C relays).
- Advanced Access Logic: Built-in advanced features include anti-passback, anti-tailgating, first-card opening, multi-card opening, and duress password entries.
- Scalable Communication: Communicates seamlessly over TCP/IP (LAN/WAN) and supports HTTP/HTTPS web server environments for easy remote parameter management
- Model Name: InBio460 Pro Plus
- Operation System: Linux OS
- Hardware: CPU: Single [email protected]; RAM: 128MB; ROM: 256MB;
- Authentication Method: Card / Password / Fingerprint / Face / QR Code
- Access Point Capacity: InBio460 Pro Plus: 4 Access Points
- Reader Capacity: InBio460 Pro Plus: 8 * RS-485 Readers (ZKTecoRS-485 / OSDP), 4 * 26 / 34 / 66-bit Wiegand Readers
- IO Expansion Board Capacity: 8pcs EX0808 (RS-485 connection)
- User Capacity: 100,000
- Card Capacity: 100,000 (1:N) (Standard)
- Fingerprint Template Capacity: 20,000 (1:N) (Standard)
- Face Template Capacity: 3,000 (1:N) (Standard)
- QR Code Capacity: 100,000 (Static QR Code / Dynamic QR Code)
- Transaction Capacity: 500,000 (Standard)
- Biometric Algorithm: ZKFingerprint V10.0 / V13.0(Default); ZKLiveface 3.5 / 4
- Biometric Authentication Speed: <0.3s @ Fingerprint; <0.3s @ Facial
- False Acceptance Rate (FAR) %: FAR ≤ 0.0001% @ Fingerprint; FAR ≤ 0.01% @ Facial
- False Rejection Rate (FRR) %: FRR ≤ 0.01% @ Fingerprint; FRR ≤ 0.02% @ Facial
- Number of Inputs: InBio460 Pro Plus: 4 * Exit Button, 4 * Door Status, 4 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)
- Number of Outputs: InBio460 Pro Plus: 4 * Form C Relay for Lock, 4 * Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board)
- Max. Card Length: Supports up to 66 bits Card Length
- QR Code: PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects; Dynamic QR codes on the ZKBio CVSecurity mobile application
- Communication: InBio460 Pro Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 4, Aux Outputs * 4 ; Electric Lock * 4, Door Sensor * 4, Exit Button * 4, Alarm * 4
- Standard Functions: Webserver, Upto 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback, Linkage, Global Linkage, Multiple Verification Methods
- Access Control Interface: Wiegand (Card Reader), RS-485(RS-485 Card Reader / Fingerprint Reader / Facial Recognition Reader / QR code Reader)
- Power Supply: 9.6V- 14.4V DC
- Operating Temperature: 0℃ to 45℃
- Operating Humidity: 20% to 80% RH (Non-condensing)
- Dimensions (L * W * H): InBio460 Pro Plus: 226 mm * 106 mm * 36.07mm
- Gross Weight: InBio460 Pro Plus: 1.098 Kg
- Net Weight: InBio460 Pro Plus: 0.494 Kg
- Supported Software: ZKBio CVSecurity
- Installation: Supported DIN Rail mount / Wall-mount / Metal Enclosure
- Enclosure: InBio460 Pro Plus: Size: 350 mm * 90 mm * 300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC,output 12V 4A+1A DC; Backup Battery: Space reserved [Backup Battery Recommended size:151 x 94 x 65 mm(L*W*H)]; Gross Weight: 3.77 Kg
- Certifications: ISO14001, ISO9001, CE, FCC, RoHS
- Factory ID: InBio460 Pro Plus: AC02-CB14H-U10
