Hikvision DS-KV7023EY-IME2

Name: Hikvision DS-KV7023EY-IME2
SKU: DS-KV7023EY-IME2

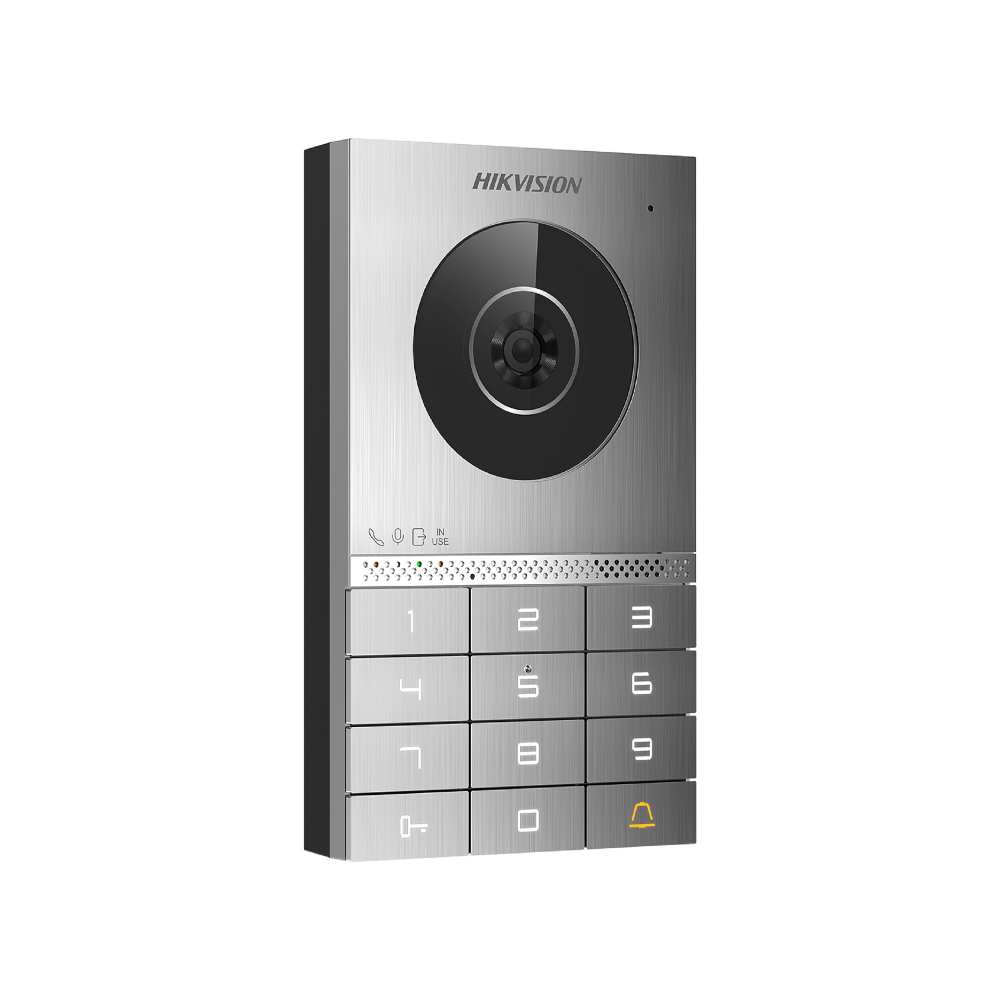

Hikvision DS-KV7023EY-IME2 2-Wire HD series Video Intercom Outdoor Station – Built-in Mifare Card-Reader + Keypad – IP65-Rated Weatherproof – 2MP 135° FoV Camera – Powered by distributor DS-KAD7060EY or 12VDC – 2* Relays for 2* Locks Control

SKU: DS-KV7023EY-IME2 Categories: Hikvision 2-Wire HD Video Intercoms, Hikvision 2-Wire Video Intercom Kits, Hikvision 2-Wire Video Intercoms, Hikvision Video Intercoms, Intercoms Tags: 2-Wire, 2MP, Camera, Gate Control, Hikvision, Intercom, IP65 Rated, Keypad, Silver, Touchscreen, Video Intercom, Weatherproof

Key Features :-

Device type: 2-wire HD villa door station
Camera: 2MP HD video camera
Access methods: PIN code and M1 card reader
Installation: plug-and-play 2-wire connection
Protection rating: IP65 weather-resistant design
Impact resistance: IK08 vandal protection
Applications: villas and residential access control systems

Hikvision Product-Link

System parameters

Operating system: Embedded Linux operation system
ROM: 4 GB
RAM: 256 MB
CPU: Embedded Processor

Display parameters

Screen size: NA
Operation method: NA
Type: NA
Resolution: NA

Video parameters

Supplement light: Low illumination, IR supplement lights
Video standard: H.264
Lens: 1
FOV: Horizontal: 135°, Vertical: 85°
WDR: Support
Resolution: 2 MP

Audio parameters

Audio compression standard: G.711 U, G.726
Audio input: Built-in omnidirectional microphone
Audio output: Built-in loudspeaker (More than 80 dB within 30 cm)
Audio compression bitrate: 64 Kbps
Audio quality: Noise suppression and echo cancellation
Volume adjustment: Adjustable

Capacity

User capacity: 2000

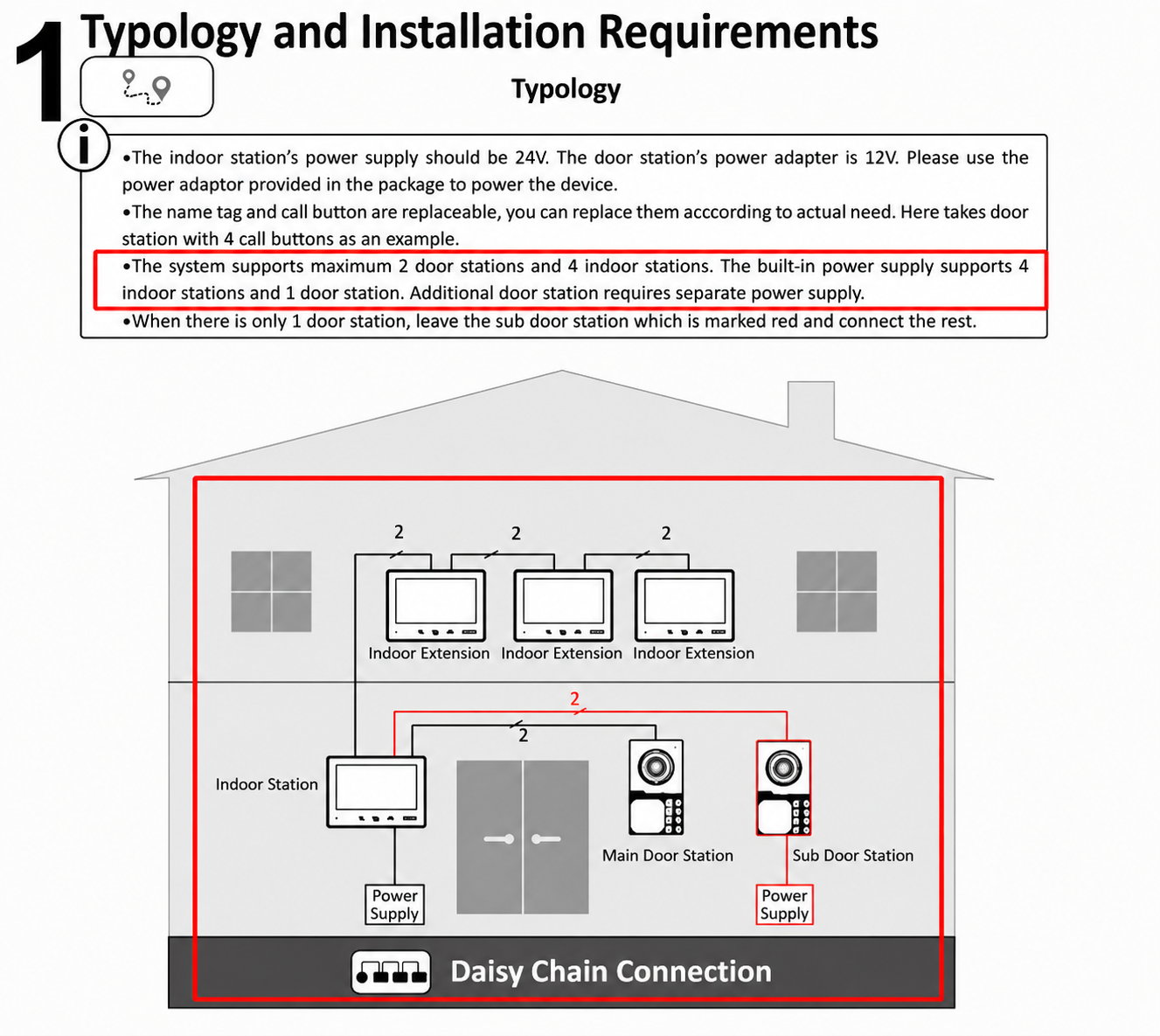

Linked indoor station capacity: Max. 1 flat, up to 4 indoor stations
Sub door station capacity: 16

Network parameters

Wired network: 10/100 Mbps self-adaptive through 2-wire interface
Wi-Fi: Only AP mode for configuration
Bluetooth: NA
3G/4G: NA

Device interfaces

Alarm input: 2（supports Exit button or Door contact input）
Network interface: NA
TAMPER: 1
Exit button: 1
Door contact input: 1
RS-485: 1
Wiegand: NA
TF card: NA
Alarm output: NA
Lock control: 2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
Power interface: 48V，Powered by distributor DS-KAD7060EY or 12VDC
Two-wire IP interface: 1

General

Button: 12
Installation: Surface mounting & flush mounting
Indicator: 4 LED lights (Opening door、Calling、Intercom、In use）
NA
Protective level: IP65 IK08
Working temperature: -40° C to 60° C (-22° F to 140° F)
Working humidity: 10% to 90%
Dimensions: 165mm × 95 mm × 25 mm(6.5″ × 3.7″ × 0.98″)
Battery: /
Application environment: Outdoor
Power consumption: ≤ 6 W
Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
