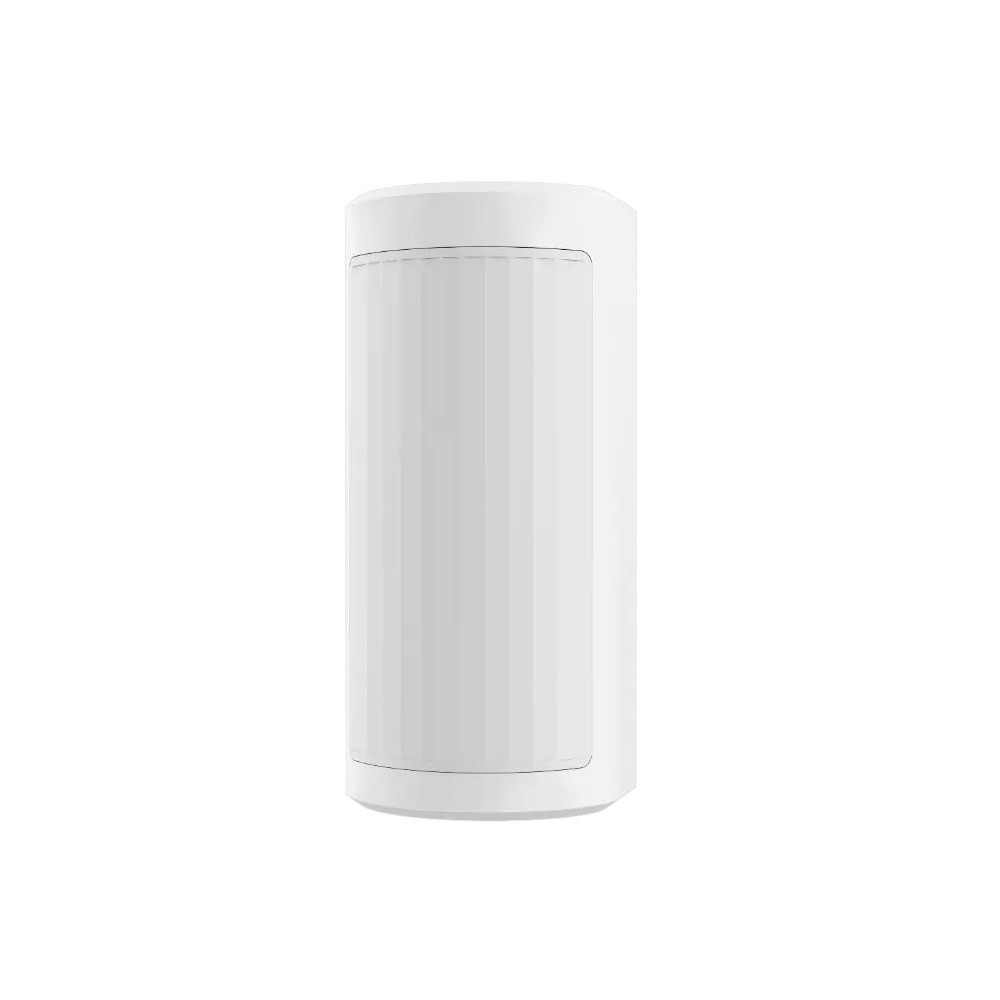

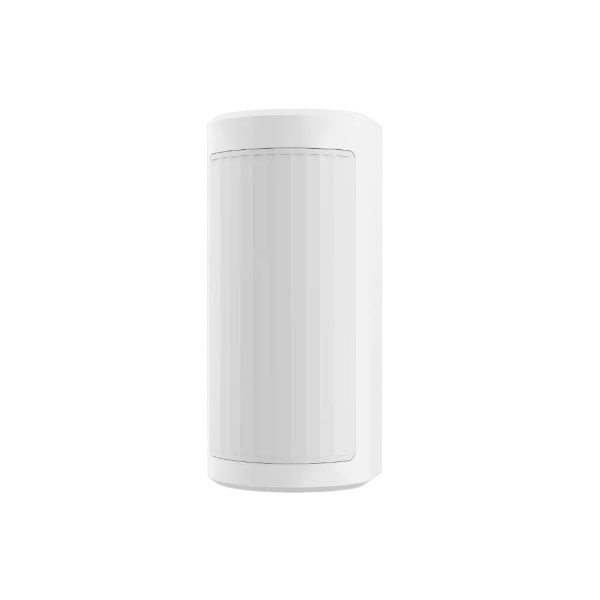

Hikvision DS-PDP18-HM-WB

Hikvision DS-PDP18-HM-WB 433MHz Battery-Operated Wireless Outdoor Double PIR Detector – IP65 Rated Weatherproof – with 18m Distance Coverage with 90° Wide Angle – 24Kg Pet Immunity – To Work with AX Pro Hub

Hikvision DS-PDP18-HM-WB 433MHz Battery-Operated Wireless Outdoor Double PIR Detector – IP65 Rated Weatherproof – with 18m Distance Coverage with 90° Wide Angle – 24Kg Pet Immunity – To Work with AX Pro Hub

Features :-

  • Detection Range: 18m / 90°
  • Up to 24KG pet immunity
  • Fully remote configurable through the App
  • Frequency hopping against jamming for reliable transmission
  • High / Low mount adjustment
  • IP65 weather resistance for outdoor application
  • Multiple enrollment methods and easy installation

Detection Performance

  • Detection Method: Passive Infrared
  • Detection Range: 18 m
  • Detection Angle: 90°
  • Detection Zones: 118
  • Detectable Speed: 0.3~2m/s
  • Sensitivity: Auto; Pet
  • White Light Filter: 20000lux
  • Pet Immunity: Up to 24 kg
  • Digital Temperature Compensation: Support

Feature

  • Digital Processing: Support
  • Sealed Optics: Support
  • Tamper Protection: Front; Rear
  • Environment Temperature Indicator: Support
  • Signal Strength Indicator: Support

Interface

  • Power Switch: Power up enrolling
  • LED Indicator: Blue (Alarm)

Transmission

  • Transmission Technology: Tri-X Wireless
  • Transmission Method: Two-Way RF Wireless
  • Transmission Frequency: 433MHz
  • Transmission Security: AES-128 Encryption
  • Transmission Range (Free Space): 1Km
  • Frequency Hopping: Support
  • Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

  • Standard Battery Life: Up to 5 years (standby time)
  • Power Supply: Battery powered
  • Battery Type: CR123A × 2
  • Typical Voltage: 3V

General

  • Operation Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
  • Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • IP Rate: IP65
  • Dimension (WxHxD): 67.3 mm × 141.6 mm × 60 mm
  • Weight: 301 g
  • Mounting Height: 2.5 to 3 m High Mount; 0.8 to 1.2 m Low Mount
  • Mounting Method: Wall
  • Application Scenario: Indoor, Outdoor
  • Bracket: Adjustment bracket included
