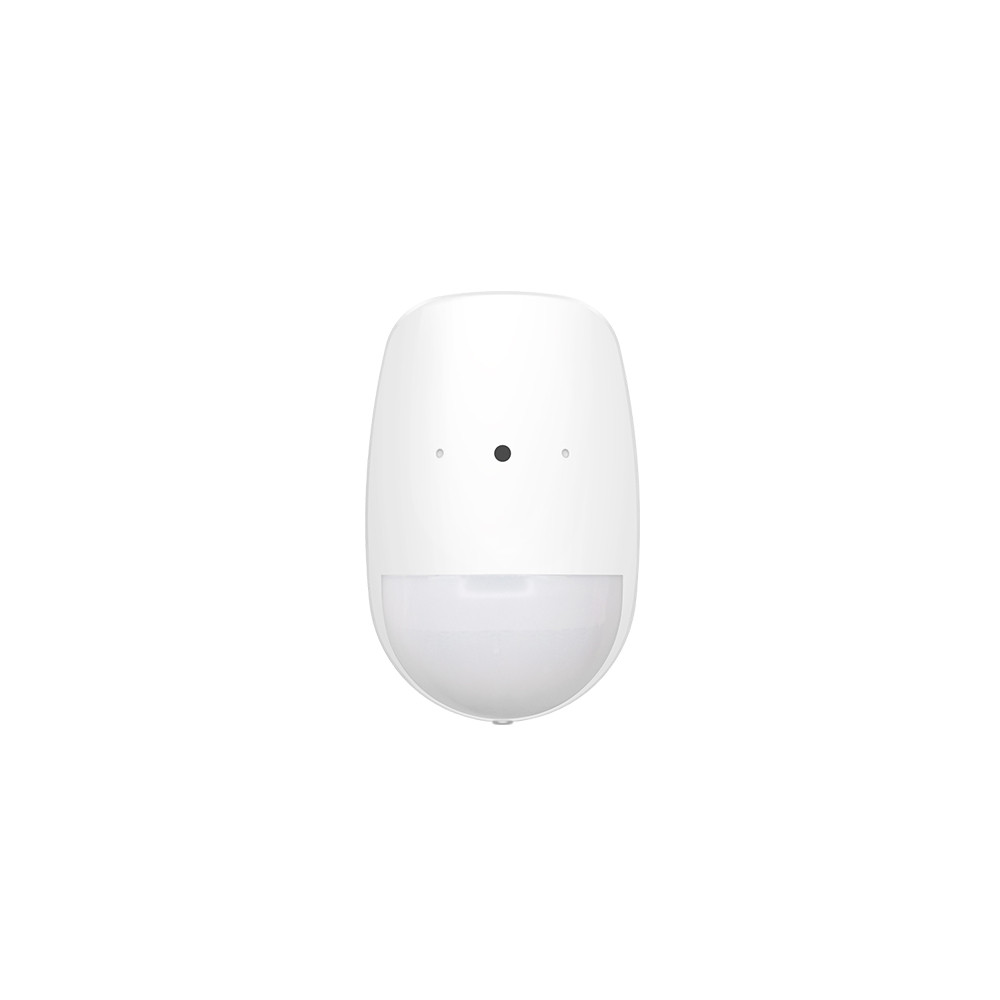

Hikvision DS-PDPG12P-EG2-WB

Hikvision DS-PDPG12P-EG2-WB 433MHz Battery-Operated Wireless Indoor PIR – with 12m Coverage Distance with 85.9° Wide Angle – with 8m Glass-Break Coverage Distance with 120° Wide-Angle – 30Kg Pet Immunity – To Work with AX Pro Hub

Hikvision DS-PDPG12P-EG2-WB 433MHz Battery-Operated Wireless Indoor PIR – with 12m Coverage Distance with 85.9° Wide Angle – with 8m Glass-Break Coverage Distance with 120° Wide-Angle – 30Kg Pet Immunity – To Work with AX Pro Hub

Features :-

  • PIR Detection Range: 12m / 85.9°
  • Glass Break Range: 8m / 120°
  • Up to 30KG pet immunity
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected

Detection Performance

  • Detection Method: Passive Infrared; Acoustic Sensor
  • Detection Range: 12m
  • Detection Angle: 85.9°
  • Detection Zones: 52
  • Detectable Speed: 0.3~2m/s
  • Pet Immunity: 30Kg
  • White Light Filter: 6500lux
  • PIR Sensitivity: Auto, High, Pet
  • Glass Break Range: 8m
  • Glass Type: Float; Plate; Tampered; Wired; Laminated Leaded; Double Glazing
  • Glass Thickness: 2.4mm to 6.4mm
  • Glass Break Sensitivity: 2m, 4m, 6m, 8m
  • Digital Temperature Compensation: Support
  • Glass Size: 0.3m x 0.3m to 3m x 3m
  • Creep Zone Protection: Support

Feature

  • Digital Processing: Support
  • Sealed Optics: Support
  • Tamper Protection: Front; Rear
  • Environment Temperature Indicator: Support
  • Signal Strength Indicator: Support

Interface

  • Power Switch: Power Up Enrolling
  • LED Indicator: Green (PIR), Red (BG), Blue (alarm)

Transmission

  • Transmission Technology: Tri-X Wireless
  • Transmission Method: Two-Way RF Wireless
  • Transmission Frequency: 433MHz
  • Transmission Security: AES-128 Encryption
  • Transmission Range (Free Space): 1Km
  • Frequency Hopping: Support
  • Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

  • Standard Battery Life: 4 years in work status (being triggered 20 times per day)
  • Power Supply: Battery Powered
  • Battery Type: CR123A × 2
  • Typical Voltage: 3V

General

  • Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity: 10% to 90%
  • Dimension (W x H x D): 65.5mm×103mm×48.5mm
  • Weight: 134g
  • Mounting Height: 1.8 to 2.4m
  • Mounting Method: Wall
  • Application Scenario: Indoor
  • Bracket: Optional Wall & Ceiling Accessory
