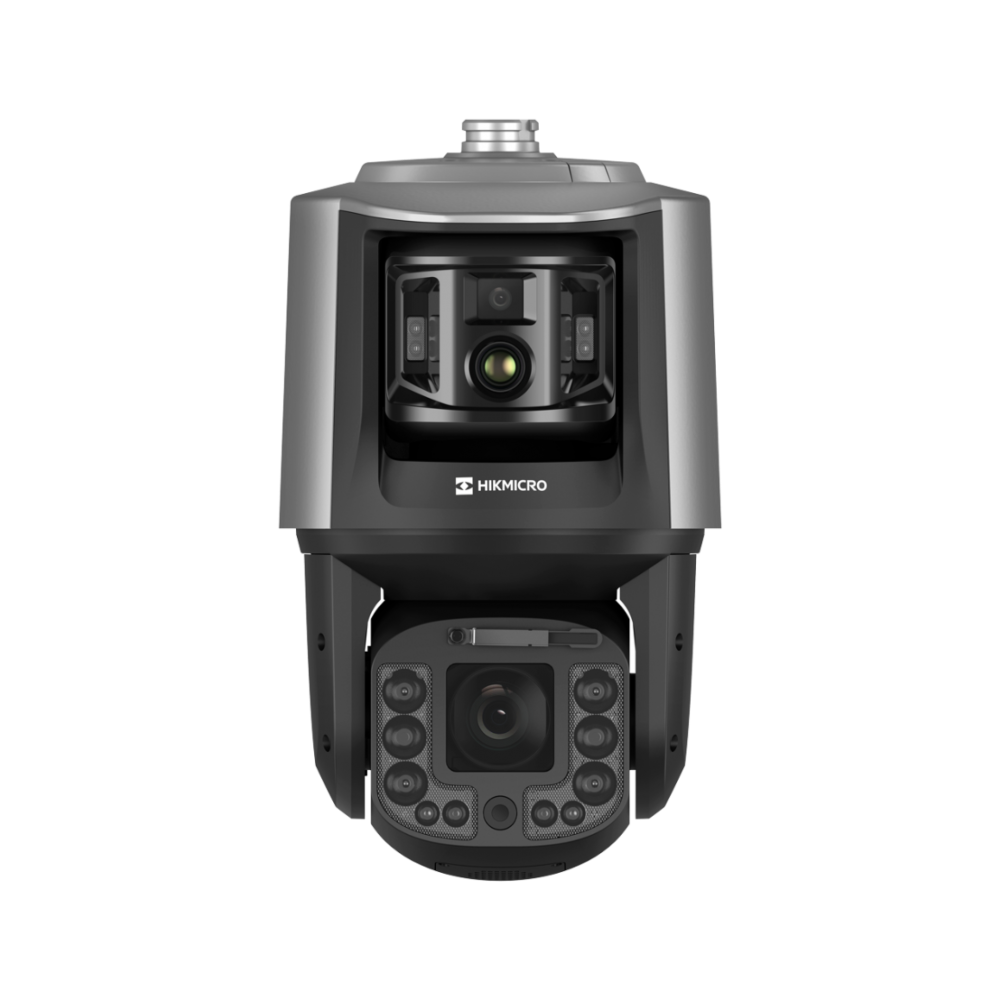

Hikvision HikMicro HM-TX3840-10/G0/T1 Security Thermal Series TandemVu AI Three-Channel (1 * 4MP Optical Fixed Channel + 1 * 4MP Optical 40x Zoom PTZ Channel + 1 * 384 x 288 Resolution Thermal Channel) Full-Colour (250m White-Light) Smart-Linkage-Tracking Weatherproof PTZ Camera

CCTV / Surveillance, IP Cameras, IP Surveillance, IP Thermal Cameras

Hikvision HikMicro HM-TX3840-10/G0/T1

Name: Hikvision HikMicro HM-TX3840-10/G0/T1
SKU: HM-TX3840-10/G0/T1

Hikvision HikMicro HM-TX3840-10/G0/T1 Security Thermal Series TandemVu AI Three-Channel (1 * 4MP Optical Fixed Channel + 1 * 4MP Optical 40x Zoom PTZ Channel + 1 * 384 x 288 Resolution Thermal Channel) Full-Colour (250m White-Light) Smart-Linkage-Tracking Weatherproof PTZ Camera

SKU: HM-TX3840-10/G0/T1 Categories: CCTV / Surveillance, IP Cameras, IP Surveillance, IP Thermal Cameras Tags: 120dB True-WDR, 40x Optical Zoom Lens, 4MP, Alarm, Auto-tracking, Camera, Fire Detection, Fixed Lens, Full Colour, HikMicro, Hikvision, Human Detection, IP Camera, IR, Multi-sensor Cameras, Network, Network Camera, Perimeter Protection, PoE, PTZ, Smart Linkage Tracking, Smoke Detection, Thermal Camera, Thermography, Vehicle Detection, Weatherproof, White Light LED

Key Features :-

TandemVU Thermal Camera
Bullet thermal 384 x 288 VOx
9.7mm thermal lens
Temperature measurement range -20ºC~150ºC (±8ºC)
Thermal sensitivity ≤25mK (25°C, F1.0)
Bullet visible 1/1.8” CMOS
4 Megapixel (2688 x 1520) optical channel
6.4mm lens
Color 0.005Lux @ (F1.5, AGC ON)
PTZ visible 1/1.8″ progressive scan CMOS
4Mpx (2688×1520)
6-240mm 40X lens
WDR (120 dB)
3D DNR
EIS
H.265 / H.264
RJ-45 10/100 BaseT
Audio
Alarms
MicroSD card slot up to 512GB
Web interface, CMS, Smartphone & NVR
ONVIF compatible
Weatherproof IP67
Surge protection
Speaker included

Hikvision Product-Link

Illuminator

Light Supplement: Up to 250m whitelight supplement

Smart Function

VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

System Function

Click Linkage: One-Touch automatically calibration
Tracking Mode: Manual/Auto
Event Tracking: Intrusion Detection, Line Crossing Detection

Bullet Camera- Thermal Module

Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Resolution: 384 x 288
Pixel Pitch: 12 μm
Spectral Range: 8 μm to 14 μm
NETD (Noise Equivalent Temperature Difference): < 25 mK (25°C, F1.0)
Focal Length: 9.7 mm
IFOV: 1.2 mrad
Field of View: 28.1° × 21.5° (H × V)
Min. Focusing Distance: 1.3 m
Aperture: F1.0
Digital Zoom: x2, x4, x8

Bullet Camera- Optical Module

Image Sensor: 1/1.8”CMOS
Resolution: 2688 × 1520
Focal Length: 6.4 mm
Field of View: 51.7° × 28.2° (H × V)
Min. Illumination: Color: 0.005 Lux @ (F1.5, AGC ON)
Aperture: F1.5

Bullet Camera- General

Main Stream
- - Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
  - Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream
- - Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)
  - Optical: 50 Hz: 25 fps (704 × 576, 352 × 288); 60 Hz: 30 fps (704 × 480, 352 × 240)
Video Compression: Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/AAC
Alarm Input: 2-ch inputs (0-5 VDC)
Alarm Output: 2-ch relay outputs, alarm response actions configurable
Audio Input: 1-ch, Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output: 1-ch, Linear Level; Impedance: 600 Ω
Communication Interface: 1* RJ45 10 M/100 M /1000M Self-adaptive Ethernet interface; 1* RS-485 interface; 1* BNC 1.0 V [p-p]/75 Ω video output

Optical Speed Dome

Image Sensor: 1/1.8” progressive scan CMOS
Resolution: 2688 x 1520
Min. Illumination: Color: 0.0003 Lux @ (F1.3, AGC ON); 0 Lux with light on
Focal Length: 6 – 240mm, 40 × optical zoom
Field of View: 59°(H)*34.16°(V)-1.77°(H)*1.0°(V)
Digital Zoom: ×2, ×4, ×8, ×16
Aperture Range: F1.3-F4.6
Focus Mode: Auto/Semi-auto/Manual
WDR: 120 dB
Optical Defog: Yes
Image Enhancement: 3D DNR, EIS, HLC/BLC
Pan Speed: configurable from 1° to 160°/s
Tilt Speed: configurable from 1°/s to 90°/s
Main Stream: 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120); 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144)
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264/MJPEG

Network

Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
Simultaneous Live ViewUp to 20 channels
User/Host level: Up to 32 users, 3 levels: Administrator, Operator, User
Security: User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Client: iVMS-4200, Hik-Connect
Web Browser: Live view (plug-in allowed) : Internet Explorer 11; Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +; Local service : Chrome 57.0 +, Firefox 52.0 +

General

Power Supply: DC36V, AC24V, PoE++
Power Consumption: Max. 90W
Working Temperature/Humidity: -40 °C to +70 °C (- 40 °F to 149 °F); Humidity: 90% or less
Protection Level: IP67 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions: 458.7mm x 266.6mm x 290mm
Weight: 13.5kg
