Lenkeng LKV728P

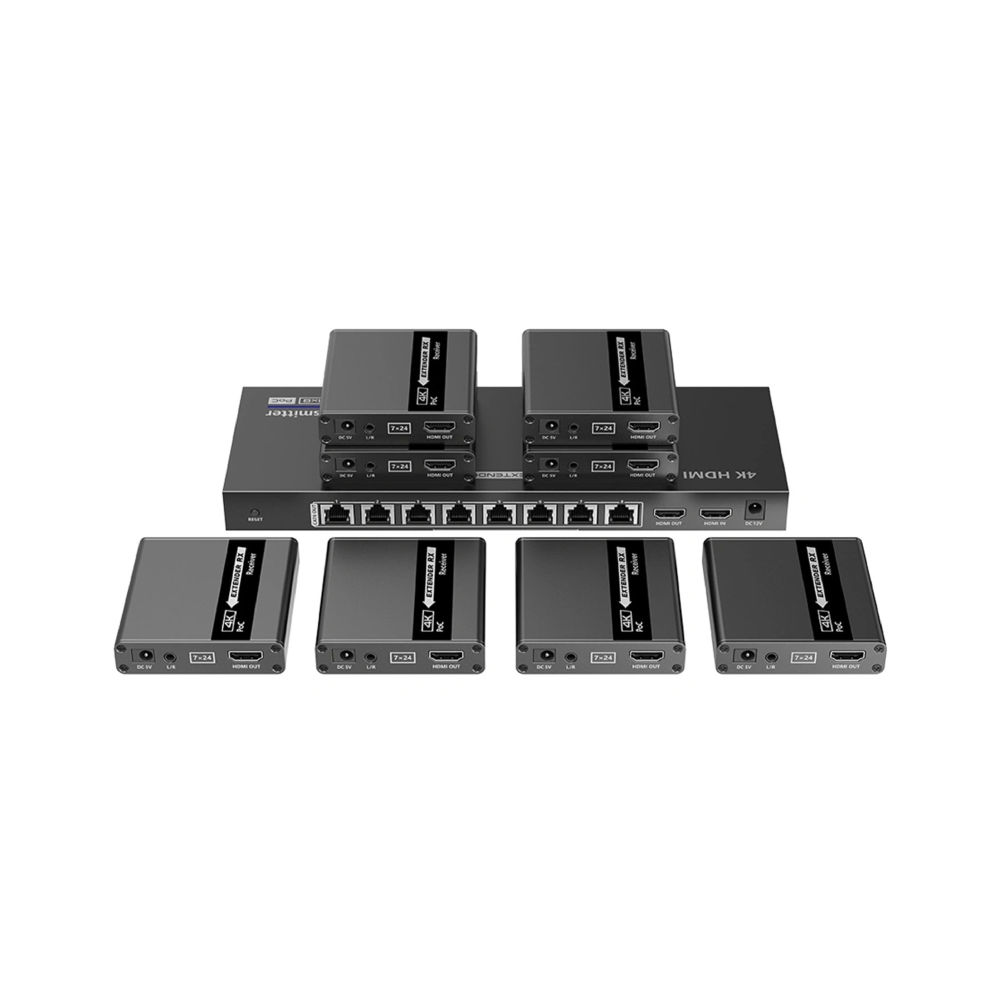

Lenkeng LKV728P 1-In-8-Out 4K @ 30Hz HDMI Extender Splitter Kit – Includes 1 * Transmitter + 8 * Receivers – Compatible with CAT6/6A/7 Cables – Up To 40m Distance (4K) / Up To 70m Distance (1080P)
SKU: LKV728P
Categories: Audio & Visual, HDMI Extenders, HDMI Products, HDMI Splitters
Tags: 1-In-8-Out, 4K, CAT6, Extender, HDMI, Kit, Lenkeng
Lenkeng LKV728P 1-In-8-Out 4K @ 30Hz HDMI Extender Splitter Kit – Includes 1 * Transmitter + 8 * Receivers – Compatible with CAT6/6A/7 Cables – Up To 40m Distance (4K) / Up To 70m Distance (1080P)
Key Features :-
- 70m and zero latency transmission
- Supports CAT6/6A/7 network cable, maximum transmission distance can reach up to 40m for 4K @ 30Hz signals and up to 70m for 1080p @ 60Hz signals.
- Supports 4K @ 30Hz HDR
- Supports PoE-Power over network cable
- Distribute 1 HDMI source to 8 displays over network cables simultaneously
| Specifications | |
| Splitter | 1 input, 8 output |
| HDMI compliance | HDMI 1.4 |
| HDCP compliance | HDCP 1.4 |
| Transmission medium | CAT6/CAT6A/CAT7 |
| Transmission distance | 1080p@60Hz≤70m, 4K@30Hz≤40m |
| Video bandwidth | 10.2Gbps |
| Video support | 800×600, 1024×768, 1280×720, 1280×960, 1366×768, 1440×900, 1680×1050, 1920×1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 4K@24/25/30Hz |
| Audio support | PCM/LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 5.1CH |
| PoE | support |
| 1080P HDR10 | support |
| HDMI Loop-out | support |
| EDID through | support |
| RS-232 Control | 3 Pin: GND/RxD/TxD, follow RS-232 levels; Baud rate 9600 |
| Bi-directional IR passback | support |
| Input TMDS signal | 0.7~1.2Vp-p |
| Input DDC signal | 5Vp-p |
| Input | HDMI IN ×1, DC2.1 ×1, 3.5mm jack ×1 (IR) |
| Output | HDMI OUT×1, RJ45 ×8, 3.5mm jack ×1 (IR) |
| HDMI connector | Type A 19 Pins, Female |
| Network cable standard | CAT6/CAT6A/CAT7, follow IEEE-5688 standard |
| Mechanical | |
| Housing | TX: Iron, RX: Aluminium alloy material+crystal panel |
| Dimensions (L×W×H mm) | TX: 272.0(L) x 96.5(W) x 23.0(H) mm, RX: 75.0(L) x 80.0(W) x 18.0(H)mm |
| Weight | TX: 615g, RX: 160g x8 |
| Power supply | TX: DC12V/5A |
| Power consumption | TX<34W RX<2.5W |
| Operation temperature | -20°C~60°C |
| Storage temperature | -30°C~70°C |
| Relative humidity | 0%~90% (no condensation) |
| Protection | Lightning protection, surge protection, ESD protection |
