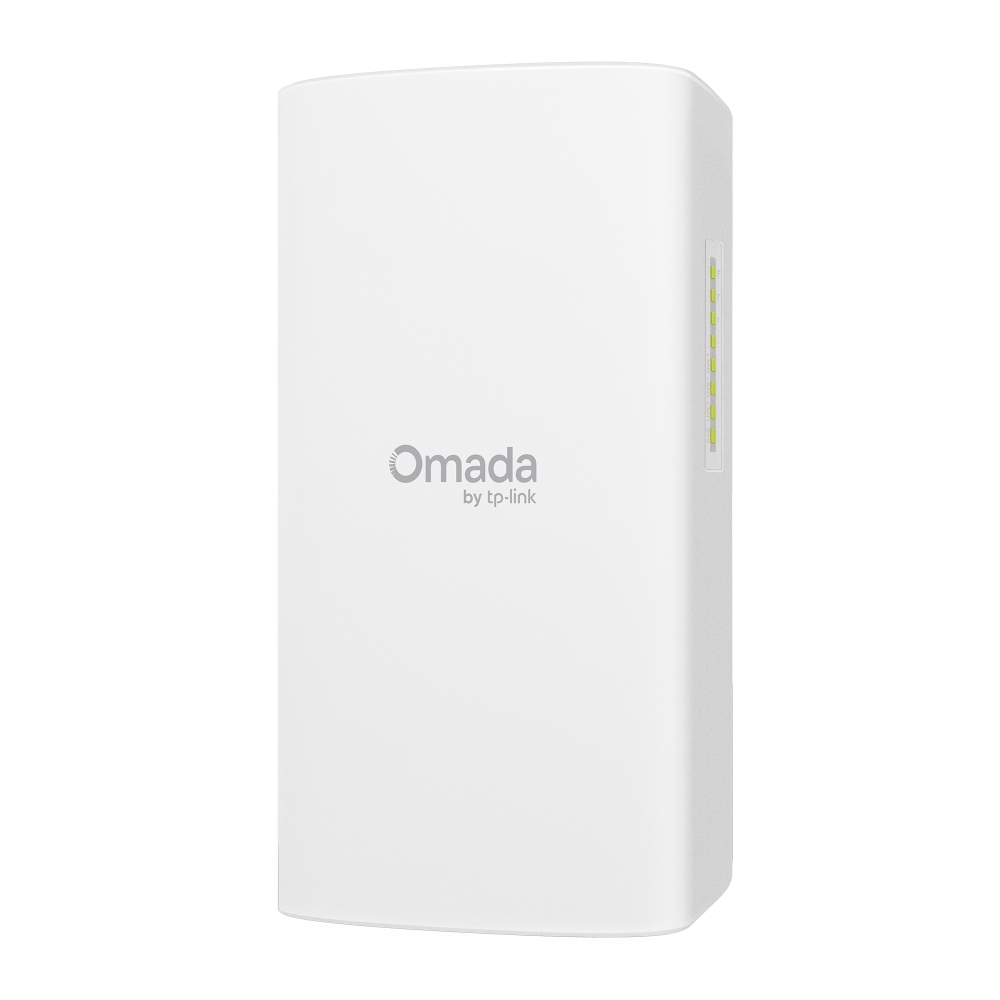

Omada Networks Flex Bridge 5
Omada Networks Flex Bridge 5 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 5Kms Range – Supports 12VDC Input and 24VDC Passive / 48VDC 802.3at PoE Input – 2* Passive PoE Injectors Included – Supports 2 * GbE PoE Output Ports
Omada Networks Flex Bridge 5 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge Kit – P2P (Point to Point) / P2MP (Point to Multi-Point) – Up To 5Kms Range – Supports 12VDC Input and 24VDC Passive / 48VDC 802.3at PoE Input – 2* Passive PoE Injectors Included – Supports 2 * GbE PoE Output Ports
Key Features :-
- Works with Flex & Sector bridges for Point-to-Point/Multipoint Bridging: Supports bridging between Flex Bridges, optimised for 8 nodes, and up to 32 with a Sector Bridge hub.*
- Long-Range 5 GHz 867Mpbs Wireless Bridging up to 5km: Ideal for extending networks across buildings and remote locations.△
- Powering Surveillance with 2 x PoE Out Ports: Features 3 Gigabit PoE ports, including 2 PoE Out ports, easily powering IP cameras and simplifying surveillance network expansion.
- Role & DIP Switches for Simple Pairing: Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.

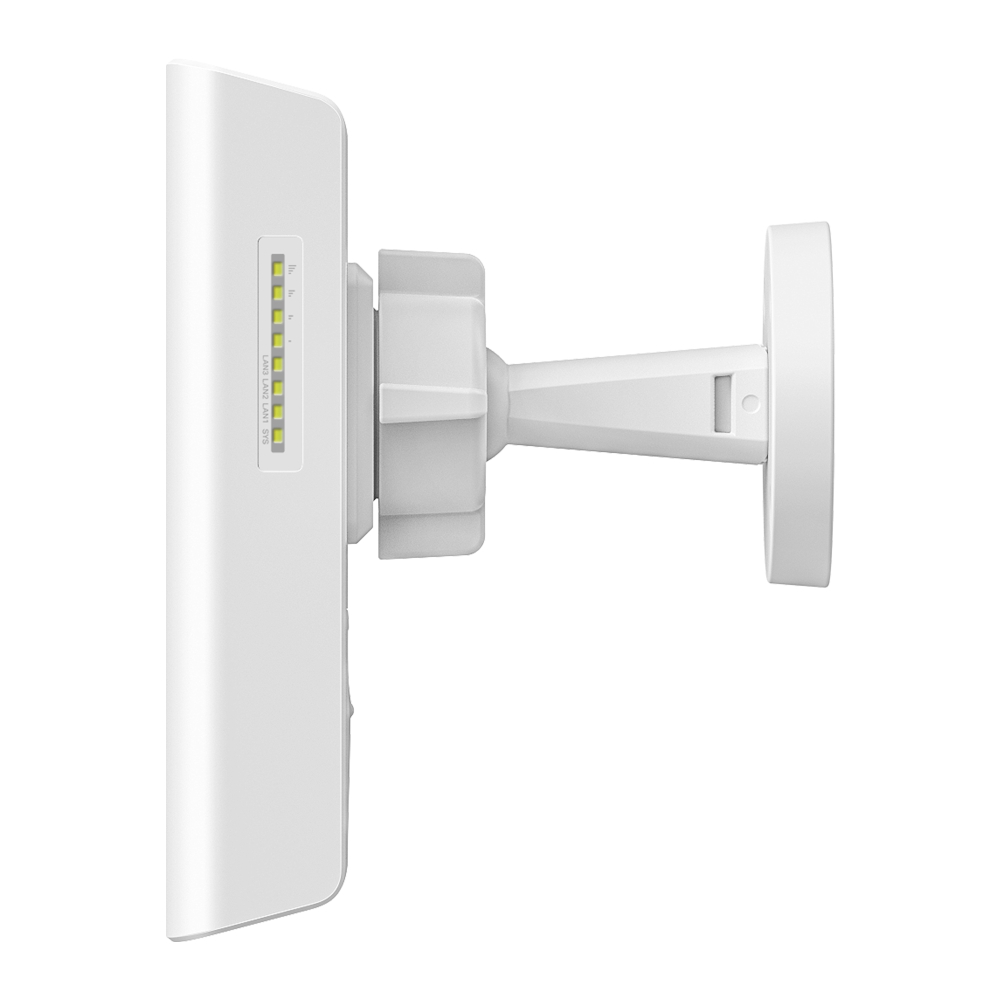

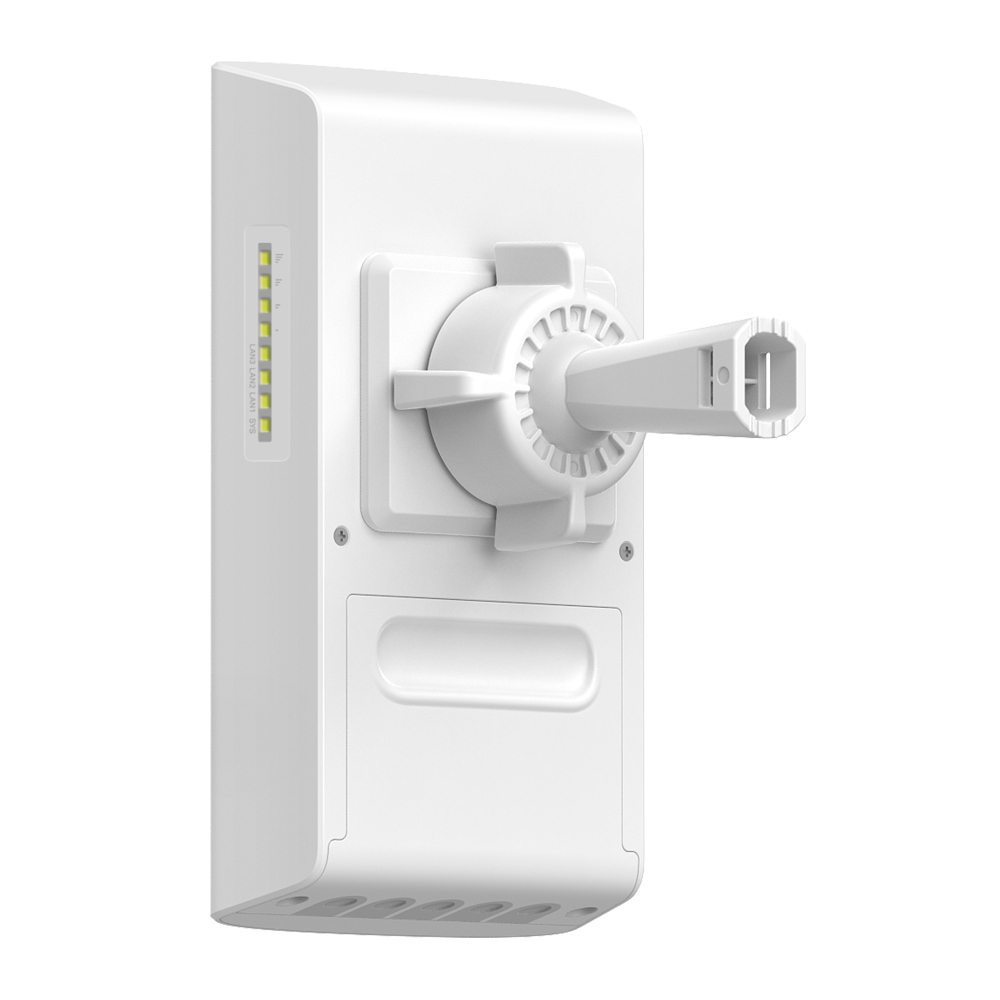

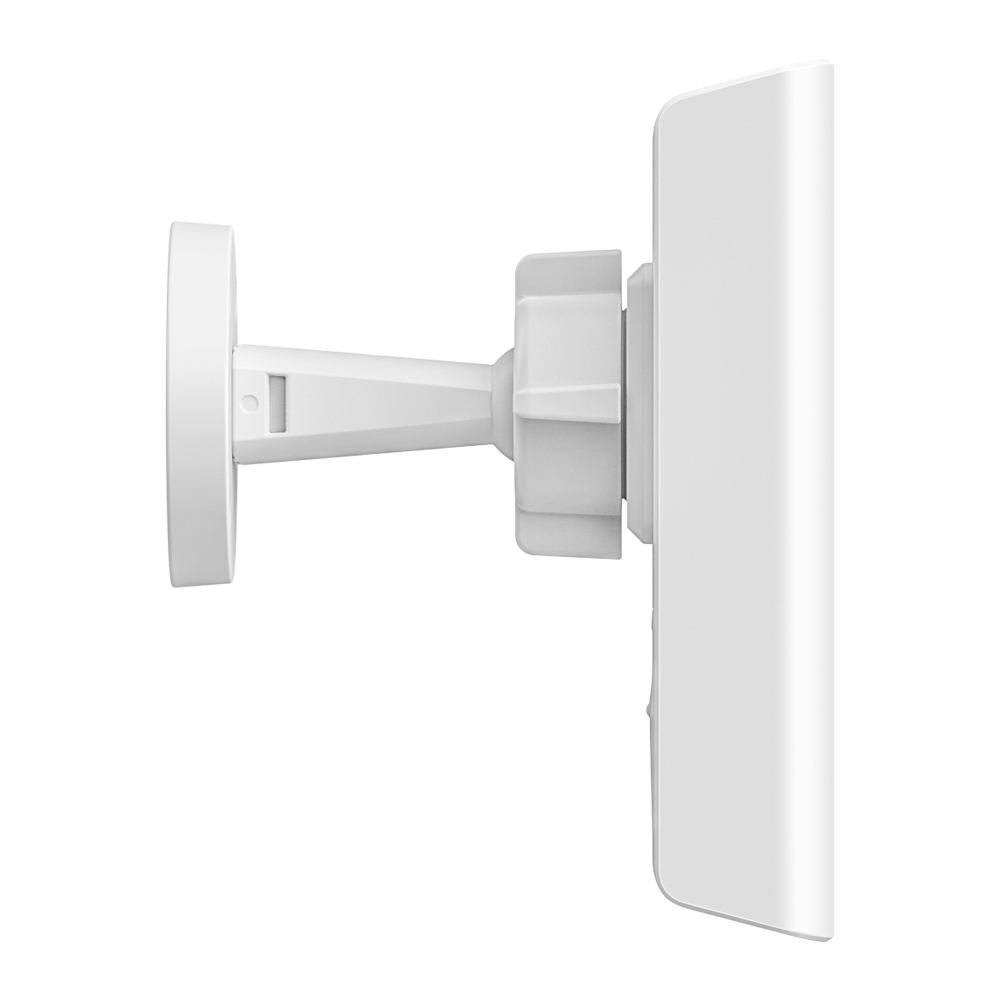

- Easy Alignment with Ball-Joint & Versatile Installation: Flexible wall and pole mounting with an optional ball-joint, allows for quick angle adjustment and fast deployments.
- Industry-Leading IP66 Weatherproof: IP66 weatherproof and 6 kV lightning protection safeguard your network in harsh outdoor environments.**
- Flexible Power Supply Options: Supports 802.3at/af, Passive PoE (54V passive PoE adapter included), and 12V DC, allowing flexible power supply via a PoE switch, the included passive PoE adapter, or solar power.
- App-Guided Alignment for Optimal Performance: Simply bridge alignment with real-time signal strength visualisation on the Omada app.
- Remote Monitoring with Standalone & SDN Management: Use the Omada app for easy on-site setup-no internet required. For added flexibility, switch to Omada SDN, enabling cloud management via the Omada app or web portal for seamless control, and monitor from anywhere.†
- 3 years limited b2b warranty
| HARDWARE FEATURES | |
|---|---|

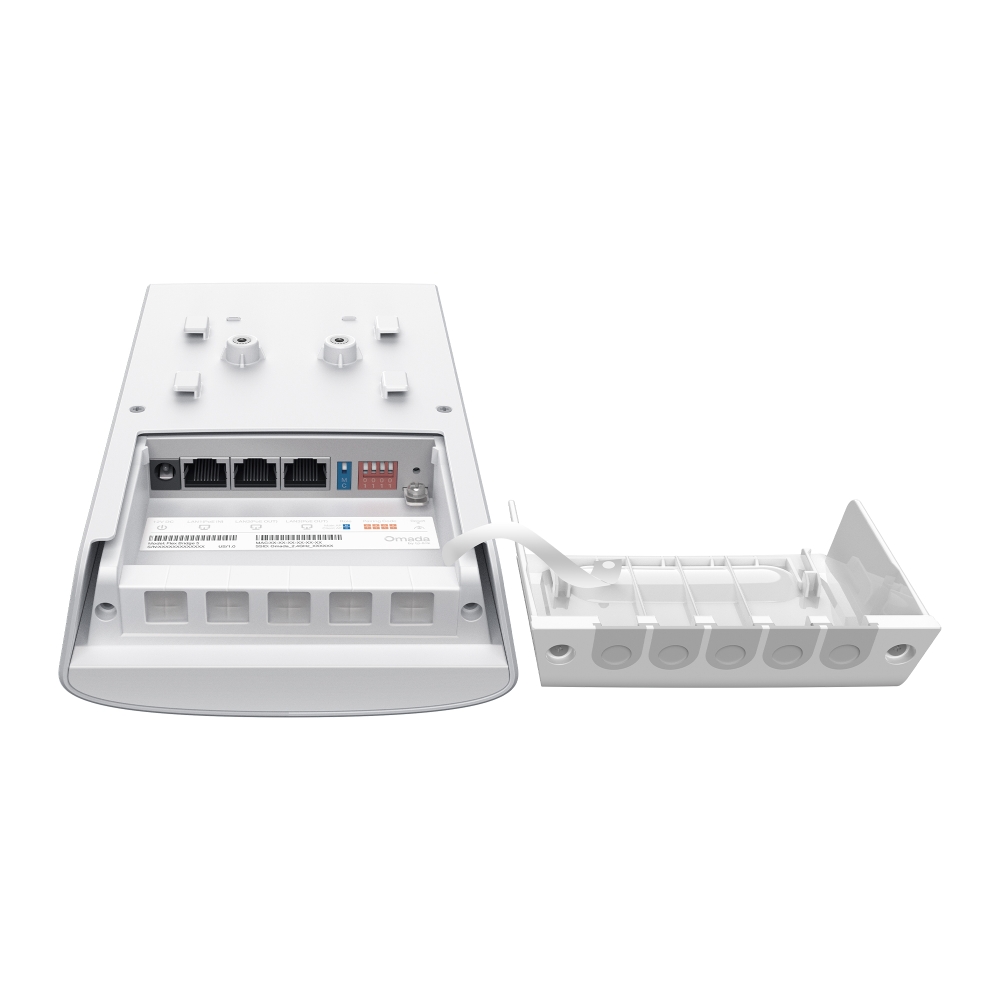

| Interface | 3× Gigabit Ethernet Ports (2 Support PoE Out) |
| Button | Reset |
| DIP Switch | • Role Switch • Pairing Code Switch |
| Power Supply | • 12V DC • 802.3at/af PoE • 24V Passive PoE (54V Passive PoE Adapter Included – For Dry Indoor Use Only) |
| Max. Power Consumption | DC: 12W PoE: 26.06W with PoE out |
| Dimensions ( W x D x H ) | 8.4 × 2 × 4.7 in (214.2 × 50.8 × 119.8 mm) |
| Antenna | • 2.4 GHz: 1 × 1 dBi (peak gain), internal omnidirectional antennas • 5 GHz: 2 × 17 dBi (peak gain), internal directional antennas • Beamwidth: Horizontal 40°, Vertical 18° |
| Weatherproof Enclosure | IP66 |

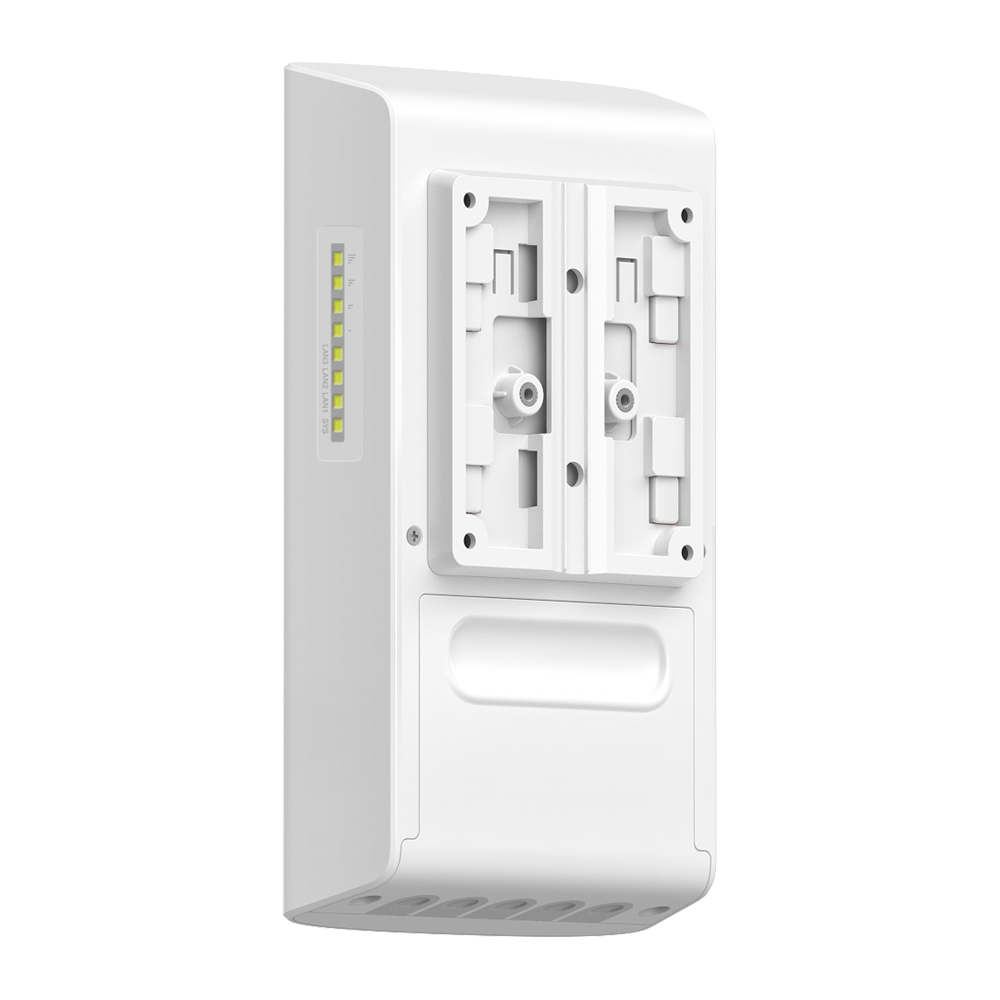

| Mounting | Pole and wall mounting (Kits included) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes |
| WIRELESS FEATURES | |
|---|---|
| PtP | Yes |
| PtMP | 8 Recommended, 32 Maximum |
| Transmission Distance | 5,000 m (3.1 mi) |
| Wireless Standards | IEEE 802.11 a/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • MU-MIMO: 5G 2×2 MU-MIMO DL • Multiple SSIDs: 1 • Wireless Statistics • Reboot Schedule • RADIUS Accounting • Static IP/Dynamic IP • Rate Limit • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast |
| Wireless Security | • VLAN • Rogue AP Detection • Wireless Encryption |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP) <30dBm (5 GHz band3, EIRP)• FCC: <23.5dBm (5 GHz band1) <25dBm (5 GHz band4) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • Flex Bridge 5 • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord |
| Lightning Protection | • Air discharge: ±8kV • Contact discharge: ±4kV • Common mode 10/700: ±6kV |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
| Weight | 0.59 kg (1.3 lbs) |
How to Setup and Configure TP-Link Omada EAP Mesh
How to establish a point-to-point connection with EAP-Bridge
TP-Link Omada Support Articles
Key Reasons to Choose Omada Networks
1. Centralized Management
Omada’s Software Defined Networking (SDN) platform allows you to manage routers, switches, and wireless access points from a single dashboard instead of configuring each device separately.
2. Cloud-Based Monitoring
You can remotely monitor and manage customer sites from anywhere using the Omada cloud platform and mobile app, making it ideal for MSPs and IT providers.
3. No Ongoing License Fees
Unlike some enterprise networking brands, Omada offers cloud management without recurring per-device licensing costs, reducing long-term ownership expenses.
4. Easy Multi-Site Deployment
Zero-touch provisioning allows devices to be shipped directly to a site and automatically configured when connected to the internet. This is particularly useful for chain stores, schools, and distributed businesses.
5. Complete Ecosystem
Omada offers:
- Security gateways/routers
- Managed PoE switches
- Indoor Wi-Fi access points
- Outdoor Wi-Fi access points
- Hardware controllers
- Software controllers
All devices integrate into a single management platform.
6. Strong Wi-Fi Performance
Modern Omada access points support:
- Wi-Fi 6
- Wi-Fi 6E
- Wi-Fi 7
- Seamless roaming
- Mesh networking
- High-density client environments
This makes them suitable for offices, schools, hotels, and apartment complexes.
7. Advanced Business Features
Omada supports:
- VLANs
- Guest networks
- VPNs
- Access Control Lists (ACLs)
- 802.1X authentication
- Traffic monitoring
- QoS
- Network segmentation
These features are important for cybersecurity and network performance.
8. Excellent Value for Money
Many installers compare Omada with:
- Ubiquiti
- Grandstream
- Cisco
- Aruba
Omada generally provides similar core SMB functionality at a lower hardware cost.
For Security & IT Professionals
Since you work with surveillance and IT systems, Omada is particularly attractive because:
- PoE switches can power IP cameras, access-control devices, intercoms, and APs.
- VLANs can isolate CCTV traffic from office networks.
- Remote management reduces support visits.
- Multi-site monitoring simplifies customer support.
- High-power PoE models support modern PTZ cameras and Wi-Fi bridges.
For many New Zealand installers, Omada is often the best balance of cost, features, and manageability, especially when compared with higher-priced enterprise networking brands.
