Omada Networks Fusion 2.5G
Omada Networks Fusion 2.5G Cloud VPN Gateway / Router / Controller – App Guided Onboarding Easy Setup – 5 * 2.5Gbps WAN & LAN Ports – Desktop / Wall-Mount / Rackmount – 2.5-Inch LED Touchscreen – USB-C Powered – Supported By Omada Cloud App
Omada Networks Fusion 2.5G Cloud VPN Gateway / Router / Controller – App Guided Onboarding Easy Setup – 5 * 2.5Gbps WAN & LAN Ports – Desktop / Wall-Mount / Rackmount – 2.5-Inch LED Touchscreen – USB-C Powered – Supported By Omada Cloud App
Key Features :-
- License‑Free Cloud Management for Multi‑Site Work
- Simplified Setup with App-Guided Onboarding via Bluetooth and One-Tap Bulk Device Adoption
- Enterprise‑Grade Performance: Quad-Core CPU, 5× 2.5G Ports, Up to 4‑WAN Load Balancing with Auto Failover, 2.1 Gbps-Class IDS/IPS Throughput*
- Quick Troubleshooting via Touchscreen for Less On-Site Work
- Secure Remote Network Access in One Click Away with Omada LightLink VPN
- Advanced Software Capabilities: App‑Based ACL, Auto QoS, Full Mesh SD-WAN, Content Filtering & Ad Blocking, DPI
- Flexible Mounting Options: Desktop, Wall-Mountable**, Rack-Mountable**
- 5 years limited b2b warranty
| Overview | |
|---|---|
| Built-In Omada OS Applications | Network Application |
| Managed Omada Devices | Recommended for up to 30 devices |
| Client Capacity | Recommended for up to 300 connected clients |

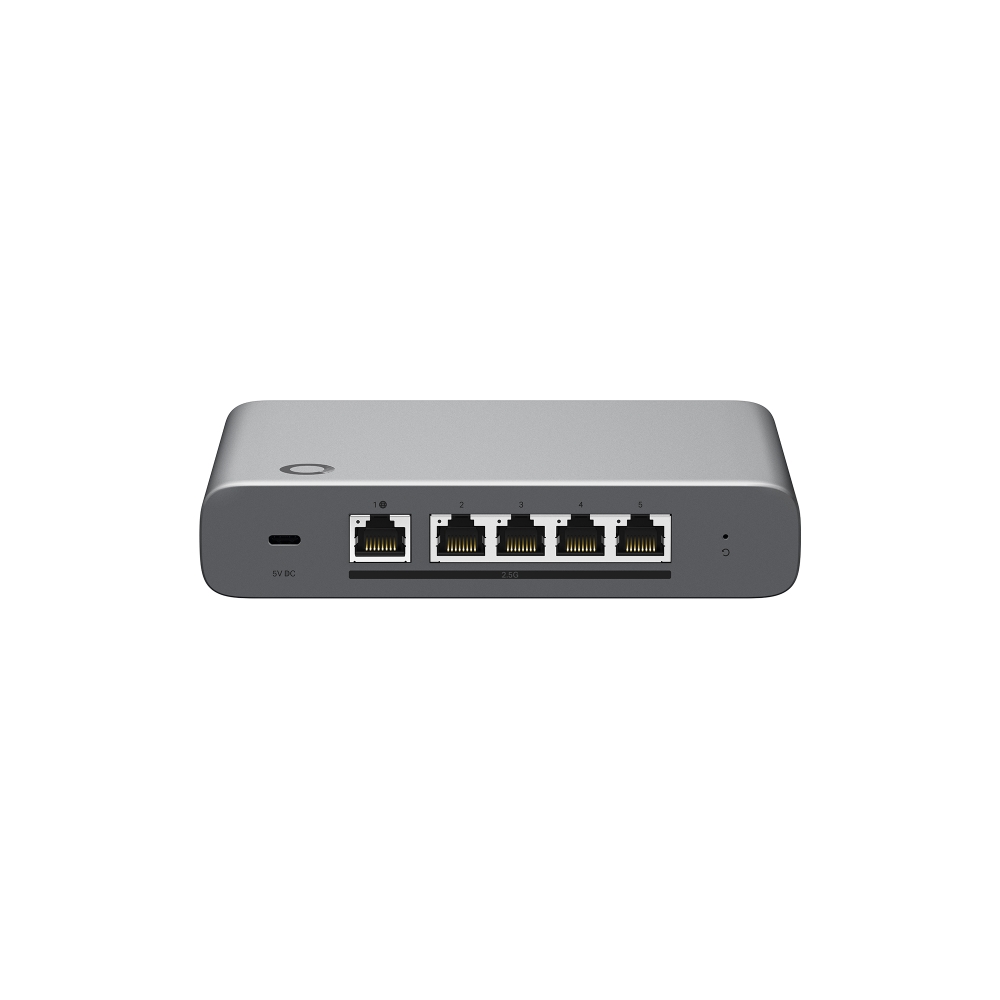

| Interface | • 1× 2.5G RJ45 WAN port • 4× 2.5G RJ45 LAN/WAN ports • Up to 4 simultaneous WAN ports |
| IPS Throughput | 2,183 Mbps |
| Site-to-Site VPN Throughput | 1,023 Mbps† |
| Management | Cloud, local, and Omada App management |
| Mounting | • Desktop • Wall-mount (magnetic-mount plate sold separately) • Rack-mount (rackmount kit sold separately) |

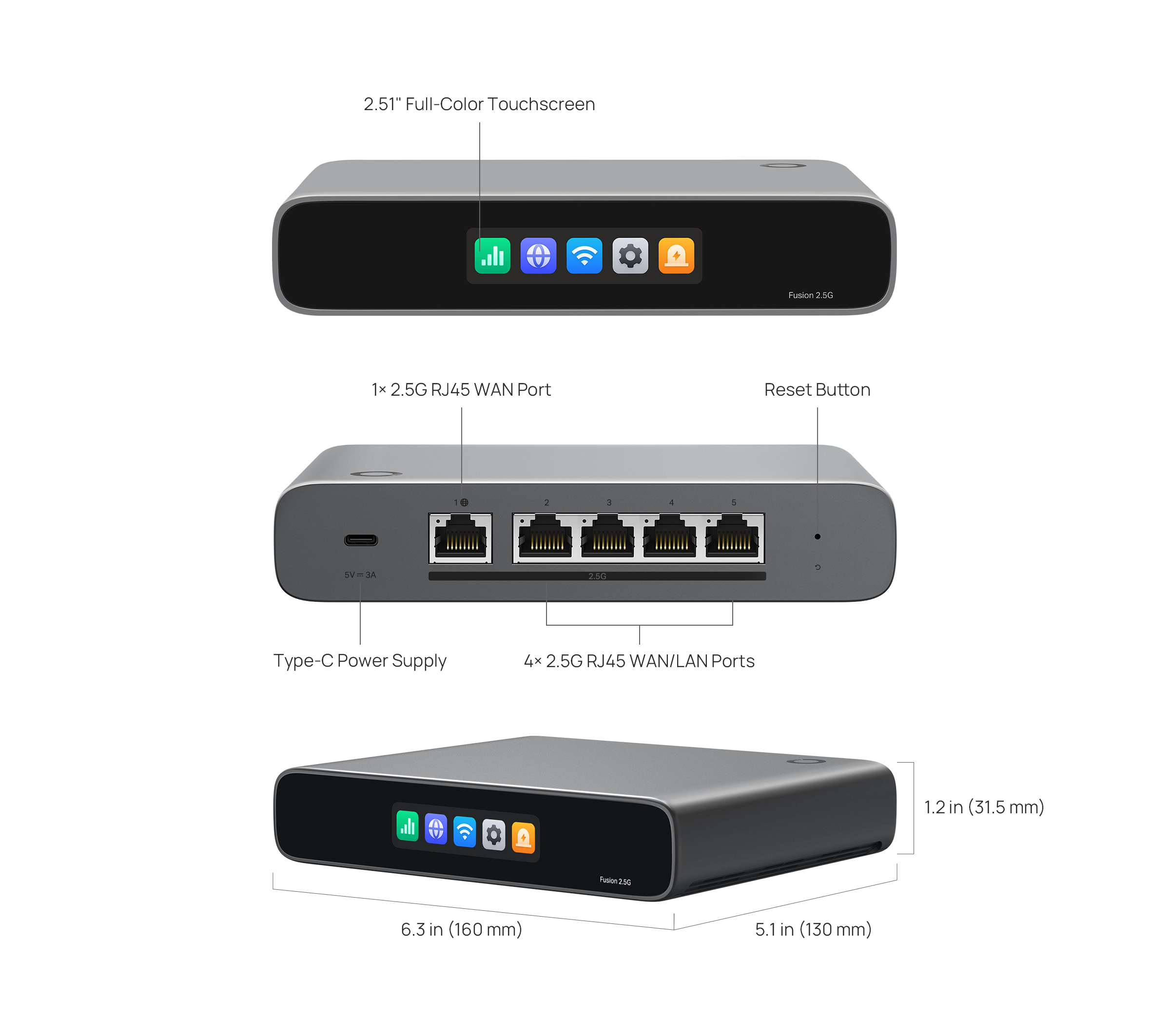

| Dimensions | 6.3 × 5.12 × 1.24 in (160 × 130 × 31.5 mm) |
| Built-in Omada Controller§ | |
|---|---|
| Cloud Access | √ |
| Local Management | √ |
| Omada App | √ |
| Multi-Site Management | Via the Omada Cloud Management Platform |
| Restore & Backup | √ |
| Automatic Device Discovery | √ |
| Network Topology | √ |
| Dashboard | √ |
| Device List / Client List | √ |
| Logs / Alerts / Events | √ |
| Batch Firmware Upgrade | √ |
| Health Monitoring | √ |
| Internet Activity | √ |
| Captive Portal | √ |
| RADIUS / LDAP Authentication | √ |
| 802.1X Authentication | √ |
| OUI-Based VLAN | √ |
| Diagnostics Tools | Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring |
| SNMP | v1/v2c/v3 |
| SECURITY | |
|---|---|
| IDS/IPS | √ |
| DPI | √ |
| Application-Based ACL | √ |
| Content Filtering | √ |
| Ad Blocker | √ |
| Safe Search | √ |
| DNS Security | √ |
| Firewall | √ |
| Attack Defense | √ |
| ARP Inspection | √ |
| VPN & SD-WAN | |
|---|---|
| Omada LightLink VPN | √ |
| Site-to-Site VPN | WireGuard VPN / IPsec VPN |
| VPN Server | WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN |
| VPN Client | WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN |
| SD-WAN | Full Mesh Mode |
| VPN Throughput | • Omada LightLink VPN: 527 Mbps • IPsec VPN: 1,023 Mbps • WireGuard VPN: 605 Mbps • OpenVPN: 223 Mbps • L2TP VPN: 892 Mbps • PPTP VPN: 193 Mbps • SSL VPN: 250 Mbps |
| Networking | |
|---|---|
| WAN Connection | Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite |
| Multi-WAN Failover & Load Balancing | √ |
| DHCP Server | √ |
| VLAN Segmentation | √ |
| Bandwidth Control | √ |
| QoS | √ |
| Static Routing | √ |
| Policy Routing | √ |
| NAT | Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT |
| Dynamic DNS | TP-Link DDNS, 3rd-party DDNS, custom DDNS |
| IPv6 | Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode |
| Bonjour / mDNS | √ |
| IGMP v2/v3 Proxy | √ |
| HARDWARE | |
|---|---|
| Touchscreen | 2.51-inch color LCM touchscreen |
| Button | Reset button |
| CPU | Quad-core ARM Cortex-A53 @ 2.0 GHz |
| Memory | 2 GB DDR4 |
| Storage | 64 Mbit NOR flash + 16 GB eMMC |
| Power Supply | USB-C power adapter, 100–240 V AC, 50/60 Hz input, 5 V DC / 3 A output |
| Max Power Consumption | 8.18 W, with power adapter |
| Enclosure | Polycarbonate |
| LED | Ethernet |
| Fan | Fanless |
| Net Weight | 1.12 lb (510 g) |
| Surge Protection | 4 kV surge protection |
| ESD Protection | ±8 kV (Air), ±4 kV (Contact) |
| Onboarding | Bluetooth or Ethernet |
| Certifications | CE, FCC, RoHS |
| Environment | • Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C) • Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C) • Operating Humidity: 10% to 90% RH, non-condensing • Storage Humidity: 5% to 90% RH, non-condensing |
TP-Link Omada Support Articles
Key Reasons to Choose Omada Networks
1. Centralized Management
Omada’s Software Defined Networking (SDN) platform allows you to manage routers, switches, and wireless access points from a single dashboard instead of configuring each device separately.
2. Cloud-Based Monitoring
You can remotely monitor and manage customer sites from anywhere using the Omada cloud platform and mobile app, making it ideal for MSPs and IT providers.
3. No Ongoing License Fees
Unlike some enterprise networking brands, Omada offers cloud management without recurring per-device licensing costs, reducing long-term ownership expenses.
4. Easy Multi-Site Deployment
Zero-touch provisioning allows devices to be shipped directly to a site and automatically configured when connected to the internet. This is particularly useful for chain stores, schools, and distributed businesses.
5. Complete Ecosystem
Omada offers:
- Security gateways/routers
- Managed PoE switches
- Indoor Wi-Fi access points
- Outdoor Wi-Fi access points
- Hardware controllers
- Software controllers
All devices integrate into a single management platform.
6. Strong Wi-Fi Performance
Modern Omada access points support:
- Wi-Fi 6
- Wi-Fi 6E
- Wi-Fi 7
- Seamless roaming
- Mesh networking
- High-density client environments
This makes them suitable for offices, schools, hotels, and apartment complexes.
7. Advanced Business Features
Omada supports:
- VLANs
- Guest networks
- VPNs
- Access Control Lists (ACLs)
- 802.1X authentication
- Traffic monitoring
- QoS
- Network segmentation
These features are important for cybersecurity and network performance.
8. Excellent Value for Money
Many installers compare Omada with:
- Ubiquiti
- Grandstream
- Cisco
- Aruba
Omada generally provides similar core SMB functionality at a lower hardware cost.
For Security & IT Professionals
Since you work with surveillance and IT systems, Omada is particularly attractive because:
- PoE switches can power IP cameras, access-control devices, intercoms, and APs.
- VLANs can isolate CCTV traffic from office networks.
- Remote management reduces support visits.
- Multi-site monitoring simplifies customer support.
- High-power PoE models support modern PTZ cameras and Wi-Fi bridges.
For many New Zealand installers, Omada is often the best balance of cost, features, and manageability, especially when compared with higher-priced enterprise networking brands.
