CCTV / Surveillance, IP Cameras, IP Surveillance, IP Turret Cameras
Uniview IPC3616LE-ADF28KM-DL

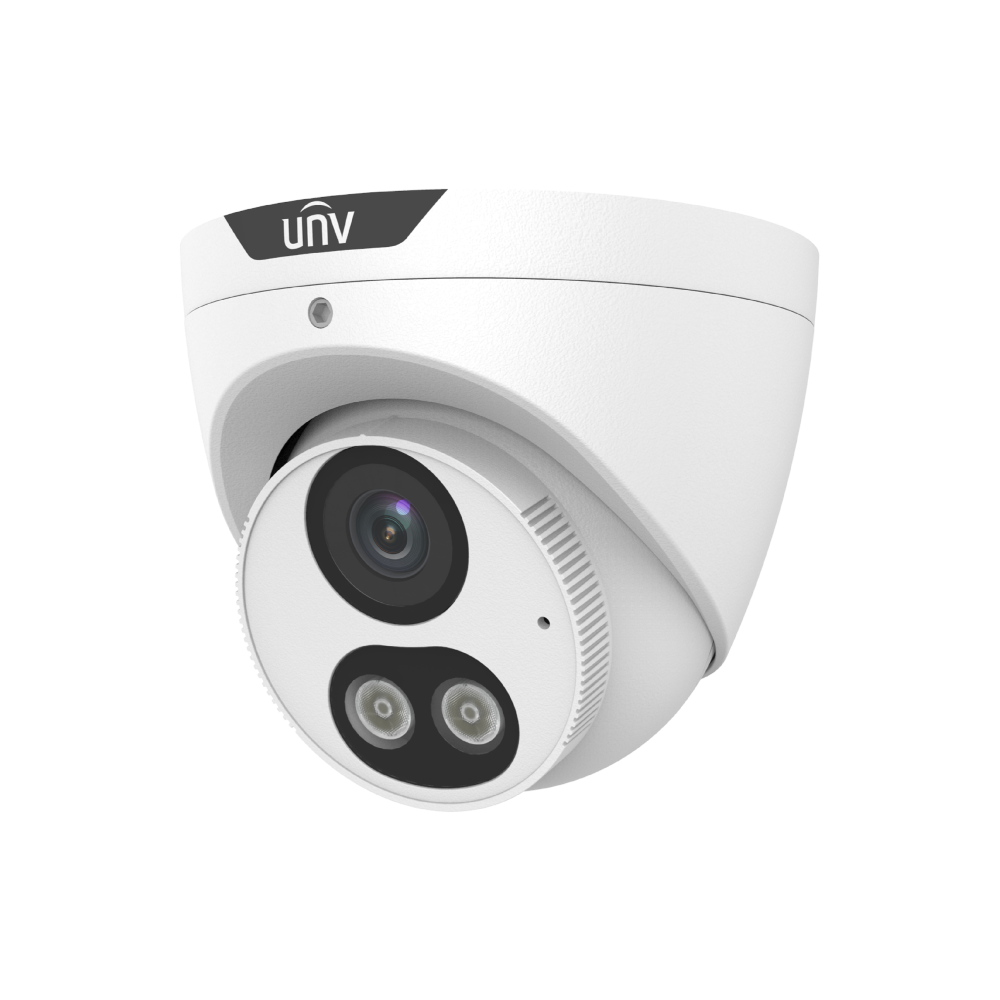

Uniview IPC3616LE-ADF28KM-DL Easystar H265 6MP PoE IP Smart-Dual-Light (30m IR + 30m White-Light) 120dB True-WDR Starlight Ultra-Low-Light (0.003 Lux Colour) Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens – with Built-in Audio Mic – 102.73° Horizontal Wide Angle
Uniview IPC3616LE-ADF28KM-DL Easystar H265 6MP PoE IP Smart-Dual-Light (30m IR + 30m White-Light) 120dB True-WDR Starlight Ultra-Low-Light (0.003 Lux Colour) Weatherproof Eyeball Turret Camera with 2.8mm Fixed Lens – with Built-in Audio Mic – 102.73° Horizontal Wide Angle
Key Features :
- High quality image with 6 MP, 1/2.4″ CMOS sensor
- 6MP (3200 × 1800) @ 25/20 fps; 4MP (2560 × 1440) @ 30/25 fps; 3MP (2304 × 1296) @ 30/25 fps; 1080P (1920 × 1080) @ 30/25 fps
- Ultra 265, H.265, H.264, MJPEG
- Supports ultra motion detection
- Supports cross line and intrusion (based on human body detection)
- Built-in mic
- Smart IR, up to 30m (98.4 ft) IR distance
- Warm light, up to 30m (98.4 ft) warm light distance
- MicroSD, up to 512 GB
- IP67 protection
- Supports PoE power supply
- 3-axis
| Camera | ||||||||
| Max Resolution | 6 MP | |||||||
| Sensor | 1/2.4″ CMOS | |||||||
| Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° | |||||||
| S/N | >52 dB | |||||||
| WDR | 120 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.8 mm | |||||||
| Iris Type | Fixed | |||||||
| Iris | F1.6 | |||||||
| Field of View (H) | 102.73° | |||||||
| Field of View (V) | 53.95° | |||||||
| Field of View (D) | 106.97° | |||||||
| Lens Type | Fixed | |||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.8 mm | |||||||
| DORI Distance (Detect) | 63.1 m (207.0 ft) | |||||||
| DORI Distance (Observe) | 25.2 m (82.7 ft) | |||||||
| DORI Distance (Recognize) | 12.6 m (41.3 ft) | |||||||
| DORI Distance (Identify) | 6.3 m (20.7 ft) | |||||||
| Illuminator | ||||||||
| Supplemental Light | Dual light | |||||||
| Illumination Distance (Warm Light) | 30 m (98.4 ft) | |||||||
| Illumination Distance (IR) | 30 m (98.4 ft) | |||||||
| Wavelength | 850 nm | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 6 MP (3200 × 1800), max. 25 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
|||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Support | |||||||
| Video Stream | Dual streams | |||||||
| Image | ||||||||
| Smart Illumination | Support | |||||||
| Smart IR | Support | |||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| Dewarping | N/A | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital defog | |||||||
| Image Stabilization | N/A | |||||||
| Events | ||||||||
| Basic Detection | Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection | |||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | N/A | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
|||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
| Interface | ||||||||
| Audio I/O | N/A | |||||||
| Alarm I/O | N/A | |||||||
| Serial Port | N/A | |||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | N/A | |||||||
| WIFI | N/A | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) | |||||||
| Safety | CE-LVD (EN 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) | |||||||
| General | ||||||||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) | |||||||
| Power Consumption | Max. 5.1 W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | Ø110.5 mm × 98.0 mm (Ø4.4″ × 3.9″) (Ø × H) | |||||||
| Weight | 0.46 kg (1.01 lb) | |||||||
| Material | Metal + Plastic | |||||||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian | |||||||
