ZKTeco U1000E Pro

ZKTeco U1000E Pro Weatherproof Long Distance RFID UHF Controller & Reader For Access Control – 865MHz~868MHz Frequency – Supports Up To 9m Reading Distance – Built-in Two Relays, Wiegand In/Out, TCP/IP

  • ZKTeco UHF1-Tag1

    ZKTeco UHF1-Tag1 Access Control UHF RFID Card/Tag - 860MHz~928MHz Support

This product is currently unavailable.

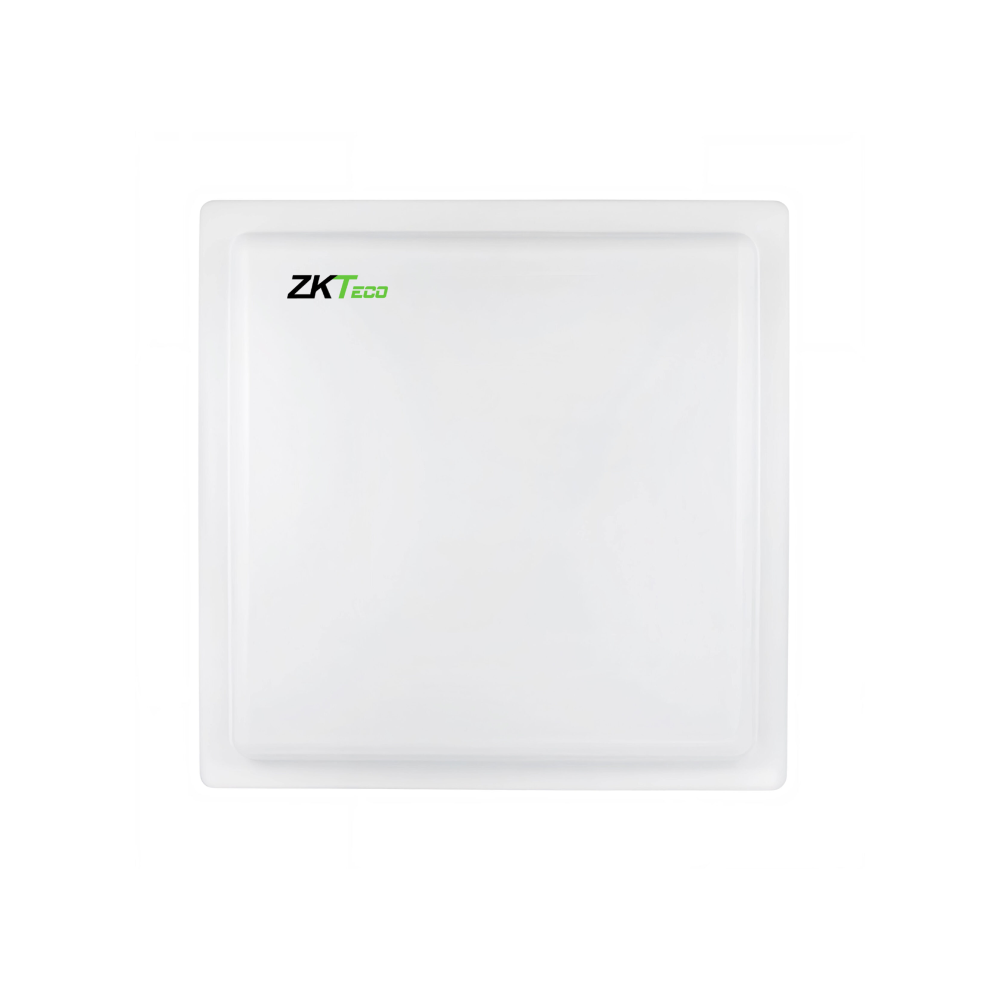

ZKTeco U1000E Pro Weatherproof Long Distance RFID UHF Controller & Reader For Access Control – 865MHz~868MHz Frequency – Supports Up To 9m Reading Distance – Built-in Two Relays, Wiegand In/Out, TCP/IP

U1000E Pro is a long distance RFID access control machine which integrates functions of UHF reader and C3 Pro controller. Compared with UHF readers, it increases access control functions and supports TCP/IP communication, Wiegand in/out which enable easy installation and convenient use. With outstanding long distance identification capability, the machine can be used in many applications including long distance fixed vehicle access management, long distance access control management and long distance pedestrian access management.

Key Features :-

  • Long reading distance up to 9m
  • Access control functions with two relays, 3rd party electric lock, door sensor, exit button
  • Communication: TCP/IP, Wiegand in/out
  • Support ZKBio CVAccess and ZKBio CVSecurity software
  • IP67 protection level certification makes the device suitable for outdoor use

Applications :-

  • Long distance vehicle access control
  • Long distance pedestrian access control



  • Card Capacity: 5000 cards
  • Transactions: 30000
  • Hardware Platform: ZMM220
  • Working Frequency: 865MHz-868MHz
  • Reading Distance: 0 – 9m (Stable is 0 – 5m)
  • Communication: TCP/IP (connect access software) , USB (connect demo)
  • Access Control Interface: Alarm, Door Sensor, Electric Lock, Exit Button, Wiegand In/Out
  • Access Control Functions: Standard access functions, Anti-passback
  • Antenna Gain: 9dBi
  • Output Power: 10dBm-30dBm
  • Maximum Power Consumption: <2W
  • Protection Level: IP67
  • Support Software: ZKBio CVSecurity, ZK BioAccess
  • Working Voltage: DC9V~12V
  • Working Temperature: -20℃-+60℃
  • Working Humidity: <95% (25℃ )
  • Dimension: 309mm * 309mm * 69.5mm
